330130-045-03-05 3300 XL Extension Cable Bently Nevada

Overview

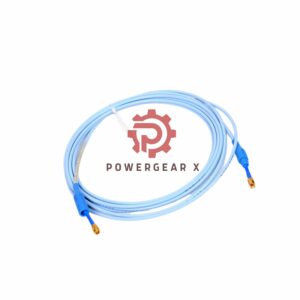

The Bently Nevada 3300 XL Standard Extension Cable (Model: 330130-045-03-05) is a high-quality, reliable component designed to extend connectivity between 8 mm Proximitor Sensors and probes. Manufactured in the U.S.A., it offers robust performance in industrial environments. With a cable length of 4.5 meters (14.8 feet), it includes armored protection and connector sealing for enhanced durability.

This cable incorporates advanced technologies like CableLoc, ensuring a secure attachment with 330 N (75 lbf) pull strength, and an optional FluidLoc feature that prevents leakage of liquids through the cable’s interior. It supports efficient operation across a wide temperature range and is built for compatibility with Bently Nevada 8 mm systems.

Technical Specifications

General Information

• Manufacturer: Bently Nevada
• Model: 330130-045-03-05
• Product Type: Extension Cable
• Origin: Made in U.S.A
• Weight: 0.503 kg

Model Suffix Breakdown

• 045: Cable length of 4.5 meters (14.8 feet)
• 03: Armored cable with connector protector
• 05: Multiple agency approvals

Electrical Specifications

• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Output Resistance: 50 Ω
• Power Supply Requirements:
  • Voltage: -17.5 Vdc to -26 Vdc
  • Current: 12 mA maximum consumption
  • Operation Range: -23 Vdc to -26 Vdc with barriers

Performance Characteristics

• Linear Range: 2 mm (80 mils), starting at approximately 0.25 mm (10 mils) from the target
• Field Wiring:
  • Wire Size: 0.2 to 1.5 mm² (16 to 24 AWG)
  • Maximum Distance: 305 meters (1,000 feet) between Proximitor Sensor and monitor

Environmental Tolerance

• Operating and Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Frequently Asked Questions (FAQ)

1. What does the FluidLoc option provide?
   The FluidLoc feature prevents oil or other liquids from leaking through the cable’s interior, ensuring clean and safe operation.
2. What is the cable’s maximum operating distance?
   It supports a maximum field wiring length of 305 meters (1,000 feet) between the Proximitor Sensor and the monitor.
3. Can this cable withstand extreme temperatures?
   Yes, it operates effectively in temperatures ranging from -51 °C to +177 °C (-60 °F to +351 °F).
4. What approvals are included under the agency option “05”?
   The cable meets multiple safety and performance standards as part of the “05” suffix designation.
5. Is this cable backward-compatible with older Bently Nevada systems?
   It is optimized for 8 mm Proximitor Sensors, but compatibility with older systems can vary and should be confirmed.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
