330130-060-01-00 Bently Nevada | Armored Extension Cable

Overview

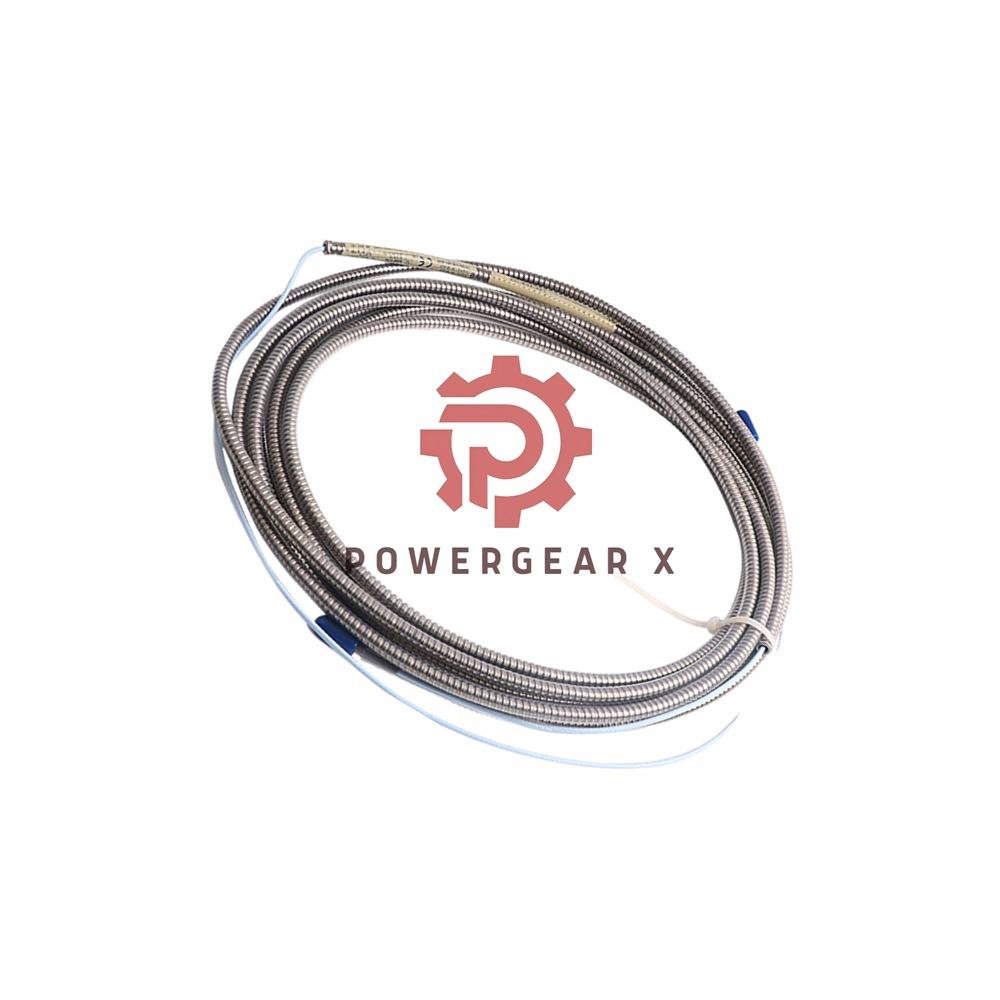

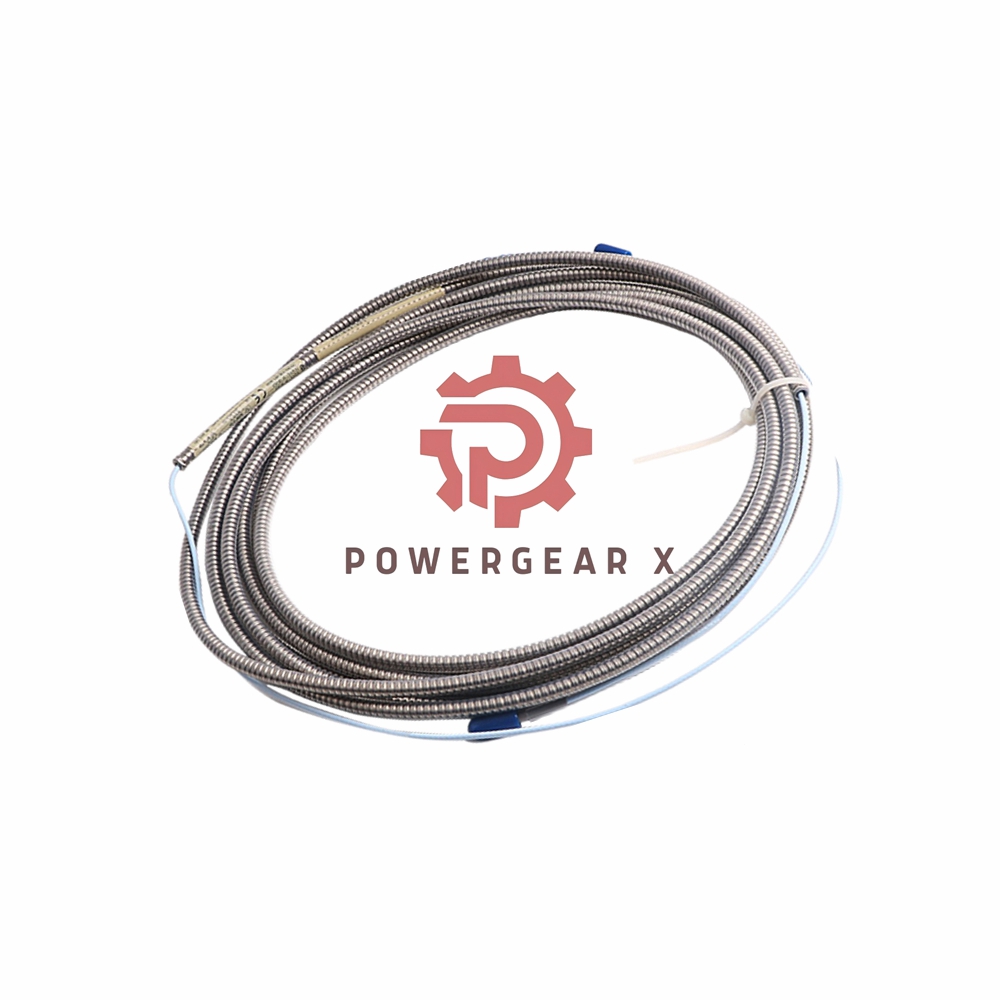

The Bently Nevada 330130-060-01-00 Extension Cable is a premium solution designed for industrial monitoring systems. It is part of the 3300 XL series and ensures compatibility and high performance in vibration measurement applications. With a robust armored design, this extension cable offers durability, precision, and flexibility for various operating environments.

Technical Specifications

The 330130-060-01-00 extension cable is built for reliability and optimal performance. Below is a detailed breakdown of its specifications:

General Details

• Manufacturer: Bently Nevada
• Product Series: 3300 XL
• Model Number: 330130-060-01-00
• Country of Origin (COO): Made in U.S.A.
• 060: Specifies the length of the cable (6.0 meters)
• 01: Refers to the cable type (Armored)
• 00: Indicates approvals (None required)
• Weight: 103 g/m (1.5 oz/ft), total 0.618kg

Electrical Properties

• Nominal DC Resistance:
  • Center Conductor (RCORE): 1.32 ± 0.21 Ω at 6.0 m
  • Outer Conductor (RJACKET): 0.39 ± 0.08 Ω at 6.0 m
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical

Mechanical Features

• Patented CableLoc Design: Ensures a pull strength of 330 N (75 lbf)
• Connector Protection: Silicone tape included as an alternative to protectors
• FluidLoc Option: Available to prevent fluid leakage through the cable

Application-Specific Details

• Operating Voltage:
  • Requires -17.5 Vdc to -26 Vdc
  • Compatible with non-incendive circuits per installation drawing 140979
• Field Wiring Requirements:
  • Shielded triad cable with 0.2 to 1.5 mm² (16 to 24 AWG)
  • Maximum wiring length: 305 meters (1,000 feet)

Frequently Asked Questions (FAQ)

• Q1: What does the FluidLoc option do?
  The FluidLoc option prevents oil and other liquids from leaking through the cable’s interior, increasing its reliability in oil-based environments.
• Q2: Can users apply the silicone tape in all conditions?
  Users should avoid applying silicone tape in turbine oil environments, as it degrades under such conditions.
• Q3: What is the maximum supported length for field wiring?
  The extension cable allows users to run up to 305 meters (1,000 feet) of shielded triad wiring.
• Q4: Does this cable work with all Bently Nevada 3300 XL Proximitor systems?
  The 330130-060-01-00 cable integrates seamlessly with 3300 XL Proximitor sensors and probes.
• Q5: What makes the CableLoc design unique?
  The patented CableLoc design enhances the cable’s pull strength to 330 N (75 lbf), ensuring a secure connection and extended durability.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
