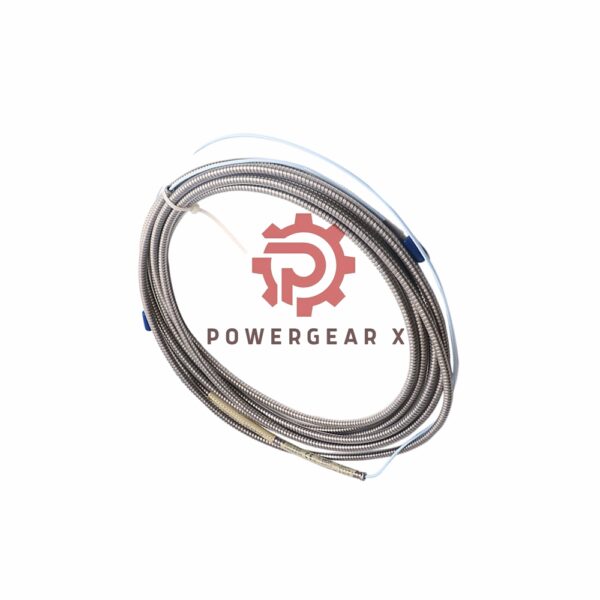

330130-060-01-05 Bently Nevada | Armored Extension Cable

Overview:

The Bently Nevada 330130-060-01-05 Extension Cable is an integral part of the 3300 XL system. This high-quality cable is engineered to ensure reliability in demanding industrial environments, offering robust protection and enhanced performance. With CSA, ATEX, and IECEx approvals, it meets global safety standards, making it suitable for hazardous locations.

Key Features and Specifications:

• Brand: Bently Nevada
• Model: 330130-060-01-05
  • Suffix Breakdown:
    • 060: Cable length of 6.0 meters (19.7 feet)
    • 01: Armored cable option
    • 05: Includes CSA, ATEX, and IECEx approvals
• Country of Origin: Made in the U.S.A. (Certificate of Origin available upon request)
• Weight: 0.618 kg (103 g/m , 1.5 oz/ft)

Electrical Properties:

• Extension Cable DC Resistance:
  • Center to Center (RCORE): 1.32 ± 0.21 Ω (for 6.0 m)
  • Outer to Outer (RJACKET): 0.39 ± 0.08 Ω (for 6.0 m)
• Capacitance: 69.9 pF/m (21.3 pF/ft), typical

Operating Requirements:

• Power Supply:
  • Requires -17.5 Vdc to -26 Vdc
  • Non-incendive circuit installation per Drawing 140979
  • Consumes 12 mA maximum at -23 Vdc to -26 Vdc
• Field Wiring:
  • 0.2–1.5 mm² (16–24 AWG)
  • Maximum length of 305 m (1,000 ft) from Proximitor Sensor to the monitor

Structural and Environmental Details:

• Linear Range:
  • 2 mm (80 mils) linear range starting at approximately 0.25 mm (10 mils)
• Materials and Durability:
  • Features a patented CableLoc design ensuring 330 N (75 lbf) pull strength
  • Optional FluidLoc technology prevents leakage of oil and liquids
• Connector Protection:
  • Includes silicone tape for environments free of turbine oil

FAQs:

1. What is the purpose of the FluidLoc option?
   • It prevents fluids from leaking through the interior of the cable, enhancing reliability in oil-exposed conditions.
2. Can the extension cable be used in hazardous areas?
   • Yes, with CSA, ATEX, and IECEx approvals, it is suitable for use in hazardous zones.
3. What type of wiring is recommended?
   • A 3-conductor shielded triad cable with tinned field wiring is recommended for optimal performance.
4. How does the CableLoc feature improve performance?
   • It provides superior pull strength, ensuring a secure bond between the probe and cable.
5. What is the typical capacitance of the cable?
   • The capacitance is 69.9 pF/m, ensuring signal integrity over long distances.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
