330130-060-12-00 Bently Nevada | FluidLoc Extension Cable

Overview

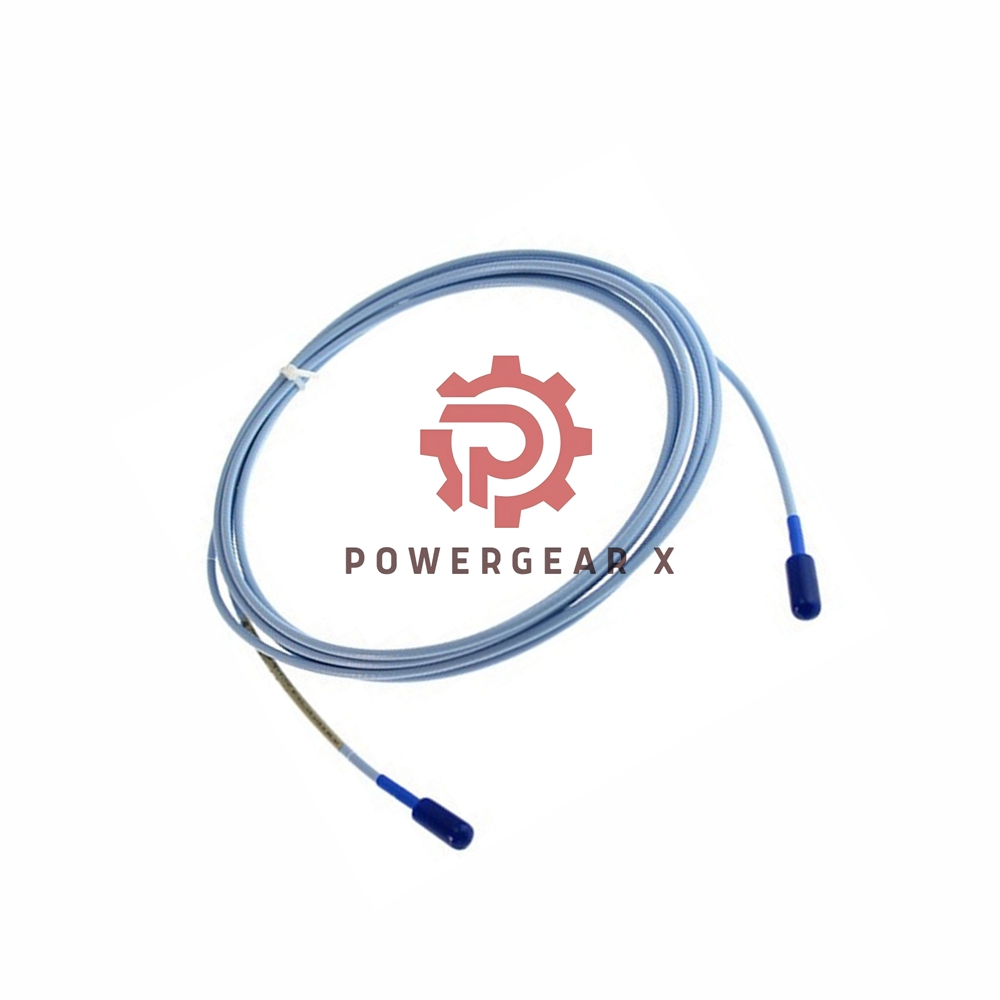

The Bently Nevada 330130-060-12-00 extension cable is designed for enhanced system performance in dynamic environments. Manufactured in the U.S.A., this cable option features a length of 6.0 meters (19.7 feet) and includes a connector protector for reliable use. It utilizes patented technology to ensure robust durability and efficiency. Additionally, a Certificate of Origin (COO) can be provided with this product.

Technical Specifications

• Manufacturer: Bently Nevada
• Model Number: 330130-060-12-00
• Product Type: Extension Cable
• Country of Origin: U.S.A.
• Cable Length Option: 060 (6.0 meters)
• Connector Protector Option: 12 FluidLoc cable with connector protector
• Approvals Required: None (00)
• Weight: 0.204 kg (34 g/m or 0.4 oz/ft)

Electrical Characteristics

• DC Resistance:
  • RCORE (Ω):
    • 6.0 m: 1.32 ± 0.21
  • RJACKET (Ω):
    • 6.0 m: 0.39 ± 0.08
• Capacitance:
  • 69.9 pF/m (21.3 pF/ft) typical
• Output Resistance:
  • 50 Ω
• Power Requirements:
  • Requires -17.5 Vdc to -26 Vdc (at 12 mA maximum)
  • Use -23 Vdc to -26 Vdc with barriers for operational safety

Installation Guidelines

• Field Wiring Recommendations:
  • Use 3 conductor shielded triad cable
  • Suitable wire gauge: 0.2 to 1.5 mm² (16 to 24 AWG)
  • Maximum field wiring length: 305 meters (1,000 feet)

Performance Characteristics

• Linear Range:
  • From 0.25 mm (10 mils) to 2 mm (80 mils)
  • Begins at approximately 0.25 mm from the target
• Sensitivity:
  • Less than 2 mV change in output voltage per volt change in input voltage.

FAQ

• Q: What is the advantage of using the FluidLoc option?
  A: The FluidLoc option helps prevent oil and other liquids from leaking through the cable, ensuring better reliability in various applications.
• Q: Can I use silicone tape instead of the connector protector?
  A: Yes, silicone tape is included, but it is not recommended for turbine oil applications due to potential failure under high temperatures.
• Q: What environmental conditions affect performance?
  A: Performance characteristics apply between +18°C and +27°C (+64°F to +80°F) at a maximum altitude of 2000 meters.
• Q: What is the significance of the DC resistance values?
  A: The resistance values indicate the conductivity and efficiency of the extension cable, which influences signal integrity.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
