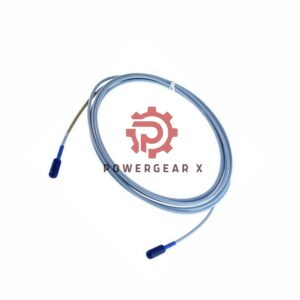

330130-060-12-05 Bently Nevada | FluidLoc Extension Cable

Overview

The Bently Nevada 330130-060-12-05 extension cable is designed for 3300 XL series proximity probes. It provides a robust connection between sensors and monitoring systems, ensuring durability and reliable performance. Manufactured in the U.S.A, it includes the option for a Certificate of Origin (COO). This high-performance cable supports critical industrial applications, offering essential approvals and advanced features like FluidLoc cable for enhanced protection against liquid leakage.

Technical Specifications:

• Manufacturer: Bently Nevada
• Model Number: 330130-060-12-05
• Cable Length: 6.0 meters (19.7 feet)
• Connector Option: FluidLoc cable with connector protector (pre-installed)
• Approvals: CSA, ATEX, IECEx
• Weight:
  • 34 g/m (0.4 oz/ft)
  • 0.204 kg (0.45 lbs) per meter
• Cable Construction: 12 FluidLoc cable for fluid protection
• Resistance Values:
  • RCORE (Center Conductor to Center Conductor):
    • 6.0m: 1.32 ± 0.21 Ω
  • RJACKET (Outer Conductor to Outer Conductor):
    • 6.0m: 0.39 ± 0.08 Ω
• Capacitance: 69.9 pF/m (21.3 pF/ft), typical
• Power Supply: -17.5 Vdc to -26 Vdc (maximum)
• Field Wiring: Suitable for 0.2 to 1.5 mm² (16 to 24 AWG) cables. Use of 3-conductor shielded triad cable recommended for optimal signal integrity.
• Linear Range: 0.25 mm (10 mils) to 2 mm (80 mils), with a maximum gap of 1.27 mm (50 mils) from the AISI 4140 steel target.
• Resistance at Output: 50 Ω

FAQ:

• Q: What is the maximum cable length for the 3300 XL extension cable?
  • A: The maximum recommended length is 305 meters (1,000 feet) between the 3300 XL probe and the monitoring system.
• Q: Is the extension cable compatible with all Bently Nevada probes?
  • A: Yes, this extension cable is designed for 3300 XL series proximity probes, ensuring compatibility for most industrial monitoring systems.
• Q: Can I use the silicone tape instead of a connector protector?
  • A: Silicone tape can be used but is not recommended for applications involving turbine oil exposure due to potential leakage.
• Q: How does the FluidLoc cable option work?
  • A: The FluidLoc option prevents oil or other fluids from leaking out through the cable, making it ideal for environments where fluid protection is critical.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
