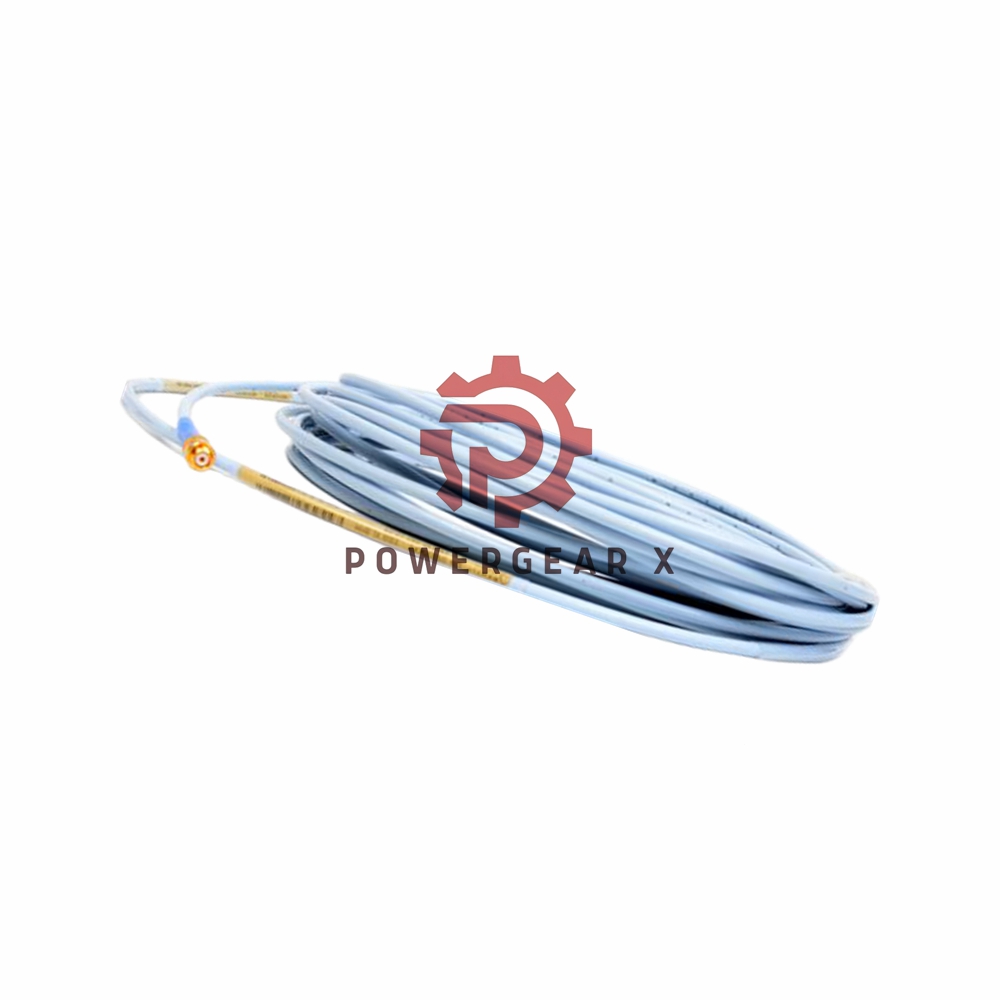

330130-070-12-00 | Bently Nevada | FluidLoc Extension Cable

Overview

The Bently Nevada 330130-070-12-00 extension cable, made in the U.S.A, is designed to support the connection between the 3300 XL probe and the system. This high-quality extension cable offers a reliable solution for system installations in various industrial applications. It comes with a FluidLoc cable option for added protection against fluids and environmental factors.

Product Specifications

• Manufacturer: Bently Nevada
• Model Number: 330130-070-12-00
• Product Type: Extension Cable
• Made in: U.S.A
• Certificate of Origin: Available upon request
• Cable Length: 7.0 meters (22.9 feet)
• Cable Option: 12 FluidLoc cable with connector protector
• Weight: 0.238 kg (34 g/m or 0.4 oz/ft)
• Approvals: None required

Electrical Resistance:

• Nominal DC Resistance (RCORE):
  • Length: 7.0 m
  • Resistance: 1.54 ± 0.23 Ω (center conductor to center conductor)
• Nominal DC Resistance (RJACKET):
  • Length: 7.0 m
  • Resistance: 0.46 ± 0.09 Ω (outer conductor to outer conductor)

Power & Supply:

• Power Supply:
  • Requires -17.5 Vdc to -26 Vdc with non-incendive circuit (12 mA max consumption)
  • -23 Vdc to -26 Vdc with barriers
  • Operation beyond -23.5 Vdc may reduce linear range
• Sensitivity:
  • Less than 2 mV change in output voltage per volt change in input voltage
• Output Resistance: 50 Ω

Extension Cable:

• Capacitance:
  • 69.9 pF/m (21.3 pF/ft) typical
• Field Wiring:
  • 0.2 to 1.5 mm² (16 to 24 AWG)
  • Recommended: 3-conductor shielded triad cable with tinned field wiring
  • Max field wiring length: 305 meters (1,000 feet)
• Linear Range:
  • 2 mm (80 mils)
  • Range starts from approximately 0.25 mm (10 mils) to 2.3 mm (90 mils) from target, covering -1 to -17 Vdc

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
