330130-075-02-00 Bently Nevada | Standard Extension Cable

Overview

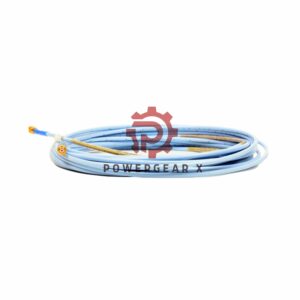

The Bently Nevada 330130-075-02-00 Extension Cable can provide superior performance and durability for use in industrial vibration monitoring systems. Manufactured in the U.S.A., this cable is compatible with the 3300 XL 8 mm Proximitor Sensor and associated probes. Offering robust construction and advanced design features like the Connector Protector and optional FluidLoc technology, it ensures reliable operation even in harsh conditions.

Technical Specifications

• Brand: Bently Nevada
• Model: 330130-075-02-00
• Cable Length: 7.5 meters (24.6 feet)
• Connector Protector: Standard cable with a connector protector (Option 02)
• Approvals: Not required (Option 00)
• Weight:
  • 34 g/m (0.4 oz/ft), total 0.255 kg
• DC Resistance:
  • Center Conductor (RCORE): 1.65 ± 0.25 Ω at 7.5 meters
  • Outer Conductor (RJACKET): 0.49 ± 0.10 Ω at 7.5 meters
• Capacitance: 69.9 pF/m (21.3 pF/ft), typical
• Linear Range: 2 mm (80 mils), from 0.25 mm to 2.3 mm (10 to 90 mils)
• Power Requirements:
  • Voltage: -17.5 Vdc to -26 Vdc
  • Current: Maximum 12 mA consumption
• Field Wiring:
  • Size: 0.2 to 1.5 mm² (16 to 24 AWG)
  • Maximum Length: 305 meters (1,000 feet)
• Construction: Includes silicone tape as an alternative to the connector protector. Silicone tape is not recommended for use in environments exposed to turbine oil.

FAQs

What is the significance of the part number suffix?

• 330130-075-02-00:
• 075 refers to the cable length (7.5 meters).
• 02 specifies the standard cable with connector protector.
• 00 indicates no specific approvals required.

Is the extension cable compatible with other sensor systems?

• This cable is optimized for use with Bently Nevada 3300 XL 8 mm systems. Compatibility with other systems is not guaranteed.

What approvals are available for this model?

• The current configuration does not include additional approvals (Option 00).

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
