330130-080-00-CN | Bently Nevada | Standard Extension Cable

Overview

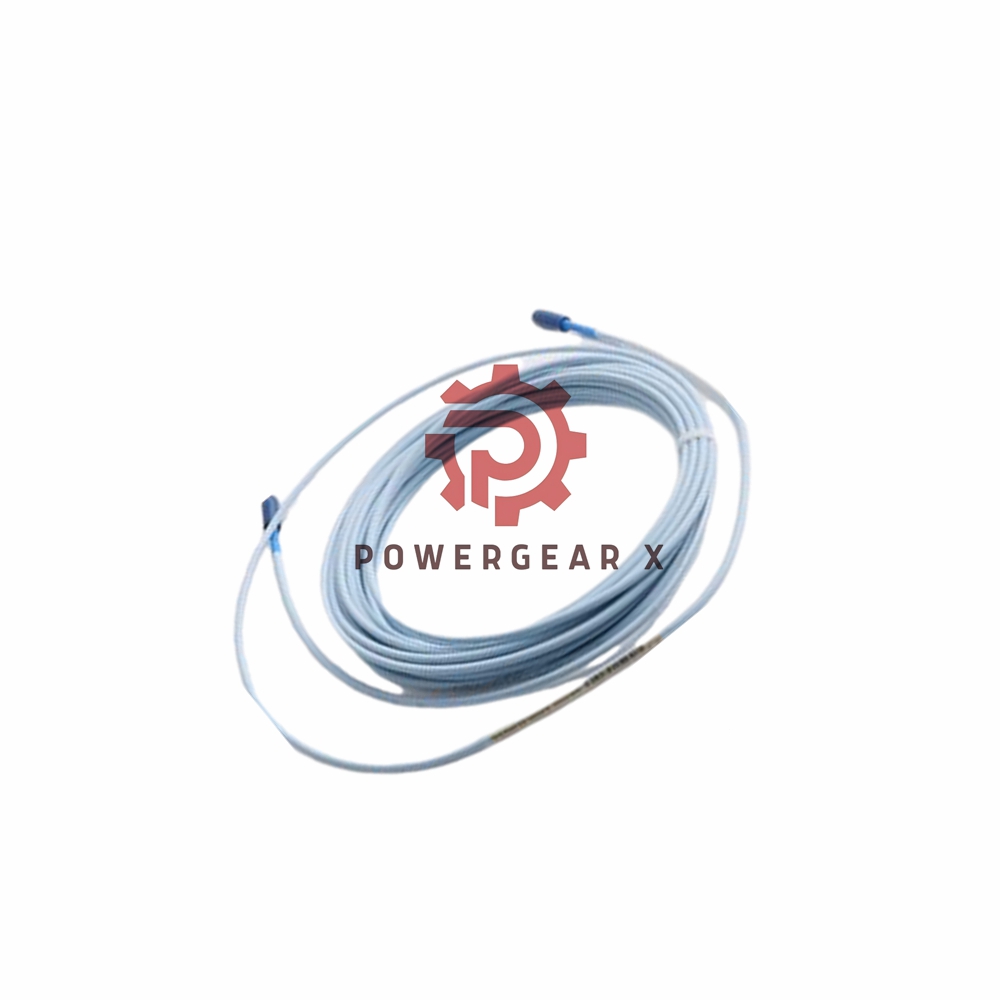

The Bently Nevada 3300 XL Standard Extension Cable, part number 330130-080-00-CN, is engineered for use with the 3300 XL series probes, offering an enhanced design and superior performance. Made in the U.S.A., this cable is available with a length of 8.0 meters (26.2 feet), making it ideal for a wide range of industrial applications. It features a triaxial, fluoroethylene propylene (FEP) insulated cable that ensures durability and high-performance signal transmission.

Technical Specifications:

• Cable Type: 3300 XL Standard Extension Cable (Product No. 330130-080-00-CN)
• Cable Material: FEP insulated, triaxial, 75-ohm cable
• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Power Supply: -17.5 Vdc to -26 Vdc for optimal performance
• Cable Length: 8.0 meters (26.2 feet), with a maximum reach of 305 meters (1,000 feet)
• Maximum Altitude: 2000 meters
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)
• Extension Cable Weight: 0.89 kg
• Temperature Range: +18°C to +27°C (+64°F to +80°F)
• Connector Option: Standard cable (00)

Performance Characteristics:

• The 3300 XL extension cable, when paired with the 3300 XL probe, is designed to maintain high accuracy, especially in systems calibrated to an AISI 4140 steel target.
• It operates effectively within a linear range of 0.25 mm (10 mils) to 2.3 mm (90 mils).
• The cable also features a patented CableLoc design for increased pull strength (330 N or 75 lbf), ensuring secure attachment between the probe tip and cable.

Optional FluidLoc Cable:

For applications where leakage prevention is critical, an optional FluidLoc cable is available. This feature prevents fluids such as oil from leaking through the cable, ensuring better machine protection and system integrity.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
