330130-080-02-05 Bently Nevada | 3300 XL Extension Cable

Overview

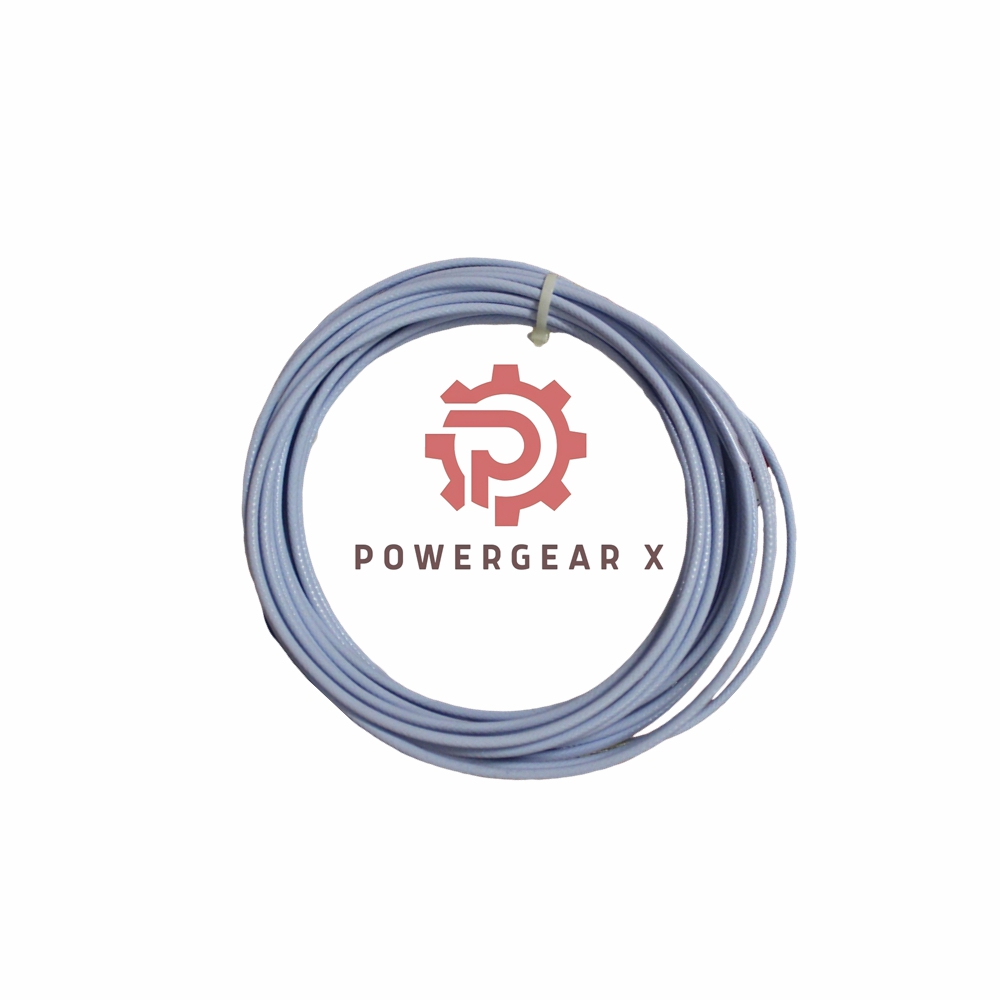

The Bently Nevada 3300 XL 8 mm Extension Cable (Part No. 330130-080-02-05) is a premium solution engineered for seamless integration with the 3300 XL Proximitor System. Its robust construction and advanced design ensure reliable signal transmission, even in demanding industrial environments. Enhanced with patented TipLoc and CableLoc technologies, this extension cable delivers superior durability, pull strength, and resistance to harsh conditions. Optional FluidLoc technology can be included for liquid prevention, making it ideal for applications requiring high precision and dependability.

Technical Specifications

Brand: Bently Nevada
Model: 330130-080-02-05

Part Number Suffix Breakdown:

• 080: Cable Length = 8.0 meters (26.2 feet)
• 02: Standard cable with connector protectors
• 05: CSA, ATEX, IECEx Approvals

Cable Material:

• 75 Ω triaxial cable with fluoroethylene propylene (FEP) insulation

Electrical Specifications:

• Capacitance: 69.9 pF/m (21.3 pF/ft) typical
• Power Requirements: -17.5 Vdc to -26 Vdc (-23 Vdc to -26 Vdc with barriers)
• Output Resistance: 50 Ω
• Field Wiring: Supports 0.2 to 1.5 mm² (16 to 24 AWG), with a maximum length of 305 meters (1,000 feet)

Mechanical Features:

• Weight: 0.89 kg
• Linear Range: 2 mm (80 mils), beginning at 0.25 mm (10 mils) from the target

Environmental Conditions:

• Operating temperature: +18°C to +27°C (+64°F to +80°F)
• Maximum altitude: 2,000 meters

FAQ

1. What does the “080” in the part number signify?
   It indicates the cable length, which is 8.0 meters (26.2 feet).
2. What is the significance of the “02” in the part number?
   It denotes the standard cable design with connector protectors.
3. What is the purpose of FluidLoc technology?
   FluidLoc prevents oil or liquids from traveling through the interior of the cable, ensuring system integrity.
4. Is it compatible with all Bently Nevada systems?
   It is specifically designed for use with the Bently Nevada 3300 XL Probes and Proximitor Sensors.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
