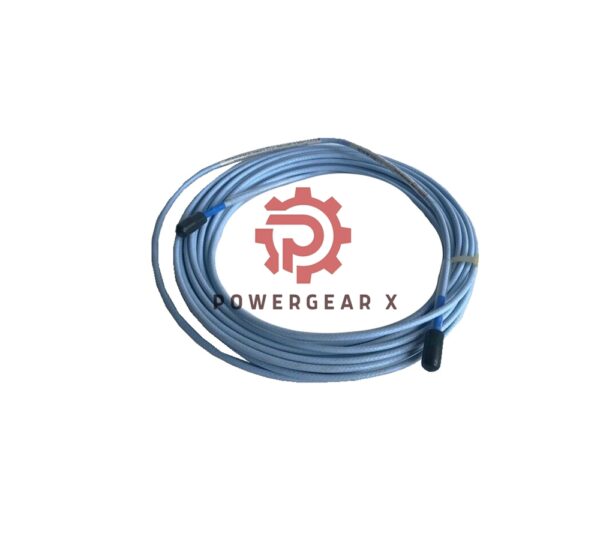

330130-080-03-CN Bently Nevada | 3300 XL Extension Cable

Overview:

The Bently Nevada 3300 XL Standard Extension Cable (Part No. 330130-080-03-CN) is designed for use with the 3300 XL series proximity probes. Made in the USA, this robust cable provides enhanced performance with features like the TipLoc molding method and the CableLoc design for secure attachment. It is ideal for industrial applications requiring precise vibration monitoring and machinery protection.

Features:

• Robust Construction: Patented TipLoc molding ensures a stronger bond between the probe tip and body.
• Pull Strength: Incorporates the CableLoc design for 330 N (75 lbf) pull strength.
• FluidLoc Option: Prevents leakage of oils and other fluids, providing added protection in harsh environments.
• Silicone Tape Alternative: Includes silicone tape to protect connections (not recommended for turbine oil exposure).
• Connector Protection: Features armored cable with connector protectors for extra durability.

Technical Specifications:

• Manufacturer: Bently Nevada
• Model: 330130-080-03-CN
• Product Type: 3300 XL Standard Extension Cable
• Cable Length: 8 meters (26.2 feet)
• Cable Construction: 75Ω triaxial, FEP insulated for standard cable; PFA insulated for extended temperature range cable.
• Temperature Range: -52°C to +177°C (-62°F to +350°F) for standard cable; -52°C to +260°C (-62°F to +500°F) for extended temperature range cable.
• Connector Material: Gold-plated brass or gold-plated beryllium copper.
• Maximum Connector Torque: 0.565 N•m (5 in•lbf)
• Minimum Cable Bend Radius: 25.4 mm (1.0 in)
• Cable Weight: 34 g/m (0.4 oz/ft)
• Power Supply: Requires -17.5 Vdc to -26 Vdc (with non-incendive circuit) and consumes 12 mA max.
• Resistance: 50 Ω
• Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.

FAQ:

1. What is the maximum cable length available for this extension cable?
   • The maximum cable length available is 8 meters (26.2 feet).
2. Can I use this cable in high-temperature environments?
   • Yes, an extended temperature range cable option is available, suitable for temperatures up to 260°C (500°F).
3. Is this cable suitable for use in oil-filled environments?
   • The FluidLoc option prevents liquids from leaking through the cable, making it suitable for such applications.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
