330130-080-13-05 Bently Nevada | Armored FluidLoc Cable

Overview

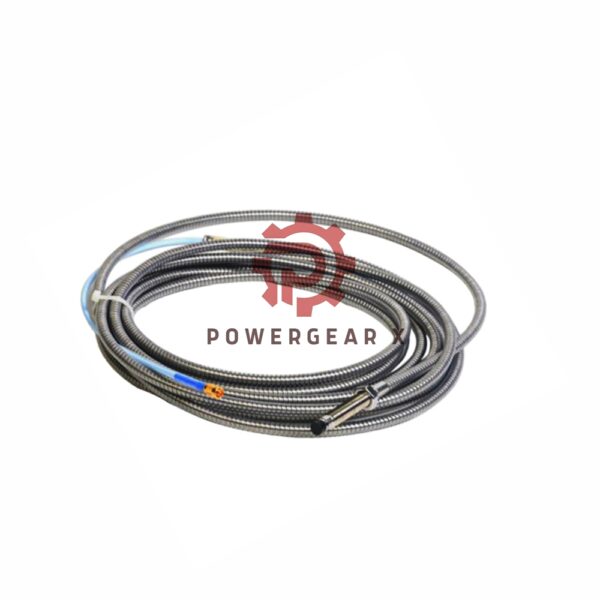

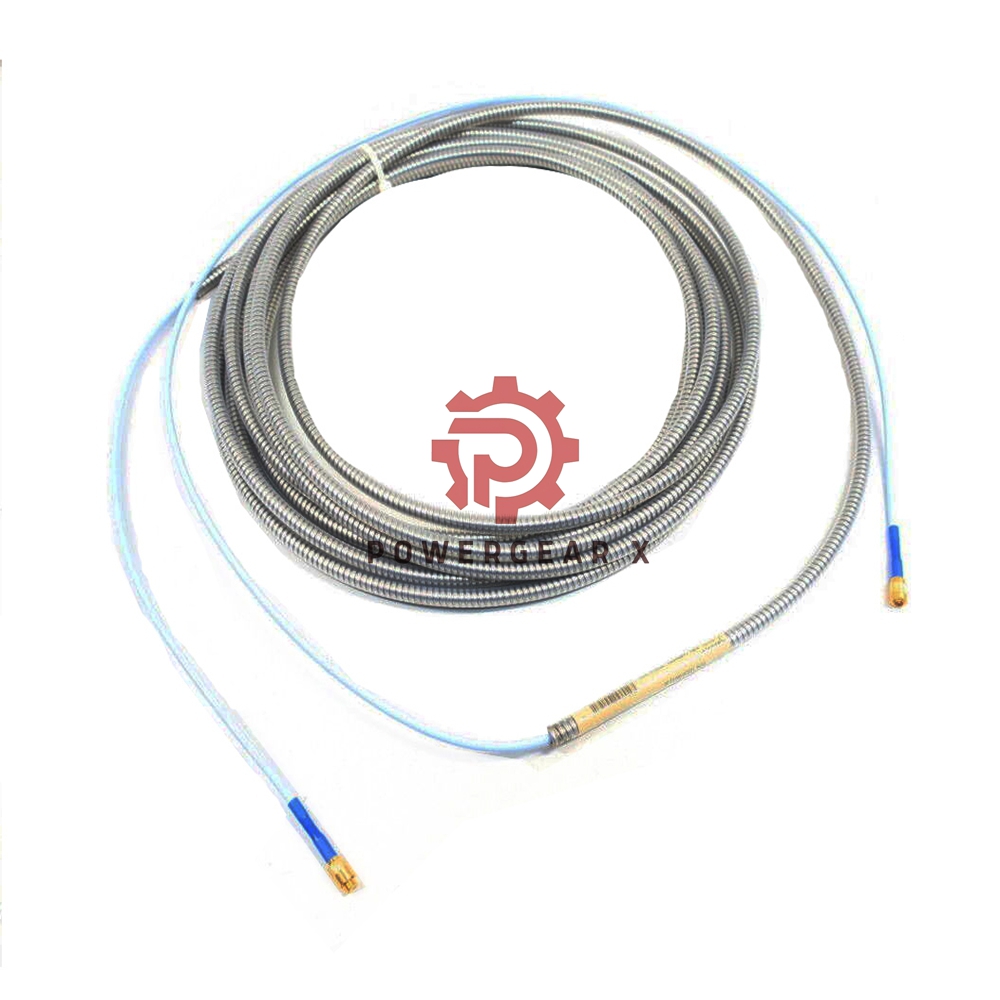

The Bently Nevada 330130-080-13-05 Extension Cable is designed for the 3300 XL Proximity Sensor and is engineered for reliability in industrial environments. This extension cable offers a length of 8.0 meters (26.2 feet) and includes both connector protectors and an optional FluidLoc cable option. It ensures a robust, secure connection and can handle various industrial conditions. With ATEX, IECEx, and CSA approvals, this cable meets stringent standards for safety and performance.

Key Features:

• Made in U.S.A
• Certificate of Origin (COO) can be added on request
• Cable Length Option: 8.0 meters (26.2 feet)
• Connector Protector: Includes Armored FluidLoc option for enhanced durability
• Approvals: CSA, ATEX, IECEx certified
• Weight: 103 g/m (1.5 oz/ft)
• Total Weight: 0.824 kg (0.6 lbs)

Cable Specifications:

• Nominal DC Resistance (RCORE):
  • 8.0 m: 1.76 ± 0.26 Ω (center conductor to center conductor)
• Nominal DC Resistance (RJACKET):
  • 8.0 m: 0.53 ± 0.11 Ω (outer conductor to outer conductor)
• Capacitance:
  • 69.9 pF/m (21.3 pF/ft) typical
• Power Requirements:
  • Requires -17.5 Vdc to -26 Vdc with non-incendive circuit
  • Maximum consumption: 12 mA
  • Operating range: -23 Vdc to -26 Vdc with barriers
  • Operation above -23.5 Vdc may reduce the linear range

Connector & Cable Options:

• Armored FluidLoc: Prevents oil and liquid leaks within the cable
• Silicone Tape: Alternative to connector protectors (not recommended for turbine oil exposure)

Linear Range:

• 2 mm (80 mils)
• Begins at approximately 0.25 mm (10 mils) from target
• Full linear range: 0.25 to 2.3 mm (10 to 90 mils)

Performance Characteristics:

• Designed for a system consisting solely of 3300 XL components
• Calibration applies to AISI 4140 steel target
• Not applicable for systems calibrated to other targets

Installation Requirements:

• Field Wiring:
  • Recommended wire size: 0.2 to 1.5 mm² (16 to 24 AWG)
  • Use shielded triad cable and tinned field wiring
  • Maximum cable length: 305 meters (1,000 feet)
  • Signal roll-off at high frequencies for longer lengths

FAQ

Q: Can I use silicone tape as a connector protector?
A: Yes, silicone tape is included with the extension cable, but it’s not recommended for applications exposed to turbine oil.

Q: What is the maximum allowable cable length for field wiring?
A: The maximum field wiring length is 305 meters (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor.

Q: Does this extension cable include any safety certifications?
A: Yes, the 330130-080-13-05 Extension Cable is CSA, ATEX, and IECEx approved for safety in hazardous environments.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
