330130-085-12-00 Bently Nevada | Extension Cable

Overview

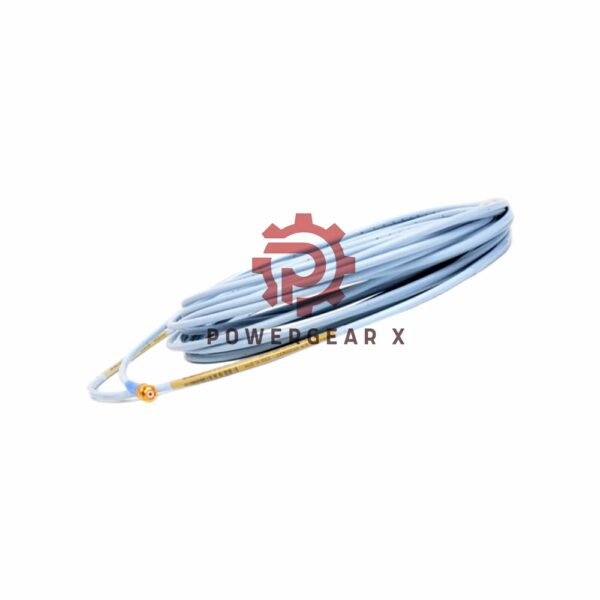

The Bently Nevada 330130-085-12-00 is a high-performance extension cable designed for use with the 3300 XL Proximitor Sensor. Manufactured in the U.S.A., this extension cable is suitable for challenging industrial environments and features advanced technology for enhanced reliability.

Technical Specifications

• Manufacturer: Bently Nevada
• Product Number: 330130-085-12-00
• Product Type: Extension Cable
• Country of Origin: U.S.A.
• Cable Length: 8.5 meters (27.9 feet)
• Connector Protector and Cable Option: 12 FluidLoc cable with connector protector
• Approvals: None Required
• Weight: 0.289 kg (34 g/m) / 0.824 kg (103 g/m)
• DC Resistance:
  • RCORE (Center Conductor to Center Conductor): 1.87 ± 0.28 Ω for 8.5 m
  • RJACKET (Outer Conductor to Outer Conductor): 0.56 ± 0.11 Ω for 8.5 m
• Operating Temperature: +18˚C to +27˚C (+64˚F to +80˚F)
• Power Supply Requirements: -17.5 Vdc to -26 Vdc; -23 Vdc to -26 Vdc with barriers.
• Output Resistance: 50 Ω
• Capacitance: 69.9 pF/m (21.3 pF/ft)
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG); recommended 3 conductor shielded triad cable.
• Maximum Field Wiring Length: 305 meters (1,000 feet)

FAQs

1. What is the purpose of the Bently Nevada extension cable?
The extension cable is designed to connect the 3300 XL Proximitor Sensor to monitoring systems, allowing for effective vibration monitoring in industrial applications.

3. What are the resistance specifications?
The resistance between conductors provides reliable measurement, with RCORE at 1.87 ± 0.28 Ω and RJACKET at 0.56 ± 0.11 Ω.

4. What types of field wiring are compatible?
The cable supports field wiring from 0.2 to 1.5 mm² (16 to 24 AWG), recommending a 3 conductor shielded triad for optimal performance.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
