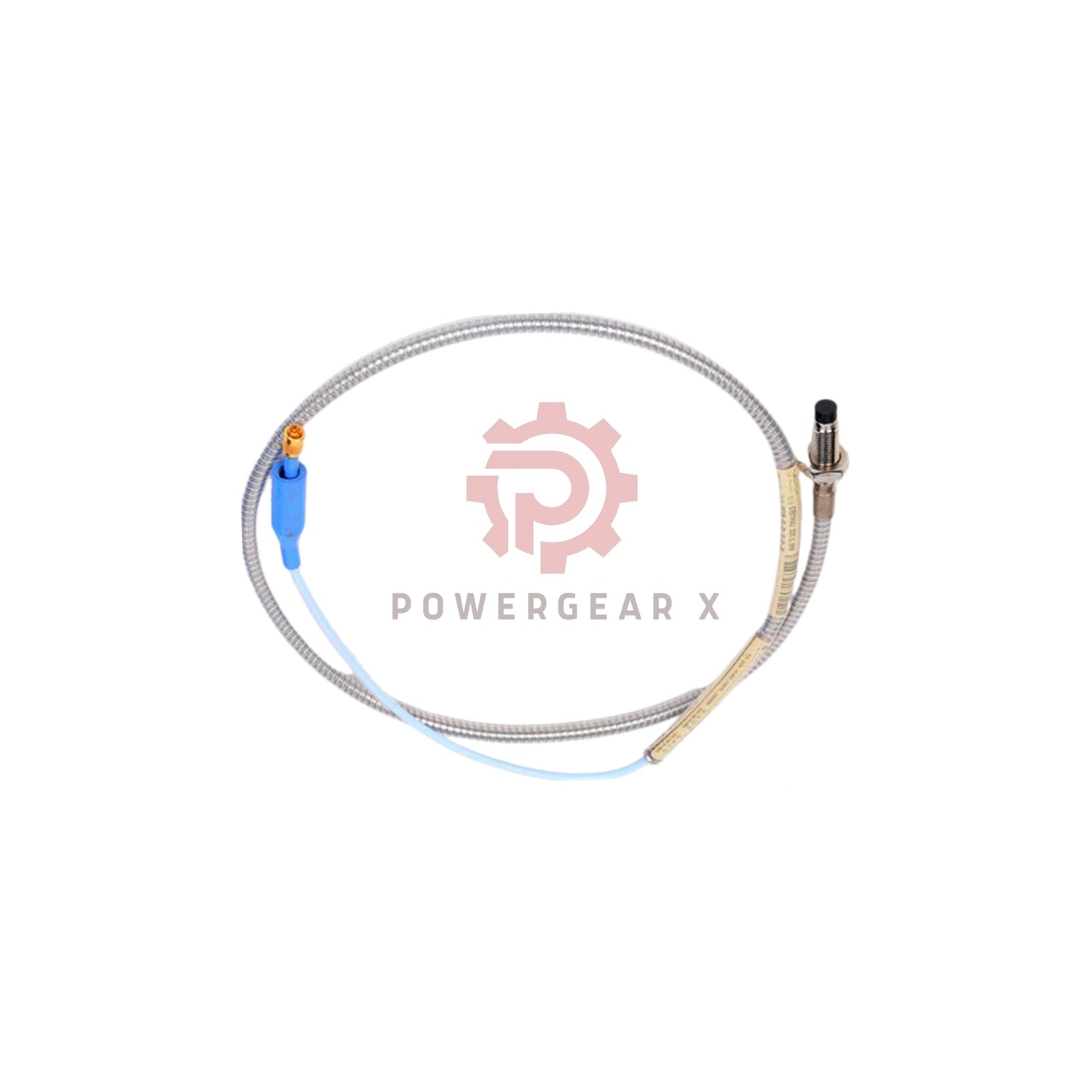

330140-10-20-01-05 | Bently Nevada | 3300 XL 8 mm Proximity Probe

Overview

Bently Nevada offers two distinct 3300 XL 8 mm probes. The 330140 – 10 – 20 – 01 – 05 is a non – armored probe, while the 330141 comes with armor. Both are made in the U.S.A, and customers can obtain a Certificate Of Origin. These probes are engineered with advanced technologies for improved performance and durability.

Technical Specification

• • Brand: Bently Nevada
  • Model: 330140 – 10 – 20 – 01 – 05
    • Overall Case Length: 1.0 inch
    • Total Length: 2.0 meters (6.6 feet)
    • Connector and Cable: Miniature coaxial ClickLoc connector with connector protector, standard cable
    • Agency Approval: CSA, ATEX, IECEx Approvals
• Temperature Range:
  • Extended temperature range probe: – 52°C to +218°C (- 62°F to +425°F) for the probe tip; – 51°C to +260°C (- 60°F to +500°F) for the probe cable and connector. Exposure below –34˚C (- 30˚F) may lead to premature pressure – seal failure.
• Pressure: Designed to seal differential pressure between the tip and case using a Viton® O – ring.
• Weight: 323 g/m (11.4 oz)
• Incremental Scale Factor (ISF):
  • In a standard 5 or 1 – meter system, it is 7.87 V/mm (200 mV/mil) ± 5% considering interchangeability error within the 80 – mil linear range from 0°C to +45°C.

Contact Information

For any inquiries regarding this product, please contact [email protected]

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
