330180-50-00 Bently Nevada | 3300 XL Proximitor Sensor

Overview

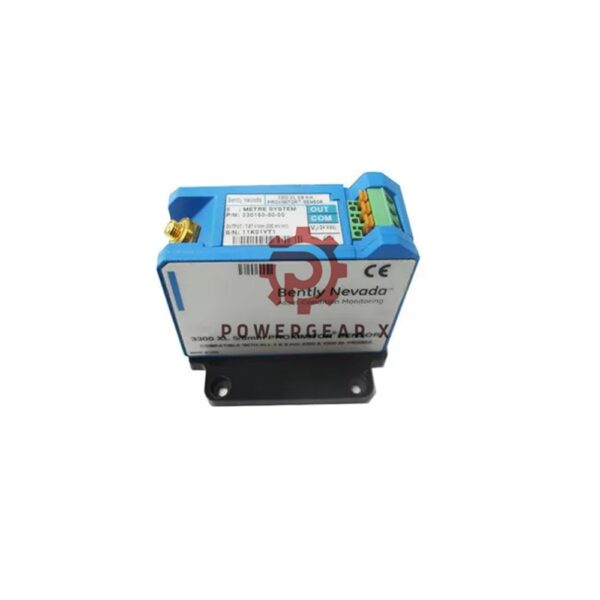

The Bently Nevada 3300 XL Proximitor Sensor, with part number 330180-50-00, is a high-precision measurement device designed for monitoring the position and vibration of rotating machinery. Developed by Bently Nevada, a leader in condition monitoring systems, this sensor ensures reliable performance in demanding industrial applications. Made in the USA, it features a total system length of 5.0 meters (16.4 feet) and is intended for panel mounting.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL Proximitor Sensor
• Part Number: 330180-50-00
• Country of Manufacture: United States (USA)
• Application: Used for static (position) and dynamic (vibration) measurements, specifically on fluid-film bearing machines and for Keyphasor reference and speed measurement.
• Power Supply: -24 Vdc with a 10 k load
• Probe Gap: 1.27 mm (50 mils)
• Operating Temperature: Between +18 and +27 °C

Application:

Ideal for use in industries where fluid-film bearings are prevalent, such as turbines and compressors. The 3300 XL Proximitor sensor excels in providing reliable measurements for vibration and positional accuracy.

Frequently Asked Questions:

1. What is the power supply requirement for the Bently Nevada 3300 XL?
2. The sensor requires a -24 Vdc power supply with a 10 kΩ load.
3. What is the probe gap for this model?
4. The probe gap is 1.27 mm (50 mils), ensuring accurate measurement in various setups.
5. Can this sensor be used in extreme temperatures?
6. It is designed for operation between +18°C and +27°C.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
