330190-035-00-00 Bently Nevada | ETR Extension Cable

Overview

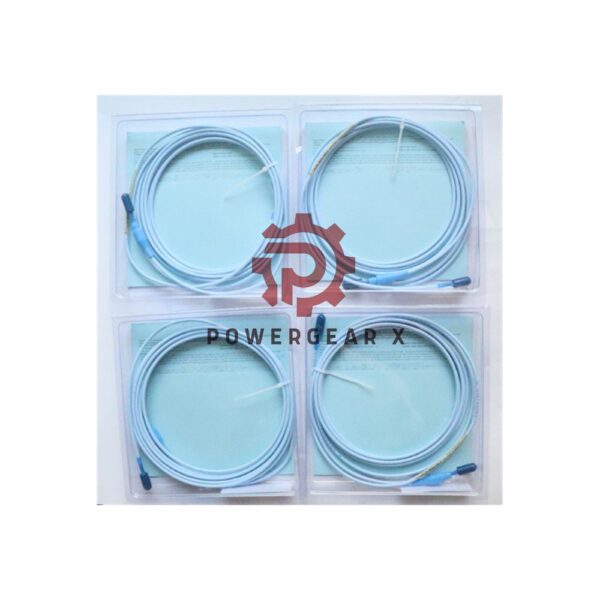

The Bently Nevada 3300 XL 8mm Extension Cable, part number 330190-035-00-00, is designed for industrial applications requiring robust, high-temperature performance. Manufactured in the USA, this cable features an advanced construction with a fluoroethylene propylene (FEP) insulated 75Ω triaxial cable. It is ideal for use in high-heat environments with an extended operating range for both the probe tip and cable.

Specifications:

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Probe Extension Cable
• Part Number: 330190-035-00-00
• Power Requirements: -17.5 Vdc to -26 Vdc, with a maximum current consumption of 12 mA.
• Cable Length: 3.5 meters (13.1 feet)
• Cable Material: 75Ω triaxial, fluoroethylene propylene (FEP) insulated
• Agency Approval: None required for this model
• Probe Tip Material: Polyphenylene sulfide (PPS)

FAQs:

• Q: What is the length of the cable?
  A: The 3300 XL extension cable comes with a 3.5-meter (13.1 feet) length option.
• Q: Does the cable support high temperatures?
  A: Yes, the cable is designed for extended temperature ranges, with the probe tip operating from -52°C to +218°C and the cable from -51°C to +260°C.
• Q: What is the pull strength of the cable?
  A: The cable design includes a patented CableLoc feature providing a pull strength of 330 N (75 lbf).

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
