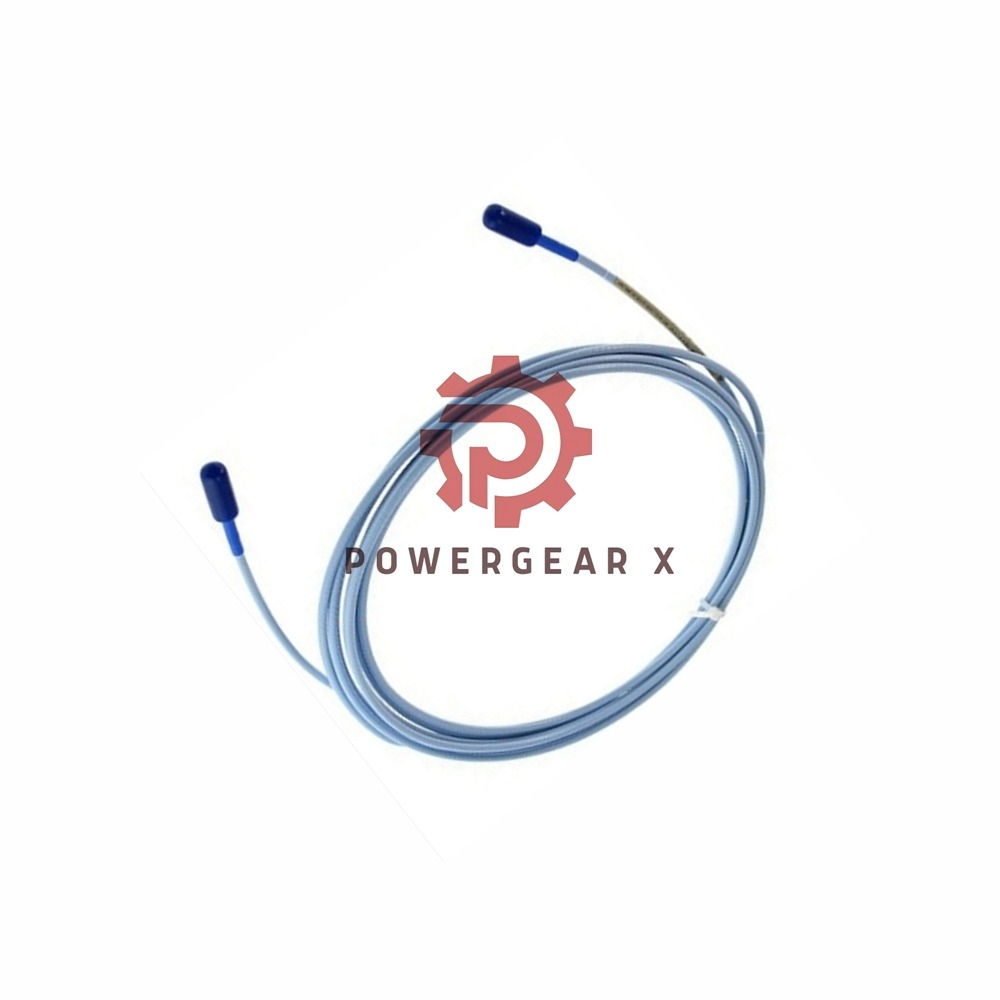

330190-045-00-00 Bently Nevada | ETR Extension Cable

Overview

The Bently Nevada 330190-045-00-00 3300 XL Extended Temperature Range (ETR) Extension Cable is designed for use with the 3300 XL 8 mm Proximity Probe and offers an enhanced operating temperature range, making it ideal for applications that require high durability in harsh environments. This extension cable ensures reliable signal transmission with a robust construction featuring TipLoc molding and CableLoc technology for secure connections and long-lasting performance.

Technical Specifications:

• Brand: Bently Nevada
• Model: 3300 XL ETR Extension Cable
• Part Number: 330190-045-00-00
• Power Requirement: -17.5 Vdc to -26 Vdc, with 12 mA max current consumption.
• Sensitivity: Less than 2 mV change per volt change in input voltage.
• Output Resistance: 50 Ω.
• Material: Probe tip made of Polyphenylene Sulfide (PPS).
• Altitude: Maximum 2000 meters (6562 feet).
• Temperature Range: Extended from -52°C to +218°C for the probe tip and -51°C to +260°C for the cable and connector.

FAQ:

• Q: What is the cable length for the 330190-045-00-00 model?
• A: The 3300 XL ETR Extension Cable has a length of 4.5 meters (14.8 feet).
• Q: Can I use this cable for extreme temperature applications?
• A: Yes, this extension cable is designed for extreme temperature ranges, from -52°C to +218°C for the probe tip and -51°C to +260°C for the cable and connector.
• Q: Does the cable prevent leakage?
• A: Yes, an optional FluidLoc cable is available to prevent liquids such as oils from leaking through the cable.
• Q: What is the power requirement for this extension cable?
• A: The cable requires a -17.5 Vdc to -26 Vdc power supply when installed with a non-incendive circuit, with a maximum consumption of 12 mA.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
