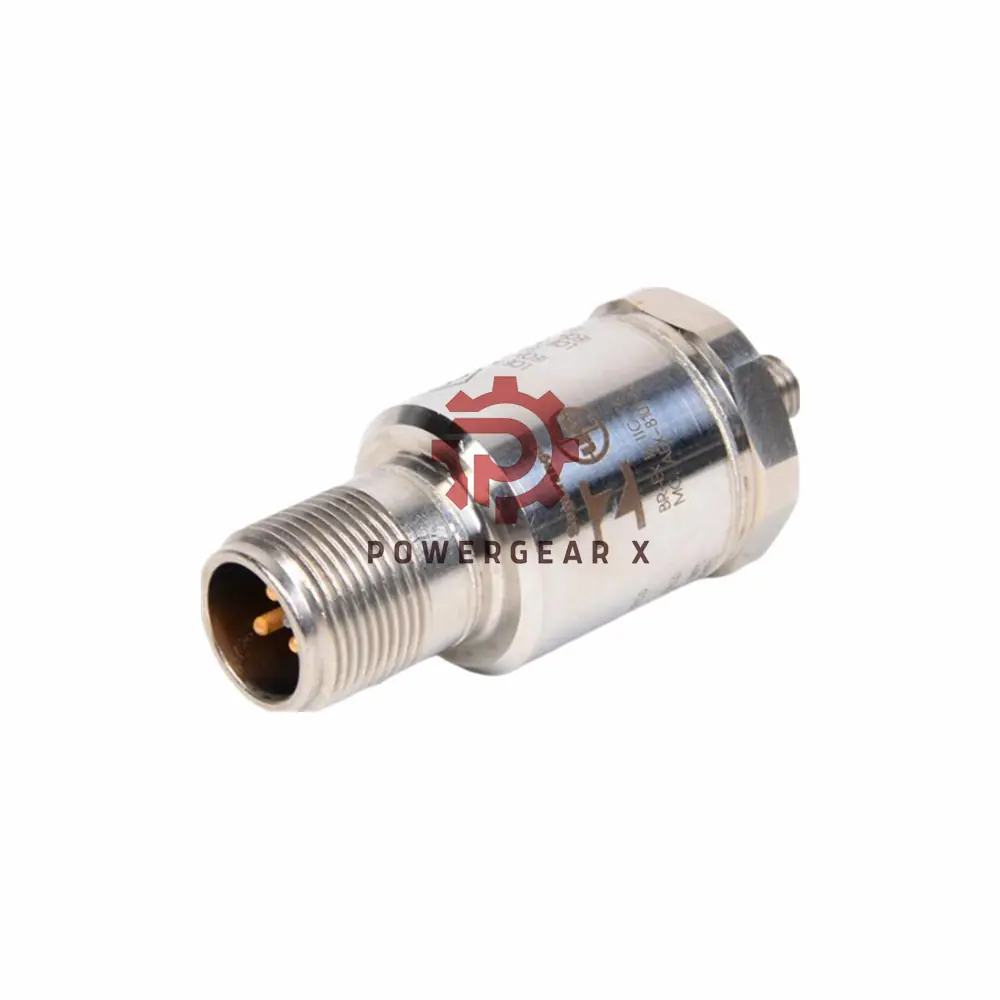

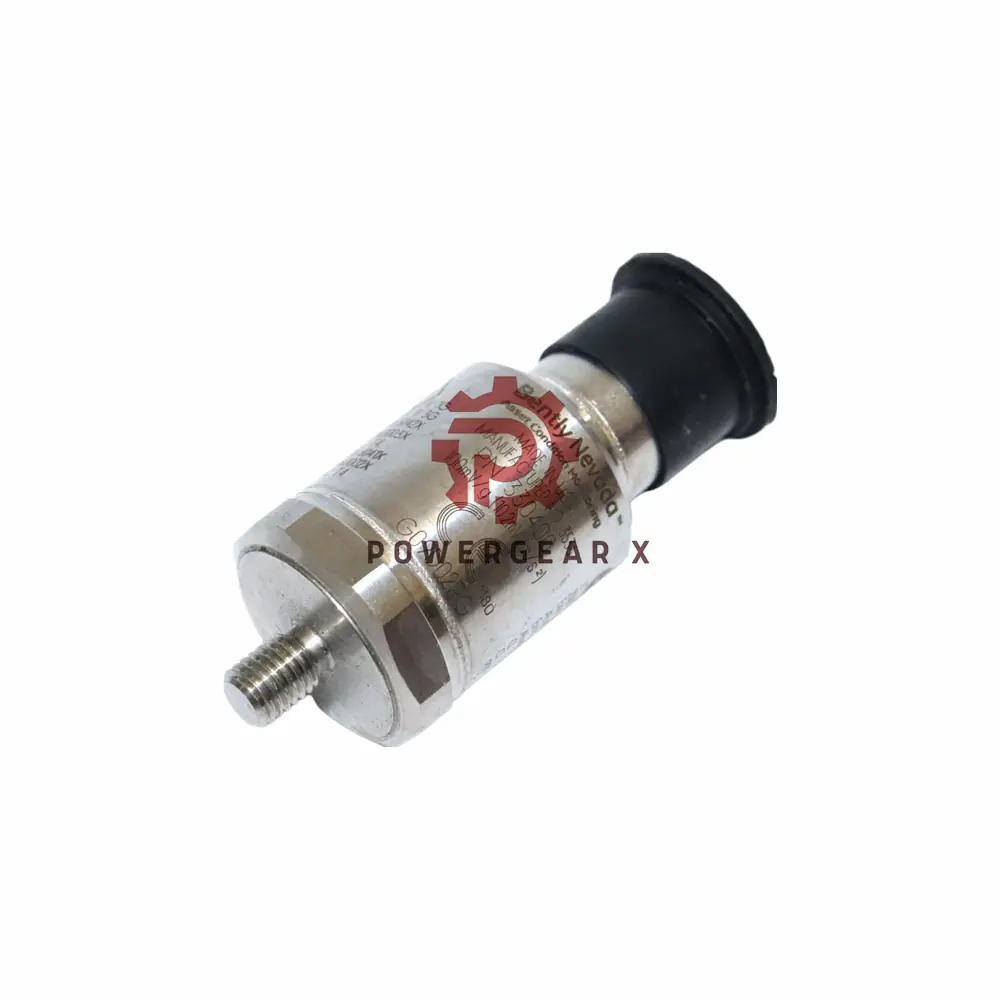

330400-01-05 Bently Nevada | 330400 Linear Transducer

Technical Specifications:

• Brand: Bently Nevada
• Model Number: 330400-01-05
• Sensitivity: 10.2 mV/m/s² (100 mV/g) ±5%
• Acceleration Range: 490 m/s² (50 g) peak overall
• Frequency Response:
  • 10 Hz to 15 kHz (600 cpm to 900,000 cpm) ±3dB
  • 30 Hz to 10 kHz (1,800 cpm to 600,000 cpm) ±10%
• Vibration Noise Floor: 0.039 m/s² (0.004 g) rms (10 Hz to 15 kHz)
• Temperature Sensitivity: -11% to +3% typical over operating temperature range
• Transverse Sensitivity: Less than 5% of axial sensitivity
• Mounted Resonant Frequency: Greater than 30 kHz
• Amplitude of Resonant Peak: 20 dB maximum
• Mounting Thread Option: 1/4-28 UNF integral stud
• Agency Approval: Multiple approvals including CSA, ATEX, and IECEx

FAQ:

Q: What is the maximum frequency range of this accelerometer?
A: The Bently Nevada 330400-01-05 accelerometer has a frequency response range from 10 Hz to 15 kHz (600 cpm to 900,000 cpm).

Q: Can this accelerometer be used in hazardous environments?
A: Yes, this model comes with multiple agency approvals, including CSA, ATEX, and IECEx, making it suitable for use in hazardous environments.

Q: What is the maximum acceleration range of this device?
A: The accelerometer has a peak acceleration range of 490 m/s² (50 g).

Q: How does the temperature affect the performance of this accelerometer?
A: The temperature sensitivity of the accelerometer varies between -11% to +3% typical over its operating temperature range.

For more detail information: 330400 and 330425 Accelerometer Acceleration Transducers Datasheet
