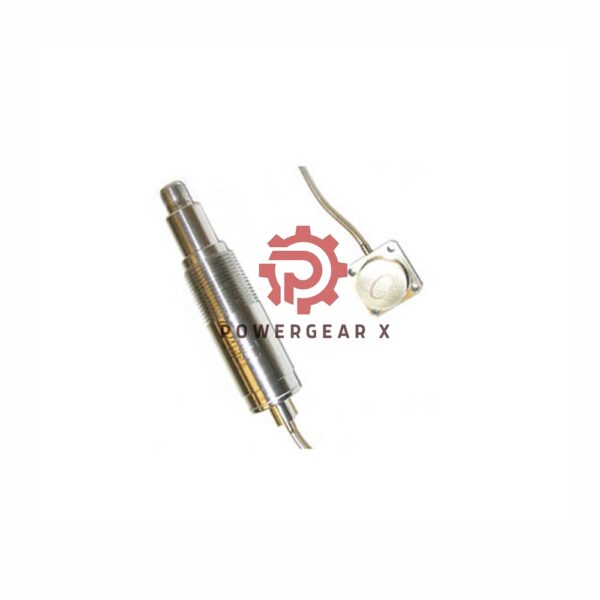

330400-02-00 Bently Nevada | 330400 Accelerometer

Technical Specifications

• Brand: Bently Nevada
• Model: 330400-02-00
• Mounting Thread: M8 x 1 integral stud
• Sensitivity: 10.2 mV/m/s² (100 mV/g) ±5%
• Acceleration Range: 490 m/s² (50 g) peak, overall acceleration within the 10 Hz to 15 kHz frequency span.
• Amplitude Linearity: ±1% to 490 m/s² (50 g) peak
• Broadband Noise Floor (10 Hz to 15 kHz): 0.039 m/s² (0.004 g) rms
• Frequency Range: The accelerometer operates efficiently within the frequency range of 10 Hz to 15 kHz, with a significant reduction in performance at higher frequencies (15 kHz and above) due to the transducer’s resonance.
• Agency Approval: None

FAQ

Q1: Can the accelerometer be used in high-frequency applications?
A1: While the 330400-02-00 is designed for a broad frequency range, its performance decreases significantly above 15 kHz due to resonance effects. It is best suited for applications where the frequency is within the 10 Hz to 15 kHz range.

Q2: What are the mounting options for the 330400-02-00?
A2: The accelerometer features an integral M8 x 1 stud mounting option, allowing for straightforward attachment to machinery or structures.

Q3: Is there any agency approval for this model?
A3: It does not include any agency approvals. However, it meets high standards of performance and reliability.

For more detail information: 330400 and 330425 Accelerometer Acceleration Transducers Datasheet
