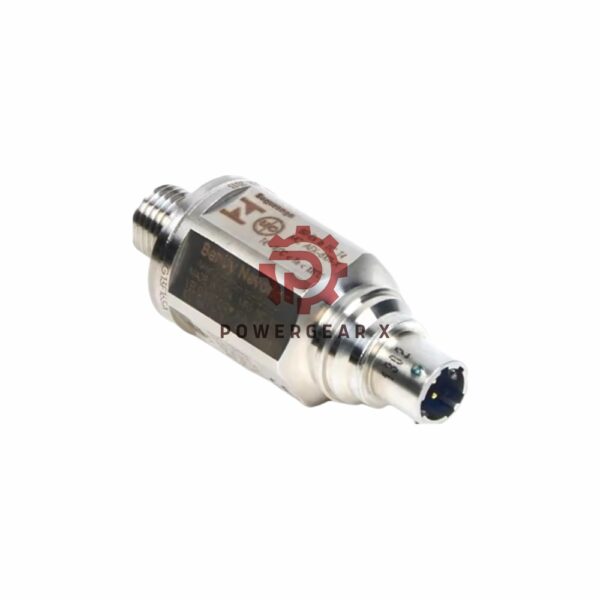

330500-03-04 Bently Nevada Velomitor Piezo-velocity Sensor

Product Overview

The Bently Nevada 330500-03-04 Velomitor Piezo-Velocity Sensor is a high-performance sensor designed for precise vibration measurement applications. Manufactured in the U.S.A, this sensor is renowned for its durability and reliability in demanding industrial environments. With multiple approval options, including CSA and ATEX, it ensures safe and efficient operation in various settings.

Features:

• Mounting Thread Adapter Option: 03=1/4 – 28 UNF.
• Connector: 2-pin Mil-C-5015 hermetically sealed with 316L stainless steel shell.
• Polarity: When the sensor case motion is towards the connector, Pin A becomes positive with respect to Pin B.
• Case Material: Constructed from 316L stainless steel, ensuring long-lasting durability.
• Height & Diameter: 63.2 mm (2.49 in) height and 25.3 mm (0.995 in) diameter.
• Weight: 142 grams (5.0 oz), typical.

Technical Specifications:

• Brand: Bently Nevada
• Model: 330500-03-04
• Suffix Meaning:
  • 03: 1/4 – 28 UNF mounting thread adapter.
  • 04: Multiple agency approvals (CSA, ATEX).
• Mounting Torque: 32-46 kg cm (24-40 in-lb) max.
• Case Material: 316L stainless steel.
• Connector: 2-pin Mil-C-5015 hermetically sealed, 316L stainless steel shell.
• Weight: 142 grams (5.0 oz), typical.

FAQ:

1. What is the maximum mounting torque for the Velomitor Piezo-Velocity Sensor?
   • The maximum mounting torque is 46 kg cm (40 in-lb).
2. What does the “04” approval option signify?
   • The “04” option means the sensor has multiple agency approvals, including CSA and ATEX.
3. What materials is the sensor made of?
   • The sensor is constructed from durable 316L stainless steel.
4. Can the sensor be used in hazardous environments?
   • Yes, it has multiple approvals, including CSA and ATEX, for use in hazardous locations.

For more detail information: 330500-Datasheet
