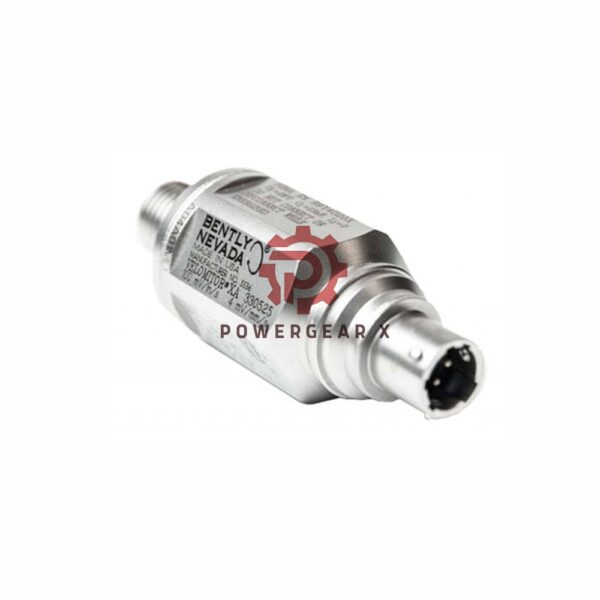

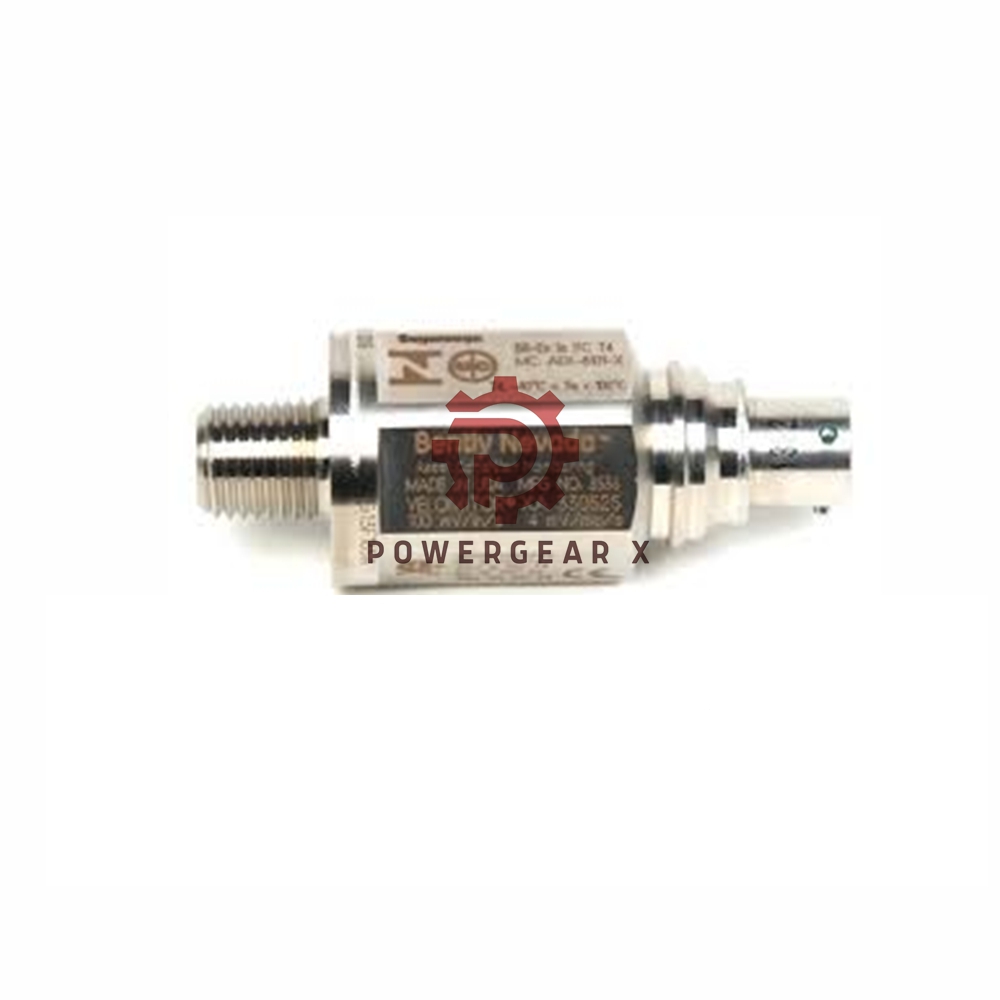

330525-00 | Bently Nevada | Velomitor XA Piezo-velocity Sensor

Overview

The Bently Nevada 330525-00 Velomitor XA Piezo-velocity Sensor is an advanced sensor designed to measure vibrations with high precision. Manufactured in the U.S.A, this sensor is widely used in various industrial applications to monitor machine health and performance. It features a robust 316L stainless steel housing, ensuring durability and resistance to harsh environments.

Technical Specifications:

• Model: 330525-00
• Brand: Bently Nevada
• Type: Velomitor XA Piezo-velocity Sensor
• Made In: U.S.A.
• Approval: Agency Approval Option 00 (None required)
• Certificate of Origin (COO): Available as an add-on option.
• Case Material: 316L stainless steel
• Height: 73.1 mm (2.88 in)
• Diameter: 28 mm (1.1 in)
• Weight: 156 g (5.5 oz), typical
• Sensitivity: 3.94mV/mm/s (100 mV/in/s) ±5%
• Mounting Torque: 45 N-m (33 ft-lb) maximum
• Connector: 2-pin Mil-C-26482 hermetically sealed, 316L stainless steel shell.

FAQ:

1. What is the recommended mounting torque for the 330525-00 sensor?
   • The recommended mounting torque is 45 N-m (33 ft-lb) maximum.
2. What is the sensitivity of the Velomitor XA sensor?
   • The sensitivity of the sensor is 3.94mV/mm/s (100 mV/in/s) ±5%.
3. What type of connector is used with the 330525-00 sensor?
   • The sensor uses a 2-pin Mil-C-26482 hermetically sealed connector with a 316L stainless steel shell.
4. What industries benefit from using this sensor?
   • This sensor is ideal for industries requiring precise vibration monitoring, including manufacturing, energy, oil & gas, and other heavy industries.

For more detail information: 330525-datasheet
