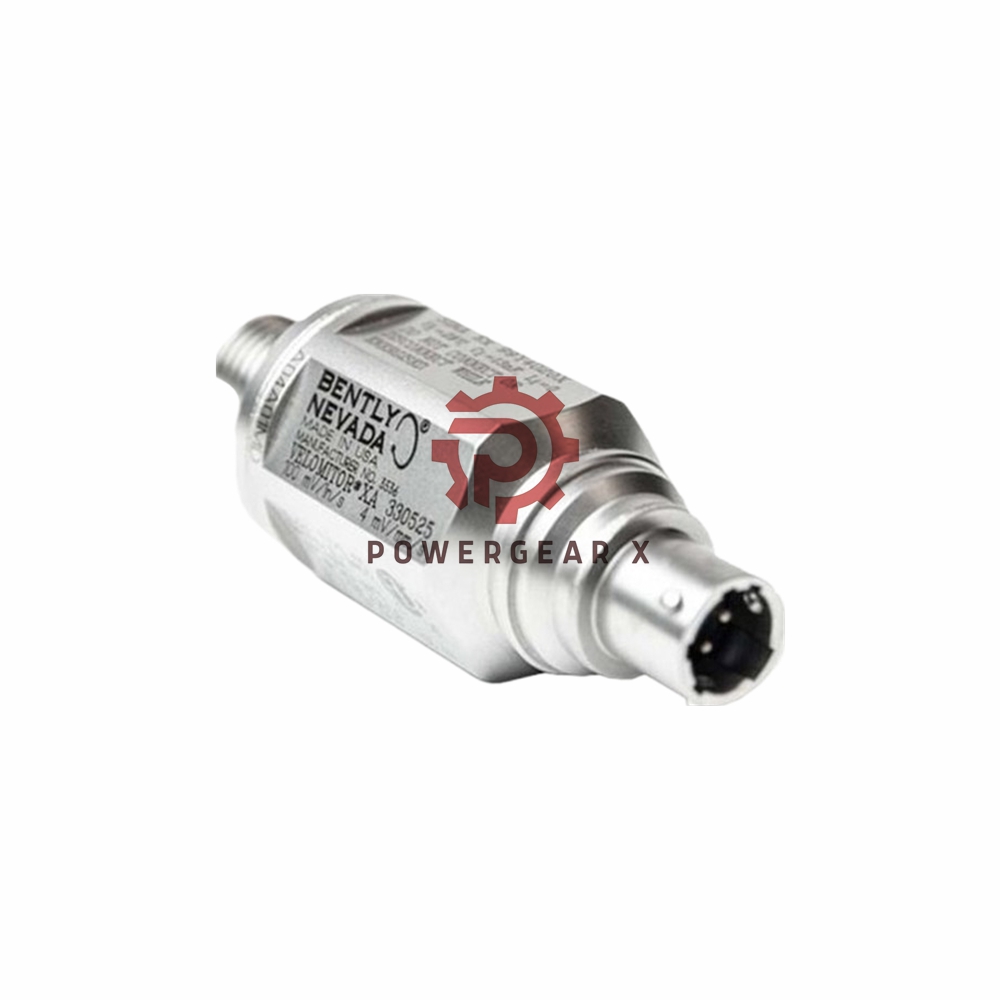

330525-02 | Bently Nevada | Velomitor XA Piezo-velocity Sensor

Overview

The Bently Nevada 330525-02 Velomitor XA is a rugged, high-performance piezo-velocity sensor designed for vibration monitoring. Engineered with durability in mind, it is ideal for industrial machinery monitoring and harsh environments. Its 316L stainless steel casing ensures resilience against extreme temperatures, humidity, and mechanical shock.

330525-02 Velomitor XA Piezo-velocity Sensor Technical Specifications:

• Brand: Bently Nevada
• Model: 330525-02 Velomitor XA
• Sensitivity: 3.94mV/mm/s (100 mV/in/s) ±5%
• Case Material: 316L stainless steel
• Height: 73.1 mm (2.88 in)
• Diameter: 28 mm (1.1 in)
• Weight: 156 g (5.5 oz), typical
• Connector: 2-pin Mil-C-26482 hermetically sealed, 316L stainless steel shell
• Mounting Torque: 45 N-m (33 ft-lb) maximum
• Polarity: Pin A goes positive with respect to pin B when the sensor case motion is toward the connector.
• Cable Bend Radius: 1.5-inch minimum bend radius.
• Shock Survivability: 5000 g peak, maximum
• Relative Humidity: To 100% non-submerged
• Magnetic Field Susceptibility: <51 min/s/gauss (50 gauss, 50-60 Hz)
• Operating Temperature: -55°C to +121°C (-67°F to +250°F)

FAQ:

Q1: Can I use this sensor in underwater conditions?
No, the sensor is sealed for humidity resistance but is not designed for submerged applications.

Q2: What kind of connector does this sensor use?
It uses a 2-pin Mil-C-26482 connector, which is hermetically sealed for durability in harsh environments.

Q3: Is the sensor suitable for high-temperature environments?
Yes, the sensor operates within a wide temperature range of -55°C to +121°C, making it suitable for extreme conditions.

For more detail information: 330525-datasheet
