330730-040-11-CN Armored Extension Cable | Bently Nevada

Overview

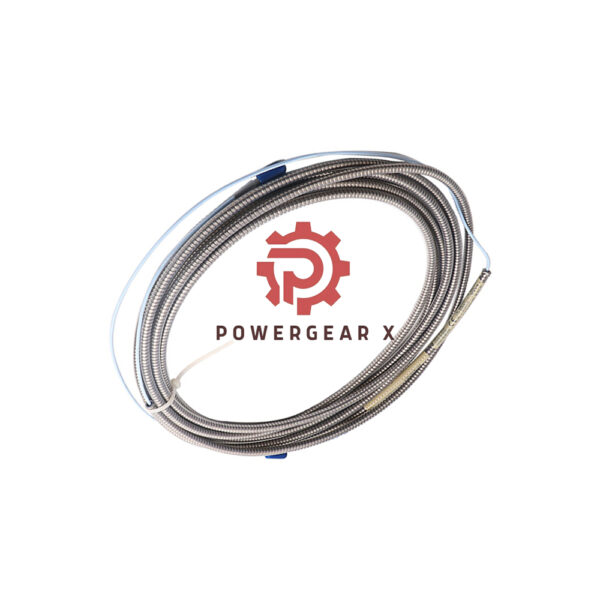

The Bently Nevada 3300 XL 11 mm Extension Cable (Product No. 330730-040-11-CN) is designed for use with 3300 XL Probes and offers enhanced durability, protection, and performance in challenging industrial environments. Manufactured in the U.S.A, this extension cable features an armored FluidLoc option, ensuring resistance to oil and other liquids. With options for flexible armor and various cable lengths, this extension cable ensures a reliable connection for vibration monitoring systems.

Technical Specifications

• Manufacturer: Bently Nevada
• Model: 3300 XL 11 mm Extension Cable
• Product Number: 330730-040-11-CN
• Made in: U.S.A.
• Capacitance: 69.9 pF/m (21.3 pF/ft)
• Armor (Optional): Flexible AISI 302 SST with FEP outer jacket
• Operating & Storage Temperature: -51°C to +177°C (-60°F to +351°F)
• Resistance (Center to Center): 1.0 ± 0.25 ohms (4.0 m cable)
• Resistance (Coaxial to Coaxial): 0.3 ± 0.1 ohms (4.0 m cable)
• Tensile Strength:
  • 330 N (75 pounds) from probe case to probe lead
  • 270 N (60 pounds) from probe lead to extension cable connectors
• Extension Cable Material: 75 Ω triaxial, FEP insulated
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG) with ferrules (recommended 3-conductor shielded triad cable)
• Linear Range: 0.5 mm to 4.5 mm (20 to 180 mils)
• Connector Material: Gold-plated brass
• Recommended Gap Setting: 2.5 mm (100 mils)
• Frequency Response: Refer to graph for signal roll-off at high frequencies with longer wiring lengths
• Connector Protector Option: Provides enhanced environmental protection

Ordering Information

• Product Code: 330730-040-11-CN
• Cable Length: 4.0 meters (13.1 feet)
• Connector and Cable Type: 11 Armored FluidLoc cable
• Armor Option: Flexible AISI 302 SST with FEP outer jacket
• Approval Option: CN (Country Specific)
• Connector Protector: Available for enhanced protection in humid/moist environments

For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
