330730-080-02-05 Bently Nevada | 3300 XL Extension Cable

Overview

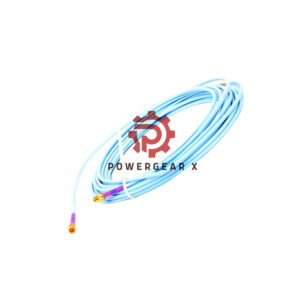

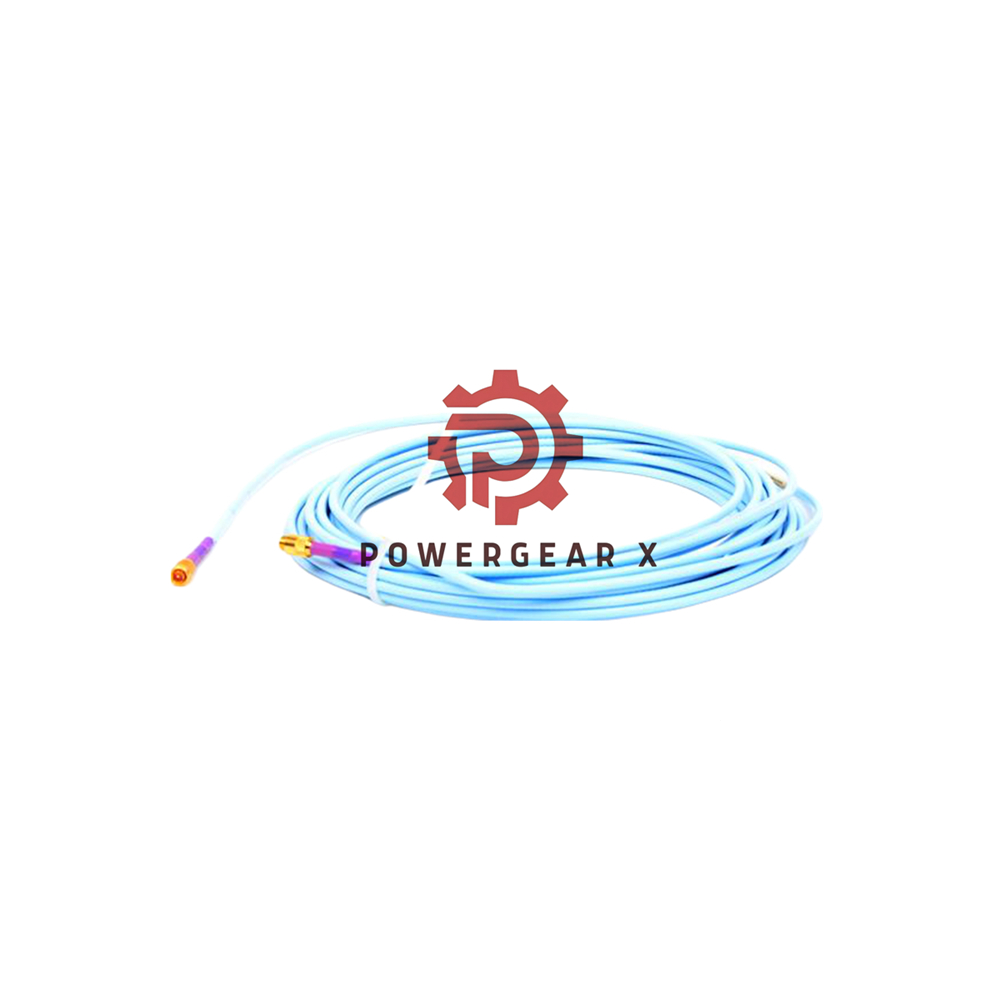

The Bently Nevada 3300 XL 11 mm Extension Cable (Product No. 330730-080-02-05) is designed to extend the reach of the 3300 XL proximity probes, providing reliable signal transmission for machine monitoring applications. Made in the U.S.A., this cable is equipped with various options, including armored and non-armored versions, to suit diverse installation needs. The cable is engineered for high durability, capable of withstanding extreme operating environments with temperatures ranging from -51°C to +177°C (-60°F to +351°F).

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 11 mm Extension Cable
• Part Number: 330730-080-02-05
• Connector and Cable Option: Standard cable with connector protector
• Cable Length: 8.0 meters (26.2 feet)
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
• Operating and Storage Temperature: -51°C to +177°C (-60°F to +351°F)
• Extension Cable Resistance:
  • RCORE: 2.0 ± 0.5 ohms
  • RJACKET: 0.6 ± 0.2 ohms
• Material: 75 Ω triaxial FEP-insulated cable
• Armor Option: Flexible AISI 302 SST with FEP outer jacket (optional)
• Connector Material: Gold-plated brass
• Tensile Strength:
  • Probe case to probe lead: 330 N (75 pounds)
  • Probe lead to extension cable connectors: 270 N (60 pounds)
• Field Wiring: Suitable for 0.2 to 1.5 mm² (16 to 24 AWG) wiring
• Linear Range: 4.0 mm (160 mils)
• Gap Setting: 2.5 mm (100 mils)
• Incremental Scale Factor (ISF): 3.94 V/mm (100 mV/mil) ±10%

Ordering Information

When ordering the Bently Nevada 3300 XL Extension Cable, consider the following options:

• Length Option:
  • 080 = 8.0 meters (26.2 feet)
• Connector and Cable Option:
  • 02 = Standard cable with connector protector
• Agency Approval Option:
  • 05 = Multiple approvals

For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
