330780-50-05 Bently Nevada NSv Proximitor Sensor

Overview

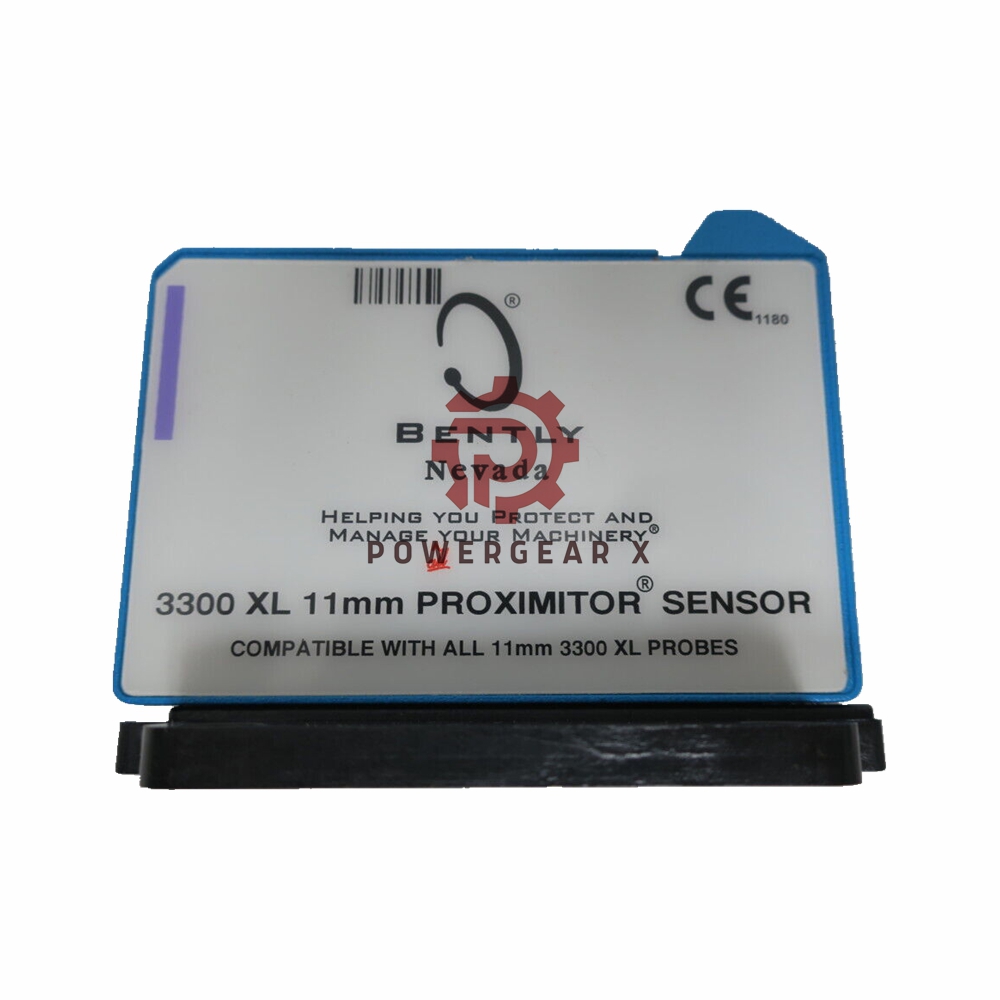

The Bently Nevada 3300 XL 11 mm Proximitor Sensor (Model: 330780-50-05) is engineered for high-performance proximity detection in various industrial applications. Manufactured in the USA, this sensor is designed for reliable operation with enhanced immunity to radio frequency interference (RFI) and electromagnetic interference (EMI).

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL
• Product No.: 330780-50-05
• Product Type: Proximitor Sensor
• Suffix Meaning:
  • 50: System length and mounting option (5.0 meters or 16.4 feet, panel mount)
  • 05: Indicates multiple agency approvals
• Recommended Minimum Target Size: 30.5 mm (1.2 in) diameter (flat target)
• Weight: 0.82 kg
• Operating Temperature Range: 0°C to +45°C (+32°F to +113°F)
• Maximum Altitude: 2000 meters
• Power Supply: -24 Vdc
• Load Resistance: 10 kΩ
• Target Material: AISI 4140 steel, 31 mm (1.2 in) diameter or larger
• Probe Gap: 2.5 mm (100 mils)

FAQ:

1. What is the recommended target size?
   • The recommended minimum target size is 30.5 mm (1.2 in) in diameter.
2. What is the operating temperature range?
   • The sensor operates in temperatures ranging from 0°C to +45°C (+32°F to +113°F).
3. What is the power supply required?
   • The sensor requires a -24 Vdc power supply.

For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
