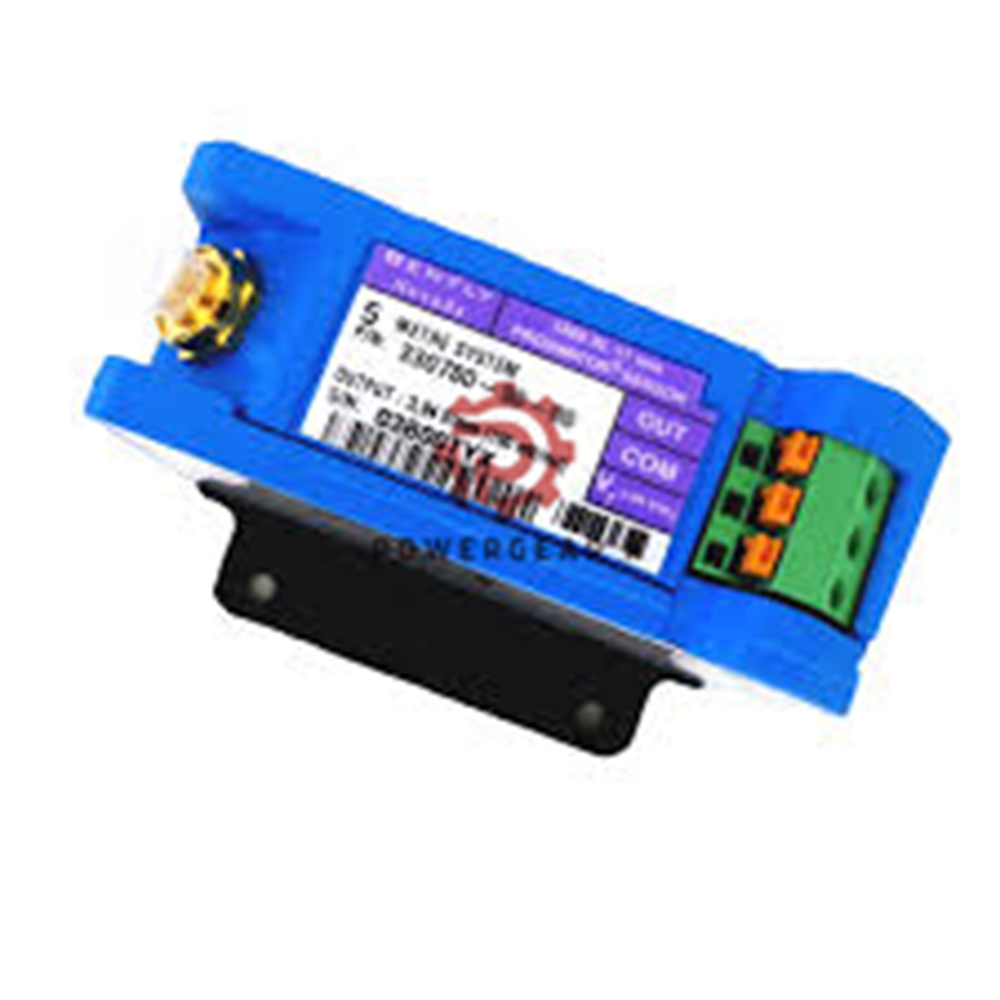

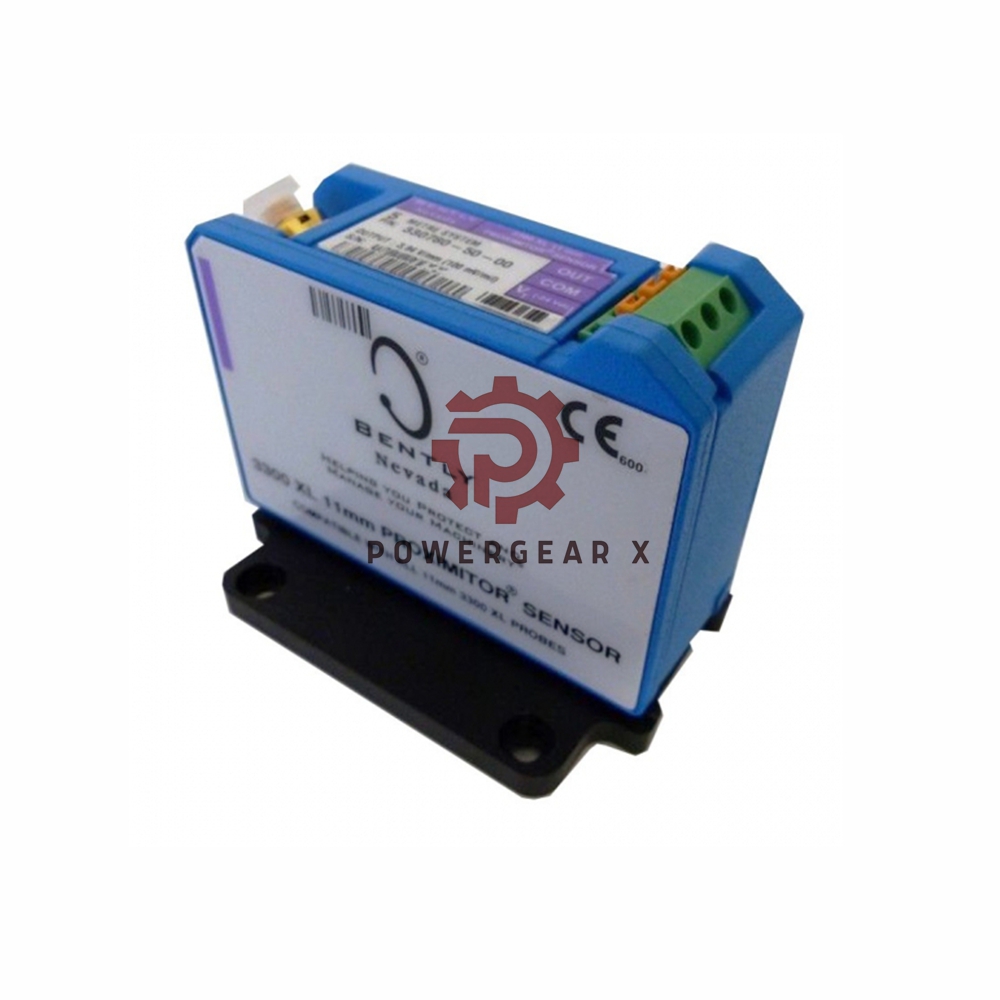

330780-90-05 Bently Nevada 3300 XL 11 mm Proximitor

Technical Specifications

• Brand: Bently Nevada
• Model: 330780-90-05 (3300 XL 11 mm Proximitor Sensor)
• Suffix Meaning:
  • 90: Indicates the total length and mounting option, specifically 9.0 meters (29.5 feet) with panel mount.
  • 05: Indicates that Multiple approvals
• Proximity Probe: Compatible with a single non-contacting 3300 XL 11 mm proximity probe and extension cable.
• Electrical Characteristics:
  • Input Voltage: Requires between -17.5 Vdc to -26 Vdc (without barriers) and -23 Vdc to -26 Vdc (with barriers).
  • Output Resistance: 50 Ω.
  • Supply Sensitivity: Offers less than a 2 mV change in output voltage per volt change in input voltage.
• Application: Ideal for vibration monitoring and machine health diagnostics in various industries.

FAQ

Q: What applications can the Bently Nevada 330780-90-05 sensor be used for?
A: This sensor is primarily used in vibration monitoring and diagnostic applications across a range of industrial environments.

Q: What type of power supply is required for the sensor?
A: The sensor operates on a -24 Vdc power supply, with specific requirements depending on the presence of barriers.

Q: What is the maximum system length available with this model?
A: The Bently Nevada 330780-90-05 sensor has a total system length of 9.0 meters (29.5 feet).

For more detailed information: 3300 XL 11 mm Proximity Transducer System Datasheet
