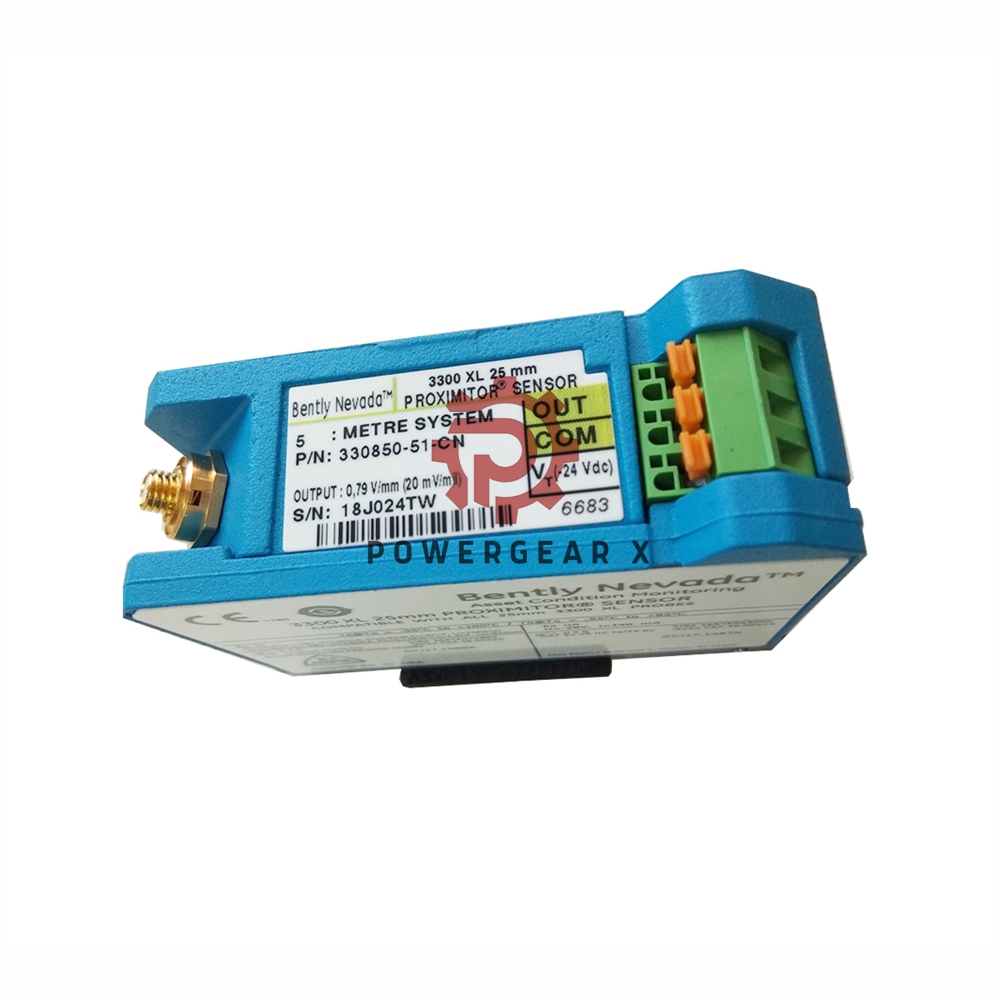

330850-90-05 Bently Nevada | 3300 XL 25 mm Proximitor Sensor

Overview:

The Bently Nevada 330850-90-05 proximity sensor is designed for use in demanding rotating machinery applications. Constructed from durable A380 aluminum, it ensures long-term reliability and is suited for condition monitoring and safeguarding.

330850-90-05 Key Features

• Material: Constructed from durable A380 aluminum, ensuring long-lasting service in harsh conditions.
• Operating Temperature: Capable of functioning in a range from -35°C to +85°C (-31°F to +185°F).
• Storage Temperature: Safe for storage between -51°C to +100°C (-60°F to +212°F).
• Certification: Certificate of Origin (COO) available for compliance purposes.
• Applications: Commonly used in rotating machinery applications for condition monitoring and safeguarding.

Technical Specifications

• Product Number: 330850-90-05
• Length & Mounting Options: 90 = 9.0 meters (29.5 feet) system length, panel mount option.
• Agency Approval: 05 = Multiple approvals for enhanced reliability and regulatory compliance.
• Proximitor Sensor Input: Accepts one noncontacting 3300 XL 25 mm proximity probe and extension cable.
• Electrical Requirements:
  • Power Supply: Requires -17.5 Vdc to -26 Vdc without barriers at a maximum consumption of 12 mA.
  • Operation at a voltage more positive than -23.5 Vdc can decrease linear range.
• Output Resistance: 50 Ω.
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.
• System Accuracy: Specifications apply under controlled conditions with a Bently Nevada AISI 4140 steel target that is 61 mm (2.4 in) diameter or larger and a probe gap of 7.0 mm (275 mils).

For more detailed information: 3300-XL-25MM-Datasheet
