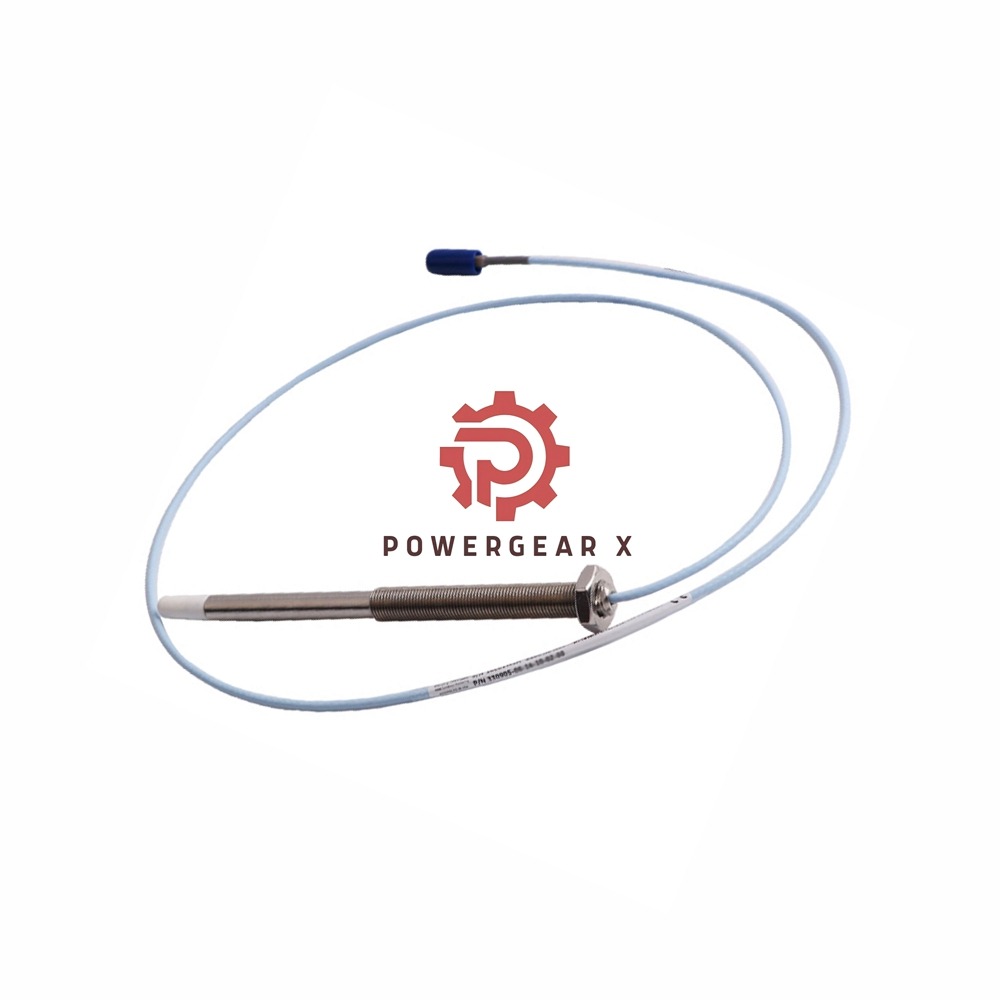

330907-05-30-10-02-CN 3300 NSv Reverse Mount Probes

Overview

The Bently Nevada 330907-05-30-10-02-CN Reverse Mount Probe is a state-of-the-art sensor designed to monitor machinery conditions effectively and accurately. Manufactured in the U.S.A., this probe is engineered with enhanced chemical resistance, making it suitable for various process compressor applications. The 3300 NSv probe excels in situations where traditional probes falter.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 NSv Reverse Mount Probe
• Product Number: 330907-05-30-10-02-CN
• Thread Type: M10X1
• Length Options: 1.0 meter (39 inches)
• Connector Type: Miniature coaxial ClickLoc connector (standard cable)
• Agency Approval: CN (ATEX/IECEx and Chinese NEPSI approvals)

Additional Specifications

• Probe Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 stainless steel
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Storage Temperature: -52°C to +177°C (-62°F to +351°F)
• Maximum Thread Engagement for M10x1: 15 mm
• DC Resistance: 4.2 ± 0.5 ohms (1.0 m)
• Torque Ratings:
  • Maximum: 22.6 N·m (200 in·lb)
  • Recommended: 7.5 N·m (66 in·lb)
• Weight: Approximately 14 to 150 g (0.5 to 5.3 oz)

Advantages

This probe offers numerous benefits, including:

• Increased chemical resistance compared to traditional probes.
• A robust sealing system designed to withstand differential pressure.
• Enhanced performance with gold-plated brass ClickLoc connectors that secure connections and prevent loosening.
• A patented TipLoc molding method that strengthens the bond between the probe tip and body.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
