330907-05-30-10-12-00 | Bently Nevada Reverse Mount Probes

Overview

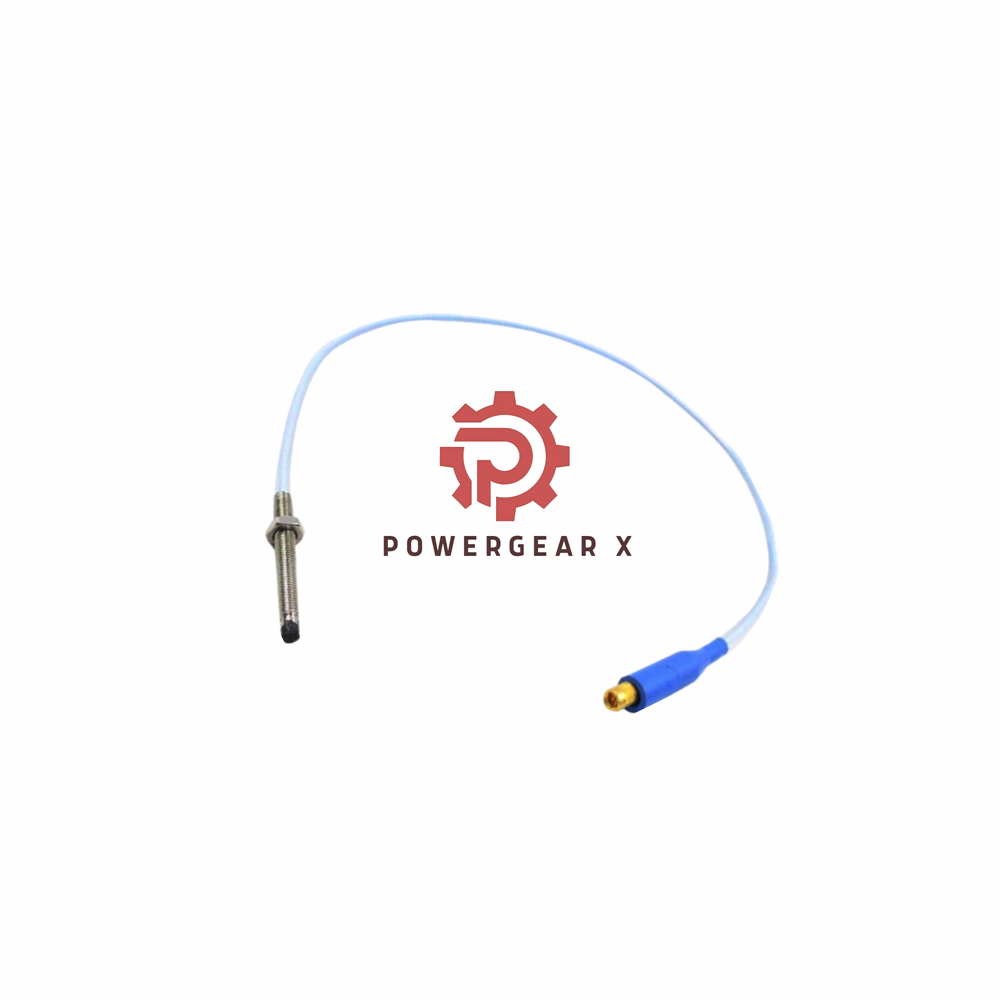

The Bently Nevada 330907-05-30-10-12-00 is a 3300 NSv Reverse Mount Probe, specifically designed for process compressor applications. With enhanced chemical resistance compared to the 3300 RAM probe, this probe offers superior side-view characteristics. It comes with an M10X1 thread, ensuring compatibility with reverse mount configurations. The ClickLoc connectors provide a secure connection, while the TipLoc molding method ensures durability by strengthening the bond between the probe tip and body.

Technical Specifications

• Brand: Bently Nevada
• Model: 330907-05-30-10-12-00
• Probe Type: 3300 NSv Reverse Mount Probe
• Ordering Information
  • 330907-05-30: M10X1 threads
  • Total Length Option: 10 (1.0 meter / 39 inches)
  • Connector Option: 12 (Miniature coaxial ClickLoc connector with FluidLoc cable)
  • Agency Approval Option: 00 (Not required)
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Storage Temperature: -52°C to +177°C (-62°F to +351°F)
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel (SST)
• Torque (Max/Recommended): 22.6 N•m (200 in•lb) / 7.5 N•m (66 in•lb)
• Pressure Seal: Viton O-ring for differential pressure sealing
• Electrical Resistance (1.0m probe): 4.2 ± 0.5 ohms
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), recommended three-conductor shielded triad cable
• Maximum Wiring Length: 305 meters (1,000 feet)
• Linear Range: 1.5 mm (60 mils), from 0.25 to 1.75 mm (10 to 70 mils)
• Recommended Gap Setting: 1.0 mm (40 mils)
• System Weight: Approximately 14 to 150 g (0.5 to 5.3 oz)

Frequently Asked Questions (FAQ)

1. What makes the 3300 NSv probe different from other probes?
   • It offers superior side-view performance and increased chemical resistance, making it ideal for process compressors.
2. Can this probe withstand high temperatures?
   • Yes, it operates in temperatures ranging from -52°C to +177°C (-62°F to +351°F).
3. What is the function of the ClickLoc connector?
   • It locks securely in place, preventing accidental disconnection.
4. What is the recommended gap setting?
   • The recommended setting is 1.0 mm (40 mils).

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
