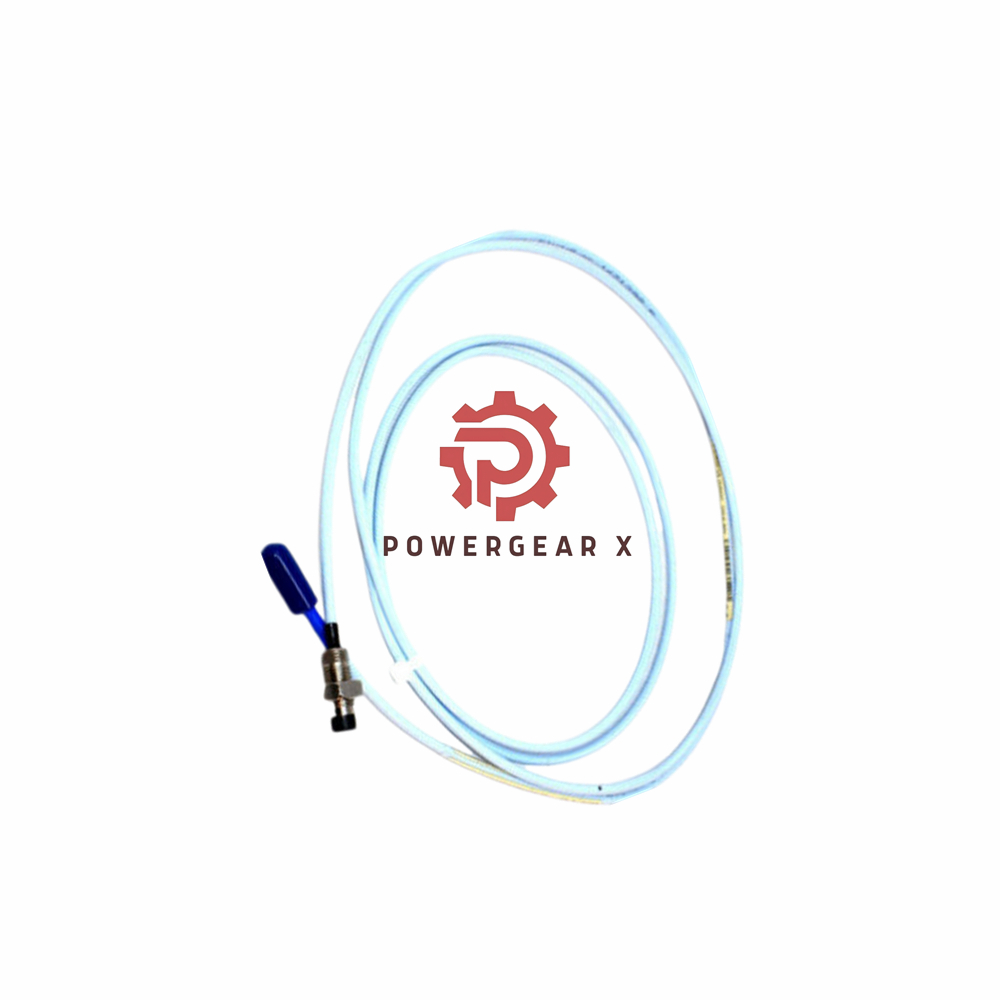

330907-05-30-10-12-05 | Bently Nevada Reverse Mount Probes

Overview

The Bently Nevada 330907-05-30-10-12-05 is a 3300 NSv Reverse Mount Probe designed for high-precision vibration monitoring. Engineered with superior chemical resistance, it is particularly suitable for process compressors and other industrial applications. The ClickLoc connectors ensure a secure connection, while the TipLoc molding enhances durability. This probe complies with multiple safety and performance certifications, ensuring reliability in demanding environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 330907-05-30-10-12-05
• Suffix Meaning
  • 330907-05-30 – M10X1 thread
  • 10 – 1.0-meter total length
  • 12 – Miniature coaxial ClickLoc connector with FluidLoc cable
  • 05 – Multiple agency approvals
• Linear Range: 1.5 mm (60 mils), starting from 0.25 mm (10 mils) to 1.75 mm (70 mils)
• Recommended Gap Setting: 1.0 mm (40 mils)
• Probe DC Resistance: 4.2 ± 0.5 ohms
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel (SST)
• Torque Ratings:
  • Maximum: 22.6 N•m (200 in•lb)
  • Recommended: 7.5 N•m (66 in•lb)
• System Weight: 14 to 150 g (0.5 to 5.3 oz)
• Thread Engagement: 15 mm (M10X1 thread)
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Storage Temperature: -52°C to +177°C (-62°F to +351°F)
• Pressure Sealing: Viton O-ring for differential pressure sealing
• Field Wiring:
  • Recommended: Shielded triad cable (0.2 to 1.5 mm² or 16 to 24 AWG)
  • Max Length: 305 meters (1,000 feet)

Frequently Asked Questions (FAQ)

1. What makes the 3300 NSv probe superior to the 3300 RAM probe?
   • The 3300 NSv probe features enhanced chemical resistance, making it ideal for aggressive industrial environments.
2. What is the function of the ClickLoc connector?
   • ClickLoc connectors lock securely, preventing accidental disconnection and ensuring stable signal transmission.
3. What thread types are available for the reverse mount probe?
   • The standard thread types for the 3300 NSv Reverse Mount Probe are 3/8-24 and M10X1.
4. Can the probe withstand extreme temperatures?
   • Yes, it operates in a temperature range of -52°C to +177°C (-62°F to +351°F).
5. What is the recommended field wiring for installation?
   • A shielded triad cable is recommended, with a maximum length of 305 meters (1,000 feet).

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
