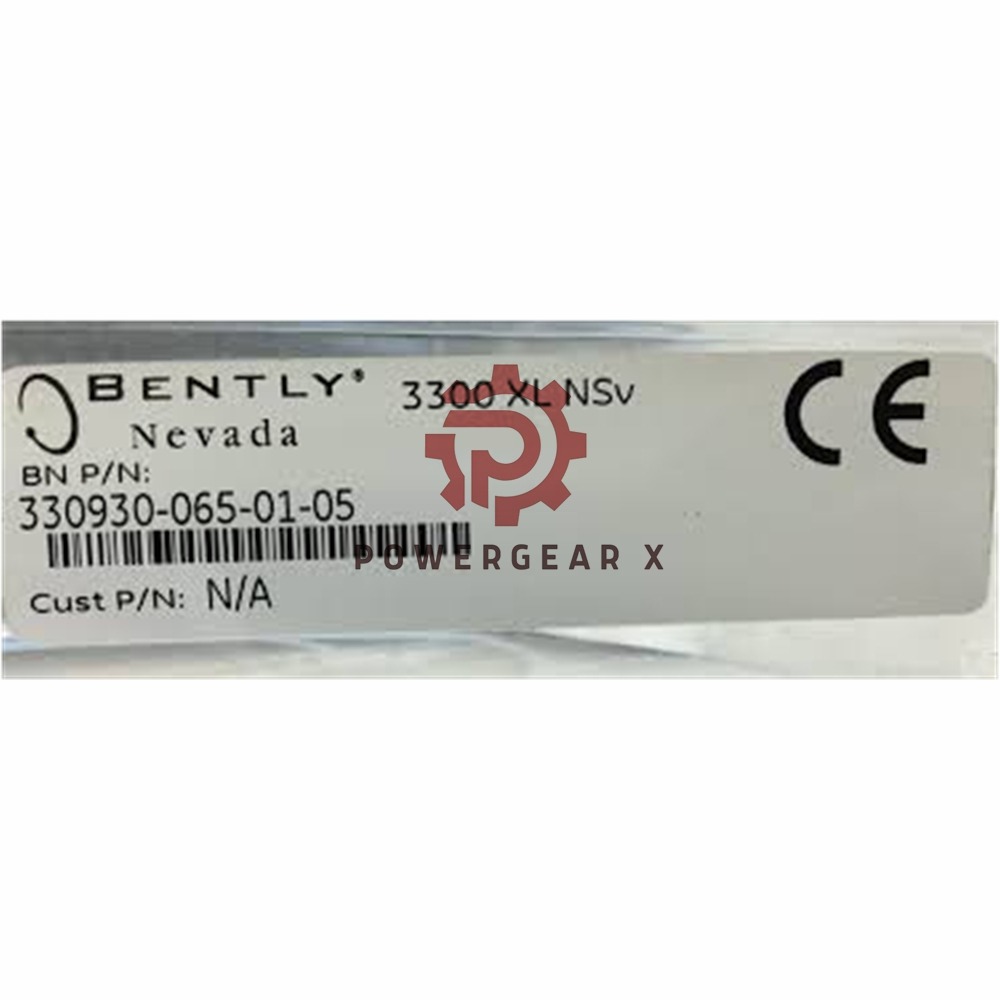

330930-065-01-05 Bently Nevada | 3300 NSv Extension Cable

Overview:

The Bently Nevada 3300 NSv Extension Cable (Part No. 330930-065-01-05) is designed for use with the 3300 NSv proximity probe system. It is an essential component for maintaining reliable and accurate vibration measurement systems in harsh environments. Made in the U.S.A., this extension cable is compatible with previous Bently Nevada 3300 RAM proximity probes, providing superior mechanical and electrical performance.

Technical Specifications:

• Manufacturer: Bently Nevada
• Product Model: 330930-065-01-05
• Cable Length: 6.5 meters (21.3 feet)
• Cable Material: 75 Ω coaxial with fluoroethylene propylene (FEP) insulation
• Connector Material: Gold-plated brass
• Armor Option: Stainless steel (AISI 302) with or without FEP outer jacket
• Operating Temperature: -51°C to +177°C (-60°F to +351°F)
• Extension Cable Resistance:
  • Center Conductor: 0.220 Ω/m (0.067 Ω/ft)
  • Shield: 0.066 Ω/m (0.020 Ω/ft)
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
• Tensile Strength: 220 N (50 lb)
• Weight: Approx. 0.014 kg to 0.15 kg
• Agency Approvals: Multiple approvals

FAQ:

1. What is the maximum cable length available for this extension cable?
   • The available cable length is 6.5 meters (21.3 feet) for this specific model.
2. Is the extension cable compatible with older Bently Nevada probes?
   • Yes, this cable is compatible with both the 3300 RAM and 3300 NSv probes.
3. What is the recommended storage temperature for this extension cable?
   • The recommended storage temperature is between -51°C and +177°C (-60°F to +351°F).
4. Can the cable be used in hazardous environments?
   • Yes, the cable features stainless steel armor and an FEP jacket, providing enhanced protection in harsh environments.

For more detailed information: 3300 XL NSv Proximity Transducer System Datasheet
