8 mm Proximity Probe Bently Nevada 330104-00-08-05-02-CN

Overview

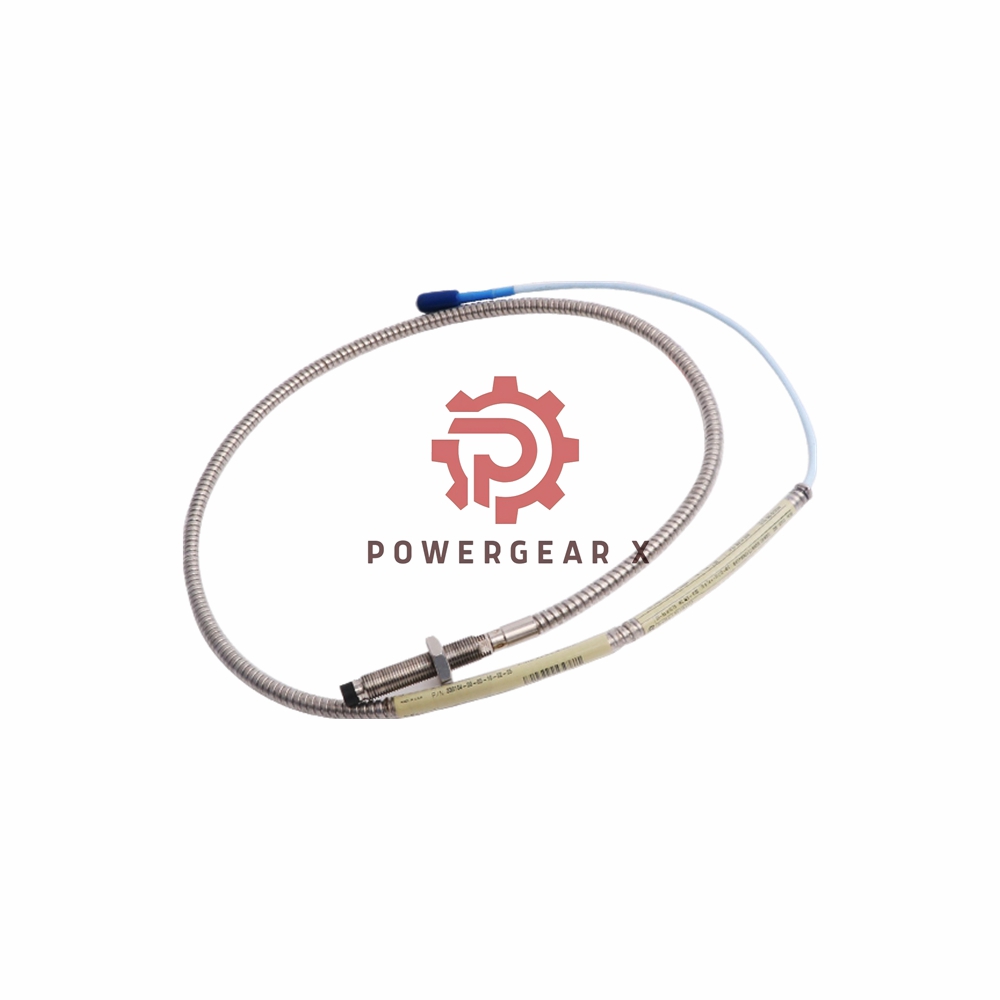

The Bently Nevada 330104-00-08-05-02-CN 3300 XL 8 mm Proximity Probe is a high-performance sensing device designed for precise measurement in industrial applications. Manufactured in the U.S.A, this probe is engineered with advanced materials and technology to ensure durability and reliability in harsh environments.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Probe, M10 x 1 thread, with armor
• Product Number: 330104-00-08-05-02-CN
• Product Type: 3300 XL 8 mm Proximity Probes

Options and Dimensions:

• Unthreaded Length:
  • 00 = 0 mm
• Overall Case Length:
  • 08 = 80 mm
• Total Length:
  • 05 = 0.5 meter (1.6 feet)
• Connector and Cable-Type:
  • 02 = Miniature coaxial ClickLoc connector with standard cable
• Agency Approval:
  • CN = Country Specific

Materials:

• Probe Tip Material:
  • Polyphenylene sulfide (PPS)
• Probe Case Material:
  • AISI 303 or 304 stainless steel (SST)

Performance Characteristics:

• Probe Pressure:
  • Designed to seal differential pressure; uses Viton® O-ring for sealing. Probes are not pressure tested before shipment.
• Weight:
  • 0.323 kg

Temperature and Humidity:

• Standard Probe Temperature Range:
  • -52°C to +177°C (-62°F to +350°F)
• Extended Temperature Range:
  • -52°C to +218°C (-62°F to +425°F) for probe tip;
  • -51°C to +260°C (-60°F to +500°F) for probe cable and connector.
• Relative Humidity:
  • Maintains less than a 3% change in Average Scale Factor (ASF) when exposed to 93% humidity for up to 56 days.

Electrical Characteristics:

• Power Requirements:
  • Requires -17.5 Vdc to -26 Vdc with non-incendive circuits (maximum 12 mA consumption); -23 Vdc to -26 Vdc with barriers.
• Supply Sensitivity:
  • Less than 2 mV change in output voltage per volt change in input voltage.
• Output Resistance:
  • 50 Ω.

Applications

The Bently Nevada 3300 XL 8 mm Proximity Probes are ideal for applications in rotating machinery monitoring, providing accurate measurements and enhanced reliability. Their robust design makes them suitable for a variety of industrial conditions.

For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
