9200-01-50-09-04 | Two-wire Velocity Seismoprobe Transducer

Overview

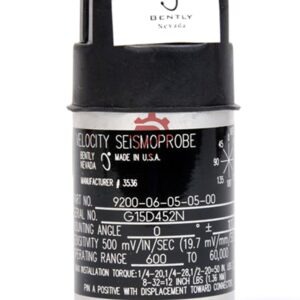

The Bently Nevada 9200-01-50-09-04 Two-Wire Velocity Seismoprobe Transducer is designed for monitoring vibrations with high precision. Made in the U.S.A, this device offers robust performance for industrial machinery and seismic applications. It is available with various mounting options, connectors, and agency approvals, making it versatile for different operational environments.

Key Features:

• Agency Approval: ATEX/IECEx certified for hazardous areas.
• Mounting Options: Includes an isolated circular 5/8-18 UNF stud.
• Connector Options: 50 feet (15.2 meters) integral hardline cable.
• Environmental Durability: Operating temperature range of -29°C to +121°C (-20°F to +250°F).
• Shock Resistance: Can withstand up to 50 g peak acceleration along non-sensitive axis.
• Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5% at calibrated angle.
• Material: Anodized aluminum A204 case and adapter, neoprene gasket.

Technical Specifications:

• Brand: Bently Nevada
• Model: 9200-01-50-09-04
• Type: Two-Wire Velocity Seismoprobe Transducer
• Frequency Response: 4.5 to 1000 Hz (+0, -3dB typical).
• Dynamic Range: 2.54 mm (0.100 in) peak-to-peak maximum displacement.
• Velocity Range: 25 mm/s (1 in/s) at 100 Hz.
• Coil Resistance: 1.25 kΩ ±5%.
• Inductance: 125 mH (typical).
• Polarity: Pin A goes positive when transducer velocity is towards the connector.
• Mounting Torque: 5.6 N•m (50 in•lb) for various mounting base options.
• Weight: 300 grams (10.5 ounces).

Model Suffix Explanation:

• 01: Mounting angle and minimum operating frequency option.
• 50: Connector length option (50 feet).
• 09: Isolated circular 5/8-18 UNF stud mounting base.
• 04: ATEX/IECEx agency approval.

Frequently Asked Questions (FAQ):

1. What is the maximum cable length for this transducer?
   • The maximum cable length is 305 meters (1,000 feet). Longer cable lengths may result in frequency roll-off.
2. What types of environmental conditions can the 9200 Seismoprobe withstand?
   • It can operate in temperatures ranging from -29°C to +121°C (-20°F to +250°F), making it suitable for extreme environments.
3. What is the frequency range of the transducer?
   • The frequency response ranges from 4.5 Hz to 1000 Hz (+0, -3dB typical), allowing for detailed vibration measurement.

Check official datasheet for more detailed information:9200 and 74712 Seismoprobe Velocity Transducers Datasheet
