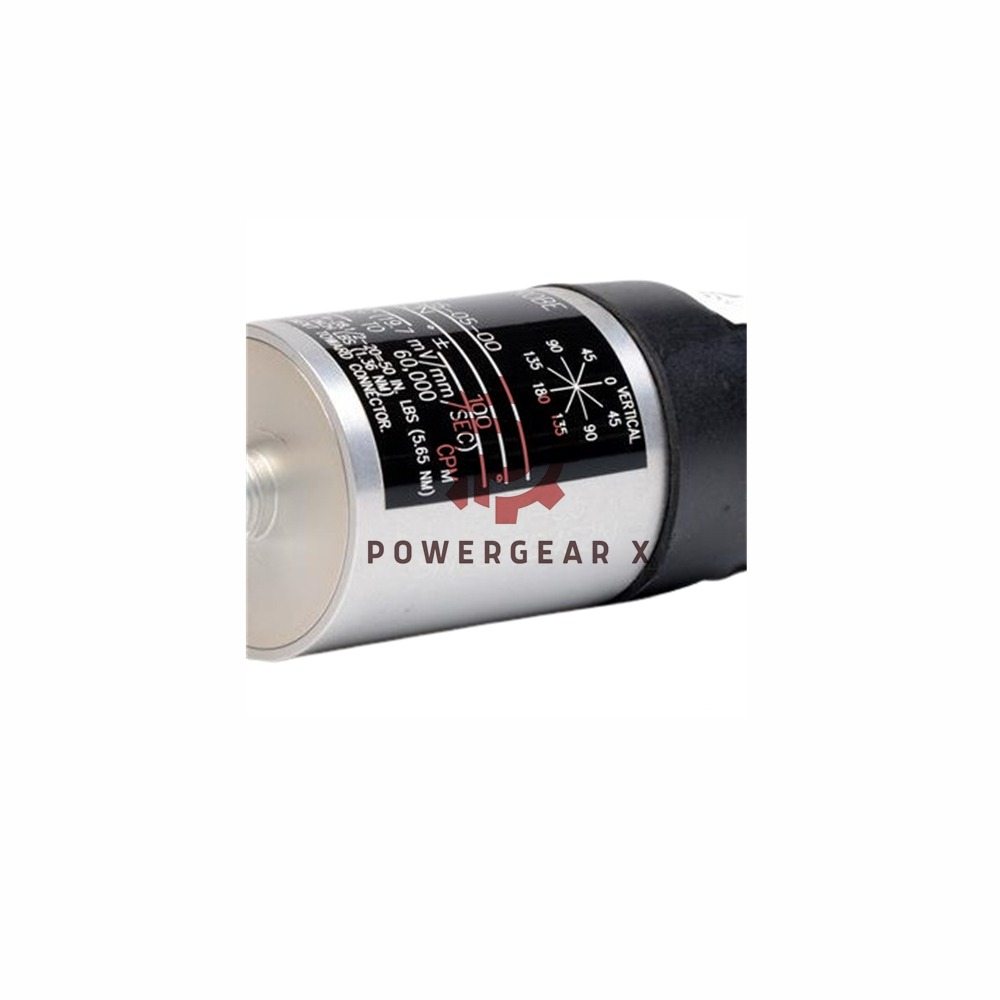

9200-03-05-10-00 Bently Nevada Two-wire Transducer

Overview

The Bently Nevada 9200-03-05-10-00 Two-Wire Velocity Seismoprobe Transducer is a highly reliable vibration measurement device designed for industrial applications. This USA-made transducer provides precise monitoring of machine conditions, ensuring efficient maintenance and reduced downtime. Featuring excellent shock resistance, a wide frequency range, and environmental robustness, it is an ideal choice for demanding environments.

Features

• Wide Frequency Response: Covers 4.5 to 1000 Hz, suitable for diverse applications.
• Robust Design: Withstands harsh operating conditions, including extreme temperatures from -29°C to +121°C (-20°F to +250°F).
• High Sensitivity: Delivers 20 mV/mm/s (500 mV/in/s) with ±5% accuracy.
• Durable Materials: Made of anodized aluminum with neoprene gaskets for reliability.
• Extended Lead Length: Supports up to 305 meters (1,000 feet) of lead wire for flexible installations.

Technical Specifications

Brand/Model: Bently Nevada 9200-03-05-10-00

• Suffix Explanation:
  • 03: Frequency response of 90 ±2.5 Hz (270 CPM).
  • 05: Terminal block with top-mount configuration, no cable.
  • 10: Circular connector with M10X1 stud.
  • 00: No agency approvals required.
• Amplitude Linearity: ±5% from 0.01 to 5.0 in/s at 100 Hz.
• Shock Resistance: Handles 50 g peak acceleration along the non-sensitive axis.
• Transverse Sensitivity: ±10% maximum relative to the sensitive axis at 100 Hz.
• Material: Anodized aluminum case and polyphenylene sulfide terminal block.
• Weight: Approx. 300 grams (10.5 ounces).
• Mounting Torque: M10X1 requires 5.6 N•m (50 in•lb).
• Dynamic Operating Range: Up to 2.54 mm (0.100 in) peak-to-peak displacement.
• Velocity Range: 25 mm/s (1 in/s) at +22°C with a 10 kΩ load.

FAQ

Q1: What is the primary application of this transducer?
The Bently Nevada 9200 series is designed for vibration monitoring and predictive maintenance in industrial machinery.

Q2: Is this device compatible with long lead wires?
Yes, it supports lead wires up to 305 meters (1,000 feet), but frequency roll-off may occur at longer lengths.

Q3: What type of approvals are available for this model?
This specific configuration (suffix 00) does not require agency approvals.

Q4: Can the transducer handle high temperatures?
Yes, it operates reliably in temperatures from -29°C to +121°C.

Check official datasheet for more detailed information:9200 and 74712 Seismoprobe Velocity Transducers Datasheet
