9200-03-06-10-00 | Two-wire Velocity Seismoprobe Transducer

Overview

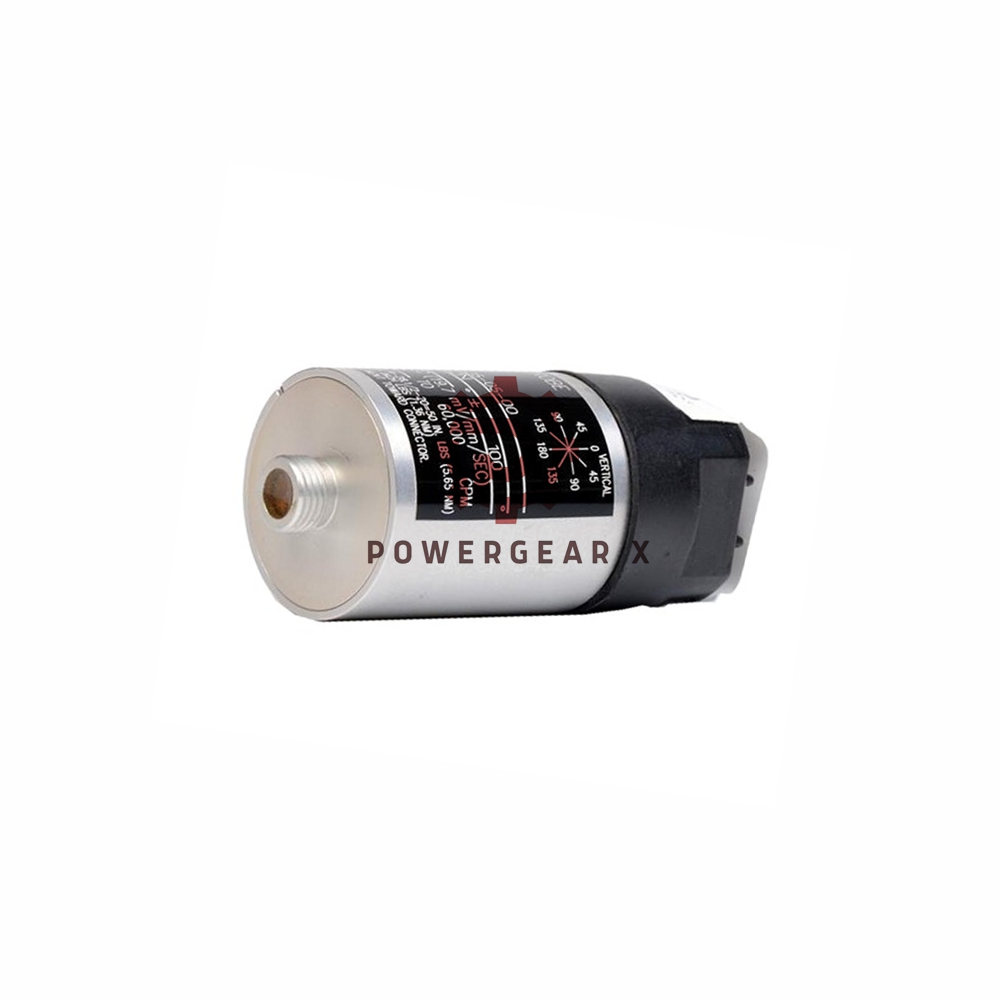

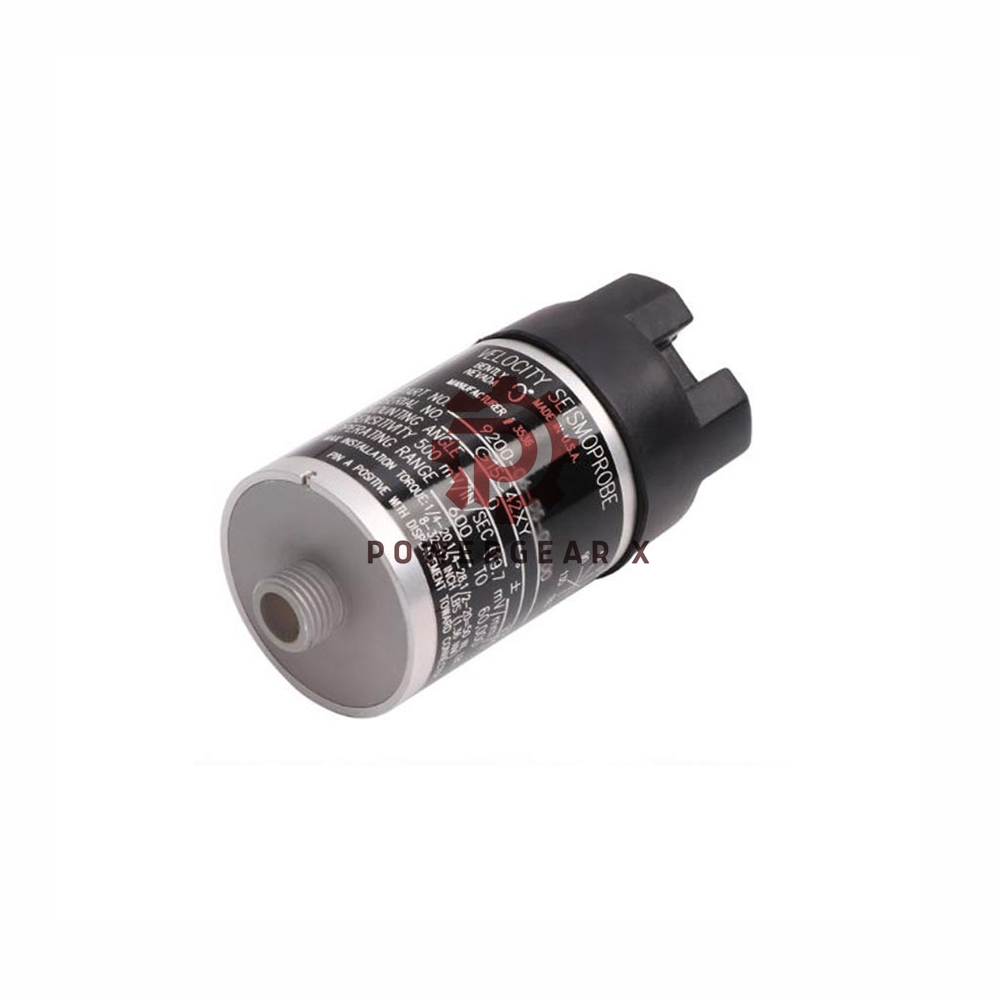

The Bently Nevada 9200-03-06-10-00 Velocity Seismoprobe is a high-performance, two-wire velocity transducer designed for industrial vibration monitoring applications. This transducer is widely used in machinery protection systems due to its precise measurements, robust construction, and customizable configurations to meet various operational needs.

Features

• Customizable Options: Includes top-mount connectors, circular mounting bases, and various agency approvals.
• High Sensitivity: Provides 20 mV/mm/s (500 mV/in/s) with ±5% accuracy.
• Durable Build: Made with anodized aluminum and neoprene gaskets, ensuring longevity in demanding environments.
• Wide Frequency Response: Covers a range from 4.5 Hz to 1000 Hz (+0, -3 dB).
• Compact Design: Lightweight and compact, suitable for various installation scenarios.
• Temperature Stability: Sensitivity temperature coefficient of 0.2%/°C ensures reliable performance across operating conditions.

Technical Specifications

• Brand and Model: Bently Nevada 9200-03-06-10-00
• Transducer Mounting: Angle calibration at 90° ±2.5; minimum operating frequency of 4.5 Hz.
• Connector Option: Top-mount for easy installation.
• Mounting Base: Circular base with an M10X1 stud.
• Case Material: Anodized aluminum A204.
• Height: 102 mm (4 inches) typical.
• Diameter: 41 mm (1.6 inches).
• Weight: Approximately 300 grams (10.5 ounces).
• Sensitivity: 20 mV/mm/s (500 mV/in/s).
• Frequency Response: From 4.5 Hz to 1 kHz (+0, -3 dB typical).
• Coil Resistance: 1.25 kΩ ±5%.
• Velocity Range: 25 mm/s (1 in/s) peak at +22 °C.
• Dynamic Operating Range: Maximum displacement of 2.54 mm (0.100 in) peak to peak.

Suffix Meaning:

• 03: Calibration angle option (90° ±2.5, 4.5 Hz).
• 06: Top-mount connector.
• 10: Circular mounting base with M10X1 stud.
• 00: No agency approval required.

FAQ

Q1: What is the sensitivity of the Bently Nevada 9200 transducer?
A: The sensitivity is 20 mV/mm/s (500 mV/in/s) with ±5% accuracy.

Q2: What is the operating frequency range?
A: It operates from 4.5 Hz to 1 kHz (+0, -3 dB typical).

Q3: Can this transducer withstand harsh environments?
A: Yes, it is constructed with anodized aluminum and neoprene gaskets for durability.

Q4: What is the purpose of the M10X1 stud?
A: It provides secure and reliable mounting for the transducer.

Q5: Is there an option for agency approval?
A: The 9200-03-06-10-00 model does not require agency approval, but other configurations may include this option.

Check official datasheet for more detailed information:9200 and 74712 Seismoprobe Velocity Transducers Datasheet
