9200-06-05-10-00 Bently Nevada Two-wire Transducer

Overview

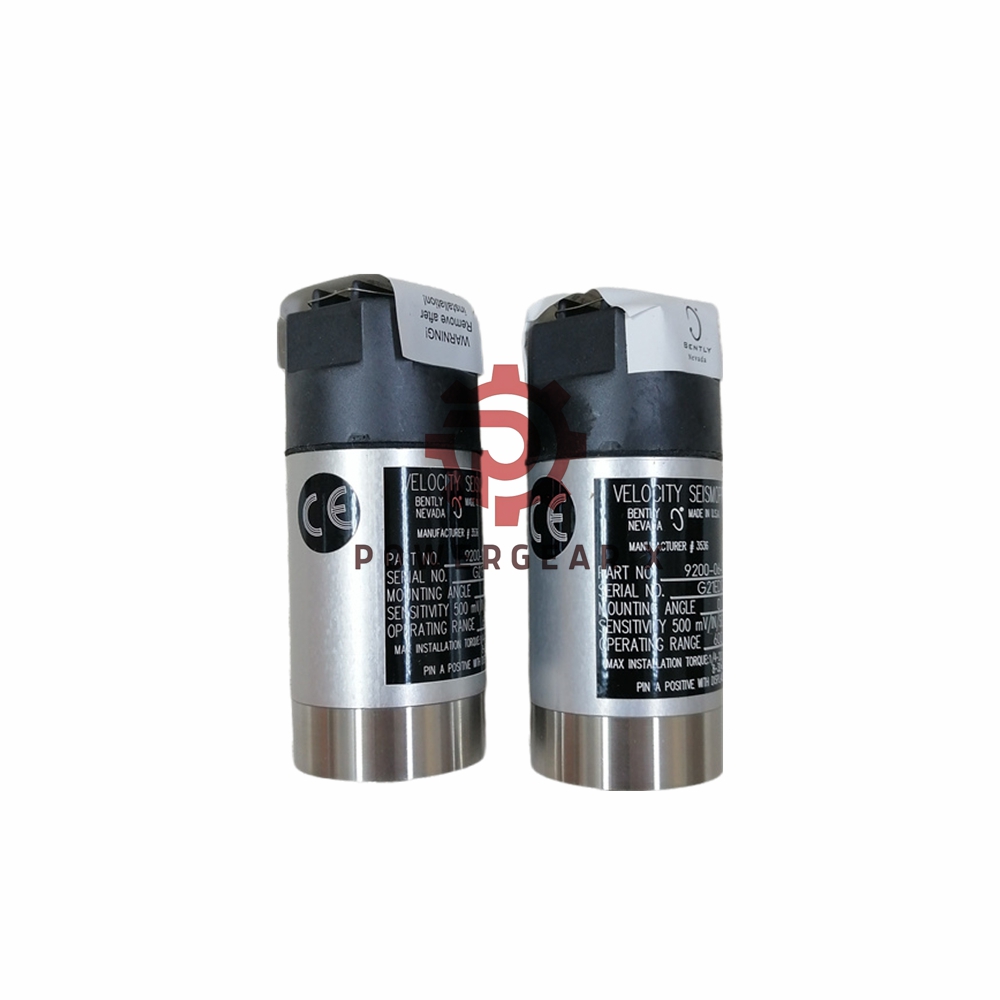

The Bently Nevada 9200-06-05-10-00 Two-Wire Velocity Seismoprobe Transducer is a precision device engineered to monitor and analyze casing vibrations in industrial machinery. Designed with a focus on durability, accuracy, and performance, this transducer offers exceptional sensitivity and a wide operating range, making it ideal for demanding environments.

Features

• High Accuracy: Sensitivity of 20 mV/mm/s (500 mV/in/s), ±5% for precise vibration measurement.
• Durable Build: Anodized aluminum case and neoprene gasket ensure resilience in harsh conditions.
• Temperature Resistance: Operates effectively from -29°C to +121°C (-20°F to +250°F).
• Compact Design: Diameter of 41 mm (1.6 in) and height of 102 mm (4 in) for easy installation.
• Extended Wire Length: Up to 305 meters (1,000 feet) between transducer and monitor.

Technical Specifications

Brand: Bently Nevada
Model: 9200-06-05-10-00

• Suffix Meaning:
  • 06: ±100, 10 Hz frequency response.
  • 05: Terminal block top mount, no cable.
  • 10: Circular mounting base, M10X1 stud.
  • 00: No agency approvals required.

Performance:

• Amplitude Linearity: ±5% from 0.01 to 5.0 in/s at 100 Hz.
• Frequency Response: 4.5 to 1,000 Hz, ±0, -3 dB.
• Polarity: Pin A positive relative to Pin B when velocity is toward the connector.

Environmental Limits:

• Operating and storage temperature range: -29°C to +121°C.
• Shock resistance: Withstands up to 50 g peak acceleration.

Physical Dimensions:

• Weight: 300 grams (10.5 ounces).
• Mounting torque: 5.6 N•m (50 in•lb).

Dynamic Range: 2.54 mm (0.100 in) peak-to-peak displacement.

FAQ

1. What does the model number suffix indicate?

• 06 specifies frequency response, 05 refers to mounting type, 10 denotes the circular M10X1 stud, and 00 indicates no agency approvals are required.

2. How is the device connected to the monitor?

• The transducer supports up to 305 meters (1,000 feet) of lead wire length for connection to a 3300 or 3500 monitor.

3. Is calibration required?

• Yes, proper calibration ensures sensitivity and accuracy. Contact Bently Nevada for detailed calibration data.

4. Can it operate in extreme temperatures?

• Yes, it performs reliably in temperatures ranging from -29°C to +121°C.

Check official datasheet for more detailed information:9200 and 74712 Seismoprobe Velocity Transducers Datasheet
