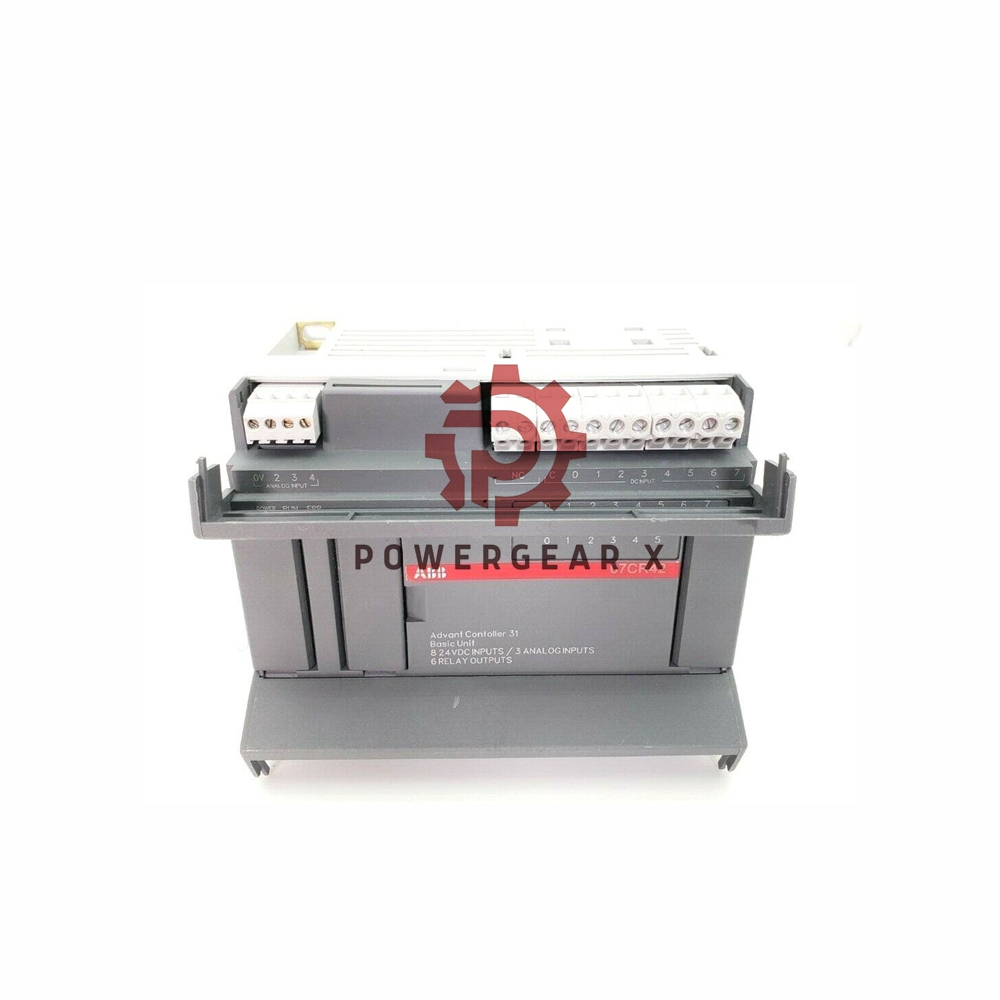

ABB 07-CR-42 1SBP260023R1001 Central Unit

Overview

The ABB 07-CR-42-24VDC PLC is a compact and reliable distributed automation solution designed for a wide range of industrial applications. This AC31 PLC integrates a mix of digital inputs, digital outputs, and analog inputs, offering versatility in controlling various automation processes. With a memory size of 34 kB, this unit ensures reliable performance and efficient processing for automation tasks.

Features

• Memory: 34 kB total memory with non-volatile RAM for user data and Flash EPROM for the program.
• Inputs & Outputs:
  • 8 digital inputs (24V DC)
  • 6 relay outputs
  • 3 analog inputs
• Speed: Executes 1000 instructions in 1.2 ms (65% logic, 35% word).
• Real-time Clock: Yes, for time-sensitive applications.
• Programmable: Supports programming through AC31GRAPH software.
• Environmental Resistance: Suitable for operation in temperatures ranging from 0°C to +55°C.

Technical Specifications

• Model: ABB 07CR42 07-CR-42 1SBP260023R1001
• Product ID: 1SBP260023R1001
• Supply Voltage: DC 24 V
• Max Operating Altitude: 2000 m
• Max Frequency: 7 kHz hardware counter input
• Max Analog I/Os: 51 AI
• Max Digital I/Os: 110
• Output Current: 2 A
• Real-time Clock: Yes
• Mounting: Compatible with TH35-15 (35 x 15 mm) and TH35-7.5 (35 x 7.5 mm) DIN rails
• Country of Origin: France
• Gross Weight: 0.8 kg
• Storage Temperature: -40°C to +75°C
• Frame Size: Undefined

FAQ

Q: What is the main function of the 07CR42 PLC?
A: The 07CR42 is a versatile PLC designed for controlling various industrial automation processes by managing digital and analog inputs/outputs.

Q: How do I install the 07CR42 PLC?
A: This PLC can be mounted on TH35-15 or TH35-7.5 DIN rails, commonly used for industrial control systems.

Q: What is the memory configuration of this PLC?
A: The 07CR42 features a 34 kB memory, with 4.4 kB user data and non-volatile RAM for persistent storage.

Q: Can I use the 07CR42 for real-time applications?
A: Yes, it includes a real-time clock, making it suitable for applications where time accuracy is crucial.

For more detailed information, please check official datasheet: 1SBP260023R1001
