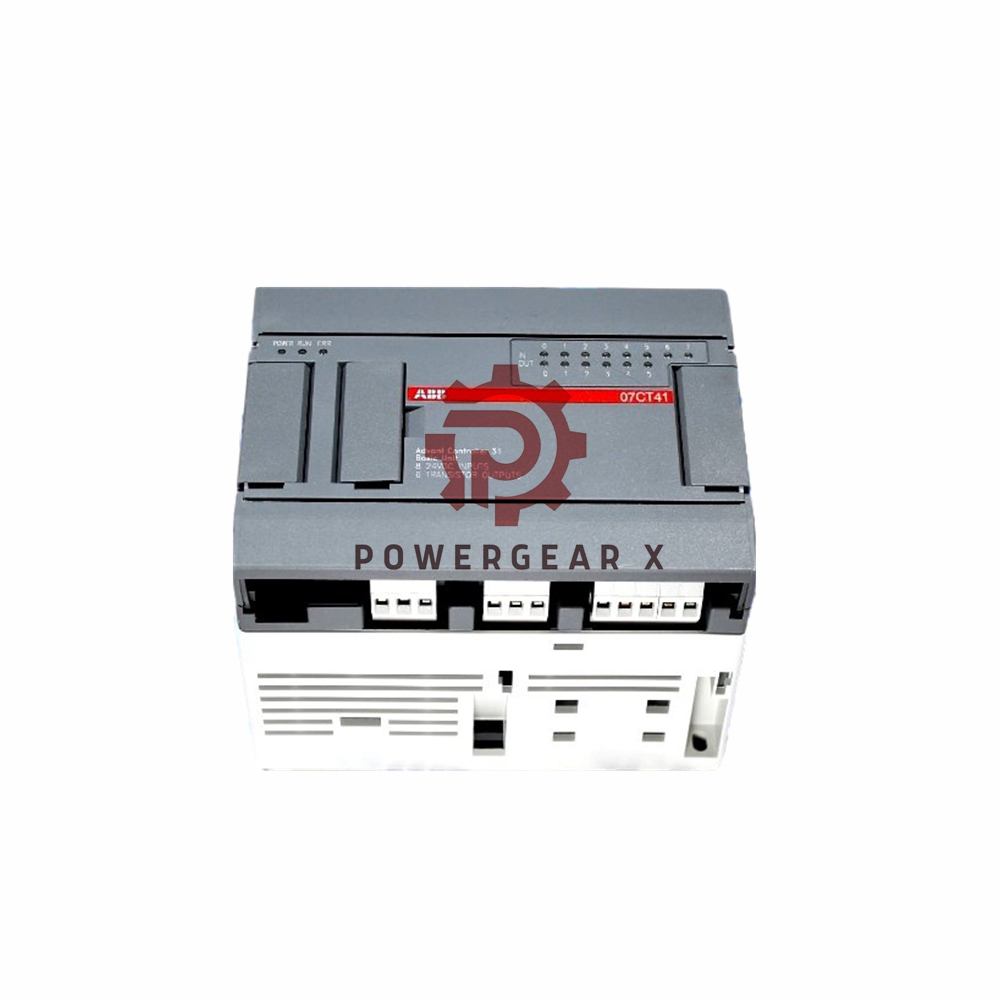

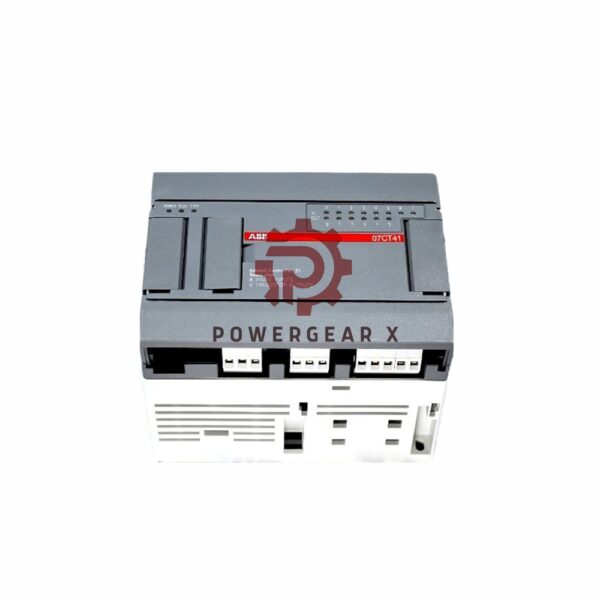

ABB 07-CT-41 Central Unit 1SBP260021R1001

Overview

The 07-CT-41  07CT41 is a central extensible basic unit designed for industrial automation. It features 8 isolated 24 V DC inputs and 6 transistor outputs capable of handling 0.5 A at 24 V DC. This unit offers versatility with its RS-232 interface for programming, as well as ASCII or MODBUS communication protocols. Powered by a 24 V DC power supply, it provides reliable and flexible control for various applications in automation systems.

Key Features

• 8 Isolated 24 V DC Inputs: Provides reliable signal reception from different sources.
• 6 Transistor Outputs (24 V DC, 0.5 A): Controls actuators, sensors, or other output devices with ease.
• RS-232 Interface: Supports programming and communication through ASCII or MODBUS protocols.
• Power Supply: 24 V DC for optimal performance and energy efficiency.
• Expandable: Easily extendable to meet increasing system requirements.

Technical Specifications

• Brand: ABB
• Model: 07 CT 41/ 07CT41 1SBP260021R1001
• Power Supply: 24 V DC
• Inputs: 8 isolated 24 V DC
• Outputs: 6 transistor outputs (24 V DC, 0.5 A)
• Communication Interface: RS-232 (supports ASCII and MODBUS protocols)
• Part Number: 1SBP260022R1001
• Suffix Meaning: “R1001” indicates the specific product variant in the series.

FAQ

• Q: What power supply does the 1SBP260021R1001 require?
  A: It requires a 24 V DC power supply.
• Q: Can this unit support remote programming?
  A: Yes, it can be programmed via the RS-232 interface using ASCII or MODBUS communication.
• Q: How many outputs does the 1SBP260021R1001 have?
  A: It features 6 transistor outputs, each providing 0.5 A at 24 V DC.

For more detailed information, please check official datasheet: 1SBP260022R1001
