ABB 07-DC-91 Digital Input/Output Module

Overview

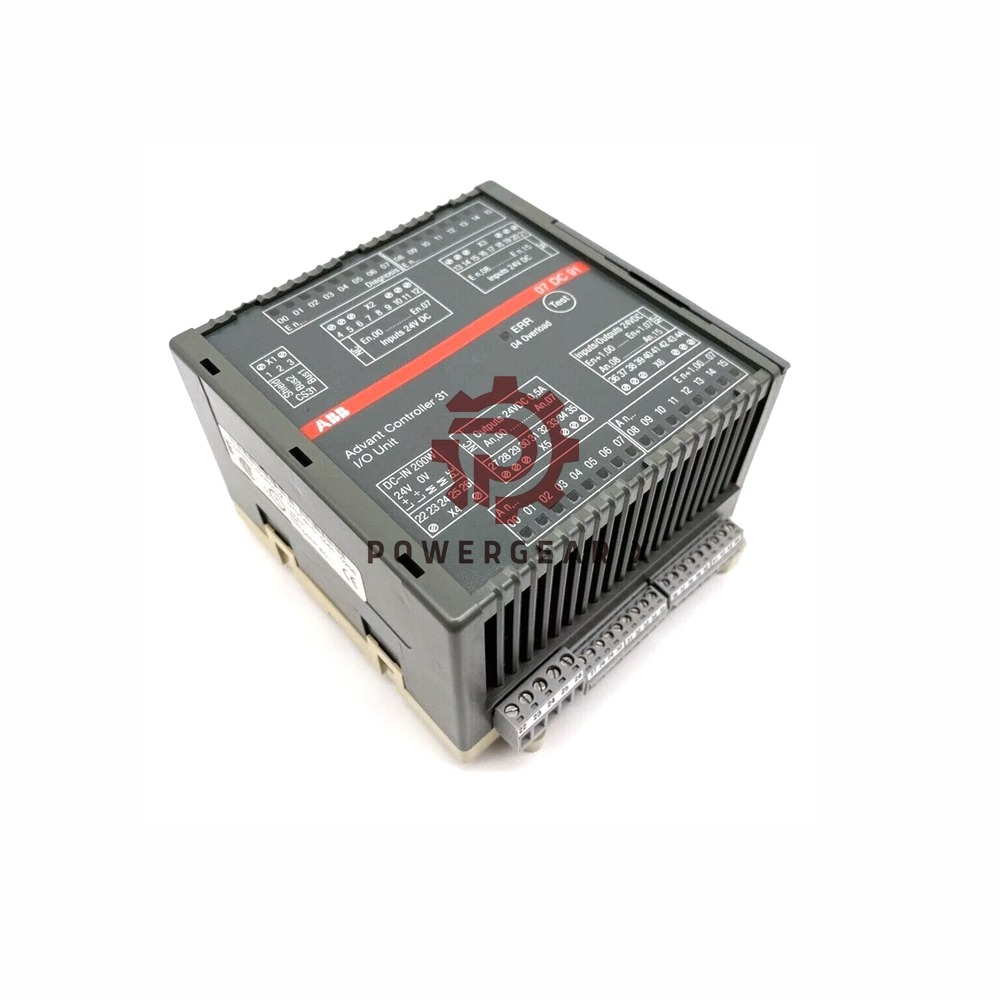

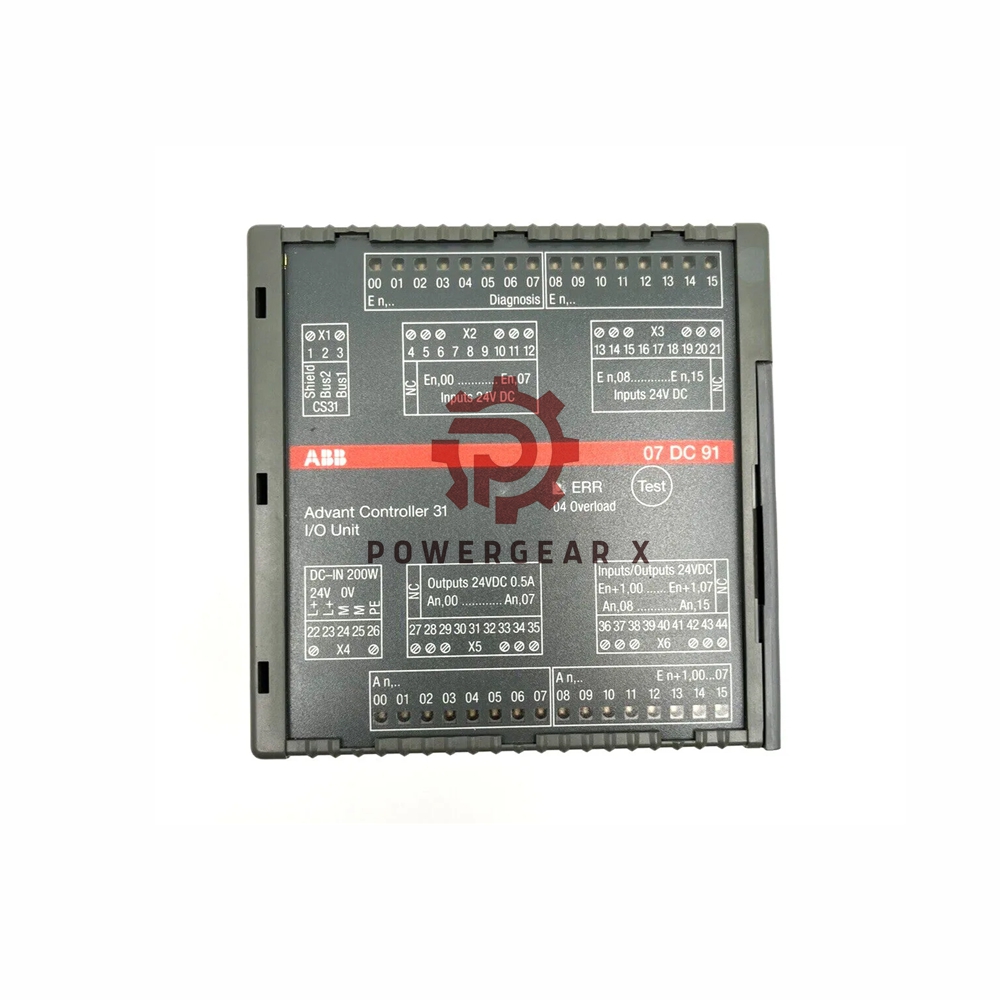

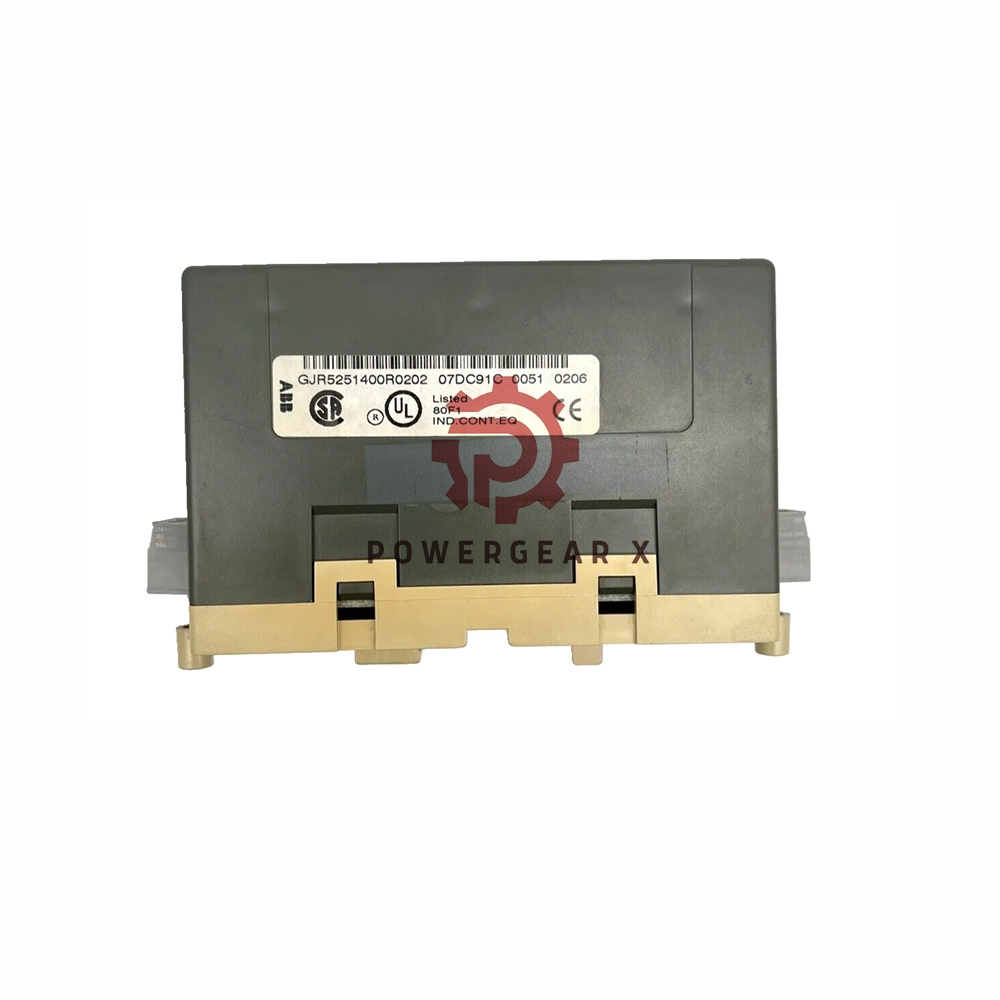

The ABB 07 DC 91 GJR5251400R0202 is a versatile digital I/O module, designed for use in distributed automation systems, providing reliable and efficient performance with a range of features suited for industrial applications. It integrates 16 digital inputs, 8 digital outputs, and 8 configurable I/Os, offering enhanced flexibility for diverse control processes.

Features:

• Number of Inputs/Outputs:
  • 16 Digital Inputs (24 V DC)
  • 8 Digital Transistor Outputs (24 V DC)
  • 8 Configurable Inputs/Outputs
• Max Current Output: 0.5 A per output
• Supply Voltage: 24 V DC
• Interfaces: 1 CS31 system bus interface for seamless integration
• Power Consumption: Max 10 W under load
• Protection: Reversed polarity protection for power connections
• Diagnostics: 33 LEDs for operation and error messages
• Mounting: Fits on DIN Rail TH35-15 and TH35-7.5 (IEC 60715)
• Degree of Protection: IP20 for environmental safety
• Country of Origin: Manufactured in Germany, Spain, and the US

Technical Specifications:

• Rated Supply Voltage: 24 V DC
• Max Current Consumption (No Load): 0.15 A
• Max Power Dissipation (No Load): 5 W
• Max Power Dissipation (Under Load): 10 W
• Ambient Temperature Range: 0…55 °C (Operating), -25…75 °C (Storage)
• Mounting Rail: IEC 60715 compatible
• Cable Cross-Section: 0.08 … 1.5 mm² for signal and system bus

FAQ:

1. What is the supply voltage for the 07 DC 91 GJR5251400R0202?
   • The module operates with a rated supply voltage of 24 V DC.
2. How many digital I/Os does the module support?
   • It supports 16 digital inputs and 8 digital outputs, with 8 configurable I/Os.
3. What is the maximum current output per digital output?
   • The maximum output current is 0.5 A per output.
4. What is the ambient temperature range for operation?
   • The module operates within a temperature range of 0…55 °C.

For more detailed information, please check official datasheet: 106 ABB AC31 07 DC 91
