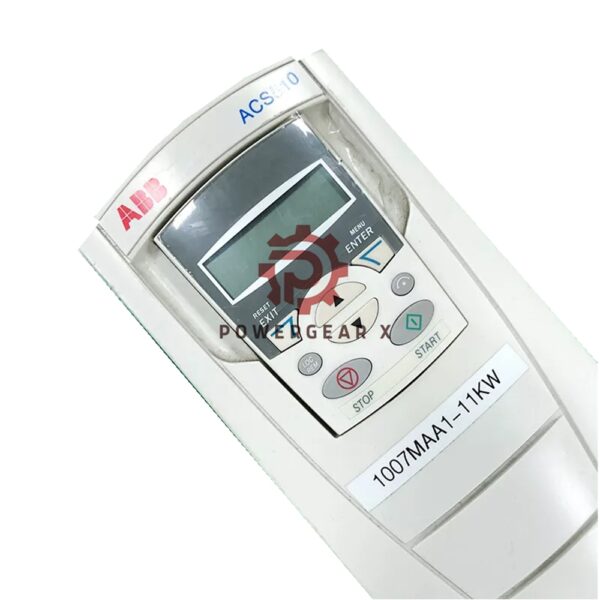

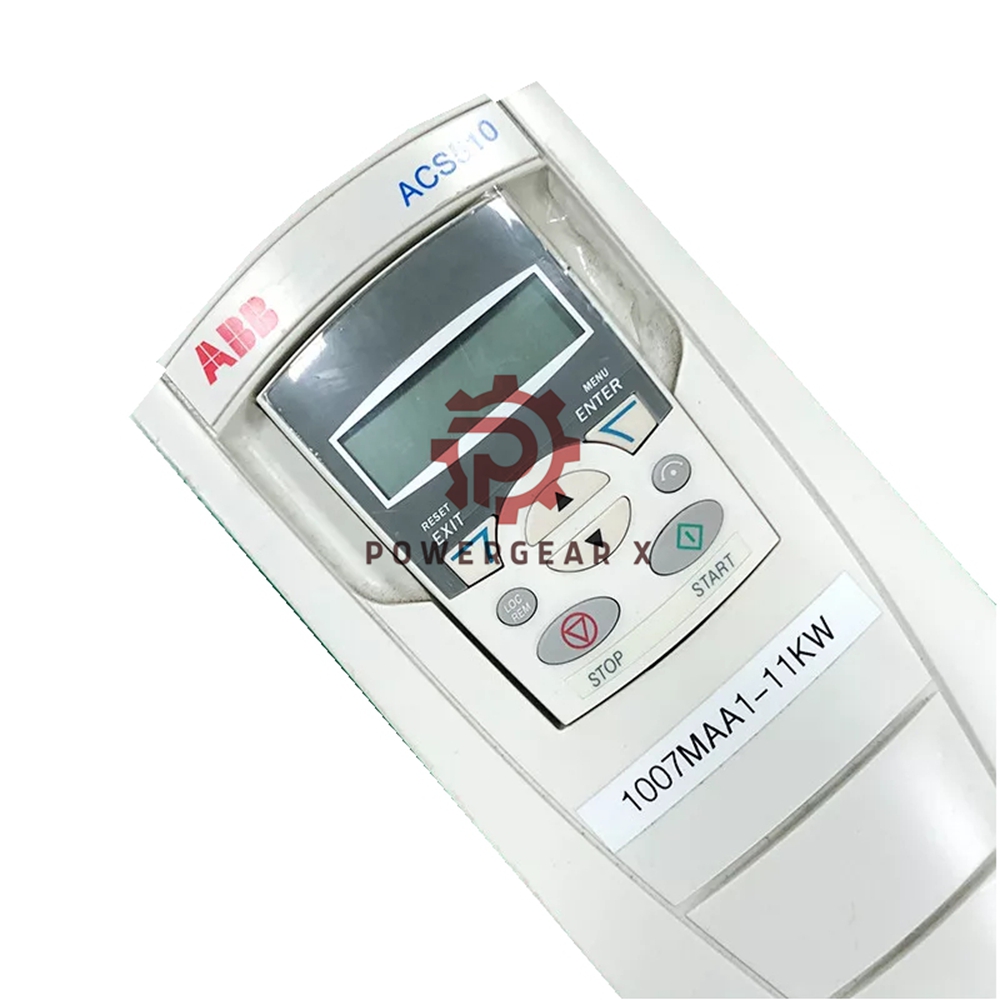

ABB ACS510-01-031A-4 ACS510 Series VFD

Overview:

The ACS510-01-031A-4 is a high-performance frequency converter from ABB, designed to provide optimal efficiency and reliability for various industrial applications. It operates at a voltage range of 380V to 480V, delivering a powerful output current of 31 A and output power of 15 kW. This unit is part of the ACS510 series, known for its compact design and advanced energy efficiency.

Key Features:

• Input Voltage Range: 380V to 480V
• Output Power: 15 kW
• Output Current: 31 A
• Frequency: 47.5 – 63 Hz
• Efficiency Level: IE2 (Energy-efficient)
• Degree of Protection: IP21, NEMA Type 1 Enclosure for robust protection against dust and water
• Temperature Rating: 40°C, making it suitable for a wide range of industrial environments
• Mounting Type: Wall-mounted for easy installation in various settings
• Application: Ideal for use in industrial automation, HVAC systems, and other machinery requiring precise speed control

Technical Specifications:

• Model: ACS510-01-031A-4
• Brand: ABB
• Frame Size: R3
• Apparent Power Output: 21 kVA
• Standby Loss: 14 W
• Losses & Efficiency: Highly efficient operation with a peak efficiency of 97.1% at 90/100% load
• WEEE Category: Not in WEEE scope

FAQs:

1. What is the input voltage range?
   • The ACS510 operates within a voltage range of 380V to 480V.
2. Can the unit be mounted on a wall?
   • Yes, the ACS510 is designed for wall-mounted installation.
3. What is the temperature rating for this model?
   • It operates efficiently in environments up to 40°C.
4. What is the efficiency of the ACS510 at full load?
   • The peak efficiency at 100% load is 92.7%.

For more detailed information, please check official datasheet: 3ABD00015749-D
