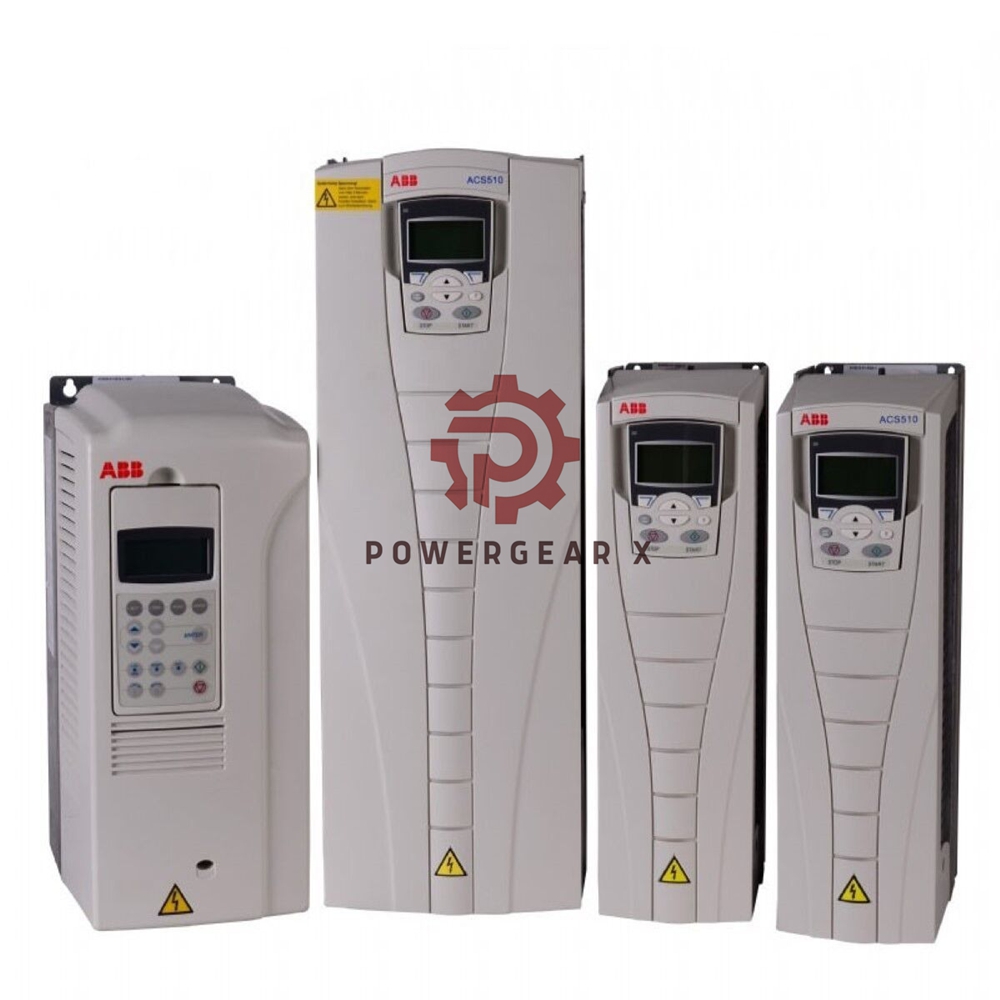

ABB ACS510-01-07A2-4 | Inverter Drive

Overview

The ABB ACS510-01-07A2-4 is a versatile frequency converter designed for energy-efficient motor control in industrial applications. It features an IP21-rated enclosure for wall-mounted installations, offering reliable performance in various environments.

Features

• Brand: ABB
• Model: ACS510-01-07A2-4
• Input Voltage: 380–480 V, 3-phase
• Output Power: 3 kW (Normal Use)
• Output Current: 7.2 A
• Frame Size: R1
• Frequency Range: 47.5–63 Hz
• Efficiency: Up to 97.5% at 90 Hz, 100% load
• Protection Rating: IP21 (NEMA Type 1)
• Standby Loss: 11 W

Technical Specifications

• Dimensions:
  • Height: 365 mm
  • Width: 225 mm
  • Depth: 465 mm
• Net Weight: 6.1 kg
• Apparent Power Output: 5.0 kVA
• Temperature Rating: 40 °C
• Enclosure Type: Wall-mounted

Applications

The ABB ACS510 is ideal for:

• HVAC systems for pumps and fans
• Industrial conveyors and mixers
• General motor control requiring precise speed adjustments

FAQ

Q1: What is the degree of protection for this model?
A1: The ACS510-01-07A2-4 comes with an IP21-rated enclosure suitable for indoor use.

Q2: Can this model handle high-efficiency demands?
A2: Yes, the frequency converter achieves a peak efficiency of 97.5% under optimal conditions.

Q3: Is it suitable for harsh environments?
A3: While IP21 provides basic protection, additional enclosures may be needed for harsh or outdoor conditions.

For more detailed information, please check official datasheet: 3ABD00015744-D
