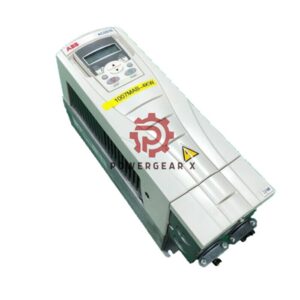

ABB ACS510-01-125A-4 | Inverter Drive

Overview:

The ACS510-01-125A-4 is a high-performance frequency converter from ABB, designed for industrial applications requiring reliable and efficient motor control. It provides a seamless and energy-efficient solution for variable speed drive systems. This model is rated for 125A and 380V with an IP21 enclosure, making it suitable for a range of environments.

Key Features:

• Output Power: 55 kW
• Apparent Power Output: 87 kVA
• Efficiency Level: IE2
• Degree of Protection: IP21 (Type 1)
• Temperature Rating: 40°C
• Input Voltage: 380V to 480V
• Frequency: 47.5 to 63 Hz
• Frame Size: R5
• Mounting Type: Wall-mounted
• Number of Phases: 3-phase

Technical Specifications:

• Brand: ABB
• Model: ACS510-01-125A-4
• Suffix Meaning: The suffix refers to the model’s specific configuration with 125A output current and IP21 protection.
• Output Current (In): 125A
• Standby Loss: 42W
• Efficiency:
  • At 0% load: 89.4%
  • At 50% load: 95.6%
  • At 100% load: 92.9%

FAQ:

Q1: What does IP21 mean for this model?
A1: IP21 means the frequency converter is protected against solid objects greater than 12mm and vertically falling drops of water.

Q2: Can this drive be used for outdoor applications?
A2: No, the IP21 rating indicates protection against water ingress is limited, making it suitable only for indoor use.

Q3: What mounting options are available?
A3: This model is wall-mounted for ease of installation.

Q4: Is the ACS510-01-125A-4 energy-efficient?
A4: Yes, it meets the IE2 efficiency standard, ensuring low operational costs.

For more detailed information, please check official datasheet: 3ABD00019055-D
