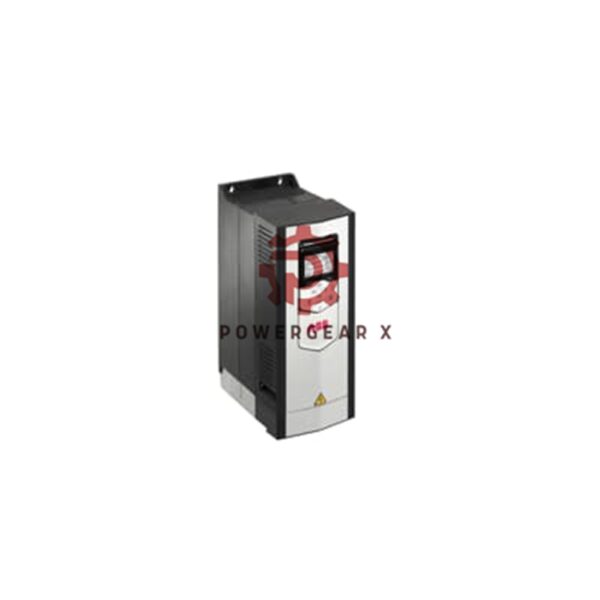

ABB ACS880-01-03A3-3 Variable Frequency Drive

Overview

The ACS880-01-03A3-3 is a highly versatile and compact frequency converter designed for industrial applications. Built for low-voltage AC drive systems, this wall-mounted single drive is ideal for use in a wide range of industries including oil and gas, mining, cement, chemicals, power plants, and more. It controls various applications such as conveyors, pumps, compressors, mixers, fans, cranes, and other industrial machinery.

Technical Specifications:

• Brand: ABB
• Model: ACS880-01
• Suffix: 03A3-3
• Output Power: 1.1 kW (Normal Use), 0.75 kW (Heavy-Duty Use)
• Input Voltage: 380–415 V
• Output Current: 3.3 A
• Frequency: 47.5–63 Hz
• Degree of Protection: IP21
• Efficiency Level: IE2
• Mounting Type: Wall-mounted (Optional cabinet installation)
• Product ID: 3AUA0000107975
• Catalog Description: LV AC industrial wall-mounted single drive, IEC: Pn 1.1 kW, 3.3 A, 400 V
• Sound Level: 50 dB(A)
• Weight: 15.432 lb
• Dimensions: 8.898 in (Length) x 16.102 in (Height) x 6.102 in (Width)
• Altitude Rating: Up to 4000 m
• Operating Humidity: 5%–95% RH
• Temperature Rating: Max 40°C
• Mounting Options: Wall or optional cabinet installation
• Enclosure Class: NEMA Type 1, IP21

FAQ:

1. What mounting options are available for the ACS880-01?
   • The ACS880-01 can be mounted directly on the wall or inside a cabinet, offering flexibility for different installation environments.
2. What type of communication does this drive support?
   • The ACS880-01 supports PROFINET IO, ensuring seamless integration with industrial Ethernet networks.
3. Is the drive suitable for harsh environments?
   • Yes, with its IP21 rating and the ability to operate in temperatures up to 40°C, the ACS880-01 is designed for demanding industrial environments.

For more detailed information, please check official datasheet: 3AUA0000107975
