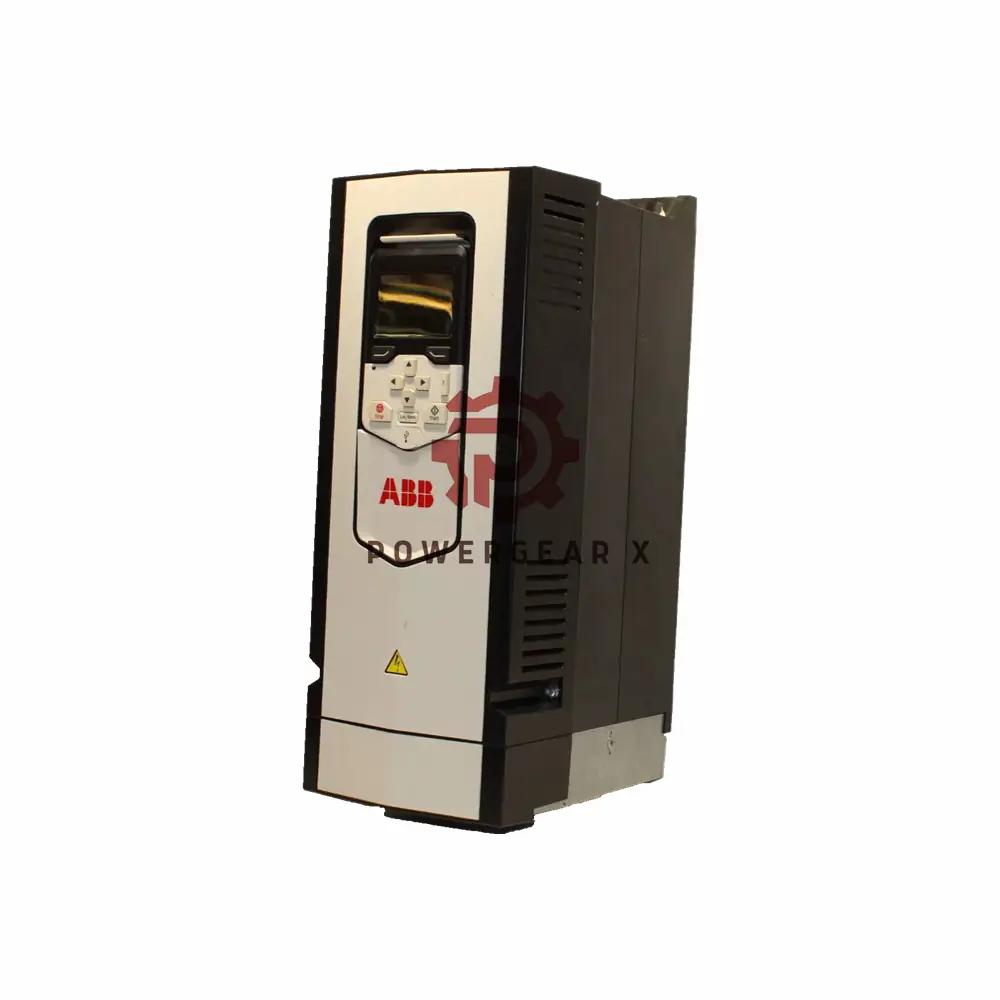

ABB ACS880-01-145A-3 Frequency Converter

Overview

The ACS880-01-145A-3 is a wall-mounted LV AC industrial drive from ABB, designed for demanding applications across a variety of industries, including oil and gas, mining, cement, chemicals, and food processing, among others. Its compact and robust design allows for flexible installation, either mounted on the wall or within a cabinet, with enclosure options available up to IP55. This drive provides seamless control for equipment such as conveyors, pumps, cranes, mixers, compressors, and fans, ensuring high operational efficiency and flexibility.

Key Features:

• Power Rating: 75 kW
• Output Current: 145 A (normal use), 138 A (light overload), 105 A (heavy-duty use)
• Input Voltage: 380 … 415 V, 3-phase
• Degree of Protection: IP21, Enclosure Type NEMA: Type 1
• Communication Protocol: PROFINET IO with support for multiple interfaces, including RS-485 and USB.
• Temperature Rating: Maximum operating temperature of 40 °C
• Frequency Range: 47.5 – 63 Hz
• Efficiency Class: IE2 (Energy-efficient)
• Sound Level: 68 dB(A)
• Standby Loss: 42 W
• Operating Humidity: 5% – 95% RH

Technical Specifications:

• Part Number: ACS880-01-145A-3
• Frame Size: R6
• Efficiency Level: IE2 (Energy-efficient design)
• Output Power: 75 kW (normal), 75 kW (light overload), 55 kW (heavy-duty use)
• Apparent Power Output: 100 kV·A
• Enclosure Protection: IP21 for general protection, with optional IP55 for harsh environments
• Communication Options: PROFINET IO, RS-485, USB, Analog Inputs: 2, Analog Outputs: 2, Digital Inputs: 6, Digital Outputs: 2

For more detailed information, please check official datasheet: 3AUA0000108026
