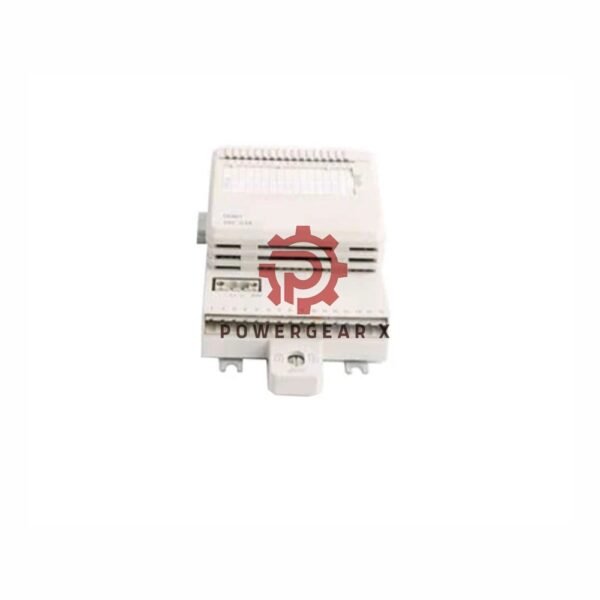

ABB AO801 3BSE020514R1 Analog Output

0 Reviews
10 in stock
  • 100% genuine products in stock with fast delivery.
  • 30-day return policy for quality assurance.
  • 12-month warranty for peace of mind.
SKU: AO801
Brands:

Product details

Technical Specifications for AO801

  • Brand: ABB
  • Model: AO801
  • Article Number: 3BSE020514R1
  • Signal Type: Unipolar, single-ended analog output
  • Channels: 8 channels (0…20 mA, 4…20 mA)
  • Resolution: 12-bit
  • Output Load: Maximum 850 Ī©
  • Current Limiting: Short-circuit-proof with current-limited output
  • Temperature Drift: 30 ppm/Ā°C (typical), 50 ppm/Ā°C (maximum)
  • Maximum Cable Length: 600 meters (656 yards)
  • Power Dissipation: 3.8 W
  • Current Consumption:
    • +5 V Modulebus: 70 mA
    • +24 V External: 200 mA
  • Field Wiring: Supports wire sizes from 0.05 to 2.5 mmĀ² (solid), 0.05 to 1.5 mmĀ² (stranded), with a recommended torque of 0.5-0.6 Nm.
  • Stripping Length: 6-7.5 mm (0.24-0.30 inches)

Diagnostics

  • LED Indicators: Provides status feedback (Run or Fault) and indicates error conditions such as module errors, channel errors, or warnings.

Certifications & Environment

  • CE Mark: Yes
  • Electrical Safety Standards: EN 61010-1, UL 61010-1
  • Hazardous Location Certification: C1 Div 2, ATEX Zone 2
  • Marine Certifications: ABS, BV, DNV, LR
  • Operating Temperature: 0 to 55Ā°C (32 to 131Ā°F)
  • Storage Temperature: -40 to 70Ā°C (-40 to 158Ā°F)
  • Relative Humidity: 5 to 95%, non-condensing
  • Pollution Degree: 2 (IEC 60664-1)
  • Protection Class: IP20 (IEC 60529)
  • RoHS and WEEE Compliance: Yes

FAQ

1. What is the maximum output load for the AO801 module?
The maximum output load is 850 Ī©.

2. Can the AO801 handle hazardous environments?
Yes, the AO801 is certified for use in hazardous locations, including C1 Div 2 and ATEX Zone 2 environments.

3. What is the recommended wiring size for the AO801?
For solid wire, 0.05 to 2.5 mmĀ² (30-12 AWG), and for stranded wire, 0.05 to 1.5 mmĀ² (30-12 AWG).

4. How does the module handle errors?
The module performs error detection and sets the outputs to a predetermined state to ensure safety in the event of a fault.

For more detailed information, please check official datasheet:Product-AO801

Additional information

Weight 0.2 kg
Dimensions 110 × 58.5 × 86.1 mm
Country Of Origin

United States
