Overview

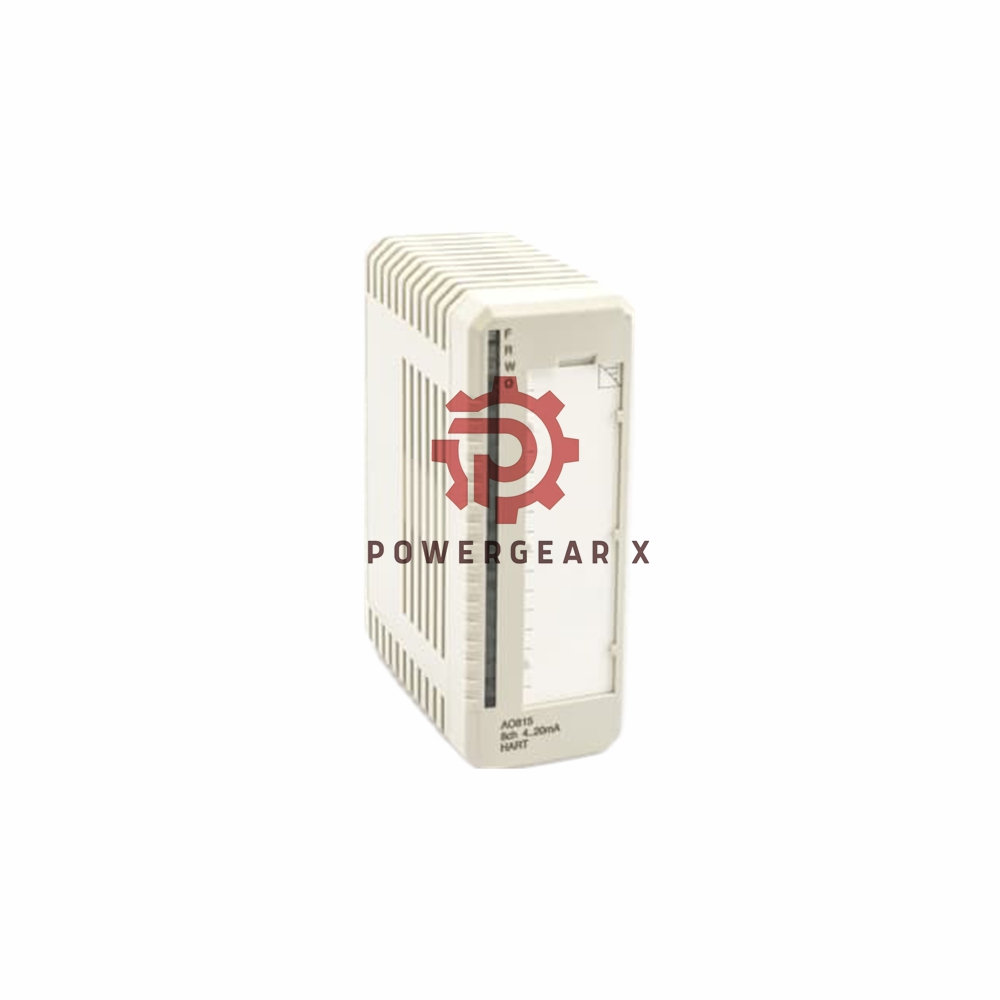

The AO815 Analog Output Module, designed for industrial automation systems, offers 8 unipolar analog output channels, each providing a 4-20 mA signal. This module is equipped with advanced self-diagnostic features to ensure reliable operation and immediate fault detection.
Technical Specifications:
- Brand: ABB
- Model: AO815
- Part Number: 3BSE052605R1
- Output Type: 4-20 mA, unipolar
- Number of Channels: 8
- Resolution: 12 bits
- Isolation: Groupwise isolated from ground
- Under/Over Range: -12.5% to +15%
- Maximum Load: 750 Ω
- Current Limiting: Short-circuit proof, current-limited output
- Output Error: Max. 0.1%
- Temperature Drift: Max. 50 ppm/°C
- Update Cycle: 10 ms
- Filter Rise Time (0-90%): 23 ms
- Max. Field Cable Length: 600 meters (656 yards)
- Rated Insulation Voltage: 50 V
- Power Consumption: 3.5 W (typical)
- Modulebus Current Consumption: 125 mA (5 V)
- External Power Consumption (24 V): Max. 165 mA
- Diagnostics:
- External and Internal Channel Errors
- Module Error (Output transistor, Short Circuit, Checksum, etc.)
- LED indicators for Fault (F), Run (R), Warning (W), and Output Status (O).
Environment and Certifications:
- Temperature Range: Operating: 0 to +55 °C (+32 to +131 °F); Storage: -40 to +70 °C (-40 to +158 °F)
- Electrical Safety: Compliant with EN 61010-1, UL 61010-1, EN 61010-2-201 standards.
- Hazardous Location Rating: ATEX Zone 2, C1 Div 2, cULus.
- Marine Certification: BV, DNV, LR.
- EMC Compliance: EN 61000-6-4, EN 61000-6-2.
- Pollution Degree: Degree 2 as per IEC 60664-1.
- Protection Class: IP20 (IEC 60529).
- Corrosion Protection: ISA-S71.04: G3.
- RoHS & WEEE Compliance: DIRECTIVE/2011/65/EU, DIRECTIVE/2012/19/EU.
Compatibility:
- Compatible with ABB MTUs: TU810, TU812, TU814, TU830, TU833.
Dimensions:
- Width: 45 mm (1.77″)
- Depth: 102 mm (4.01″) or 111 mm (4.37″) including connector.
- Height: 119 mm (4.7″)
- Weight: 0.21 kg (0.46 lbs.)
For more detailed information, please check official datasheet:Product-AO815
