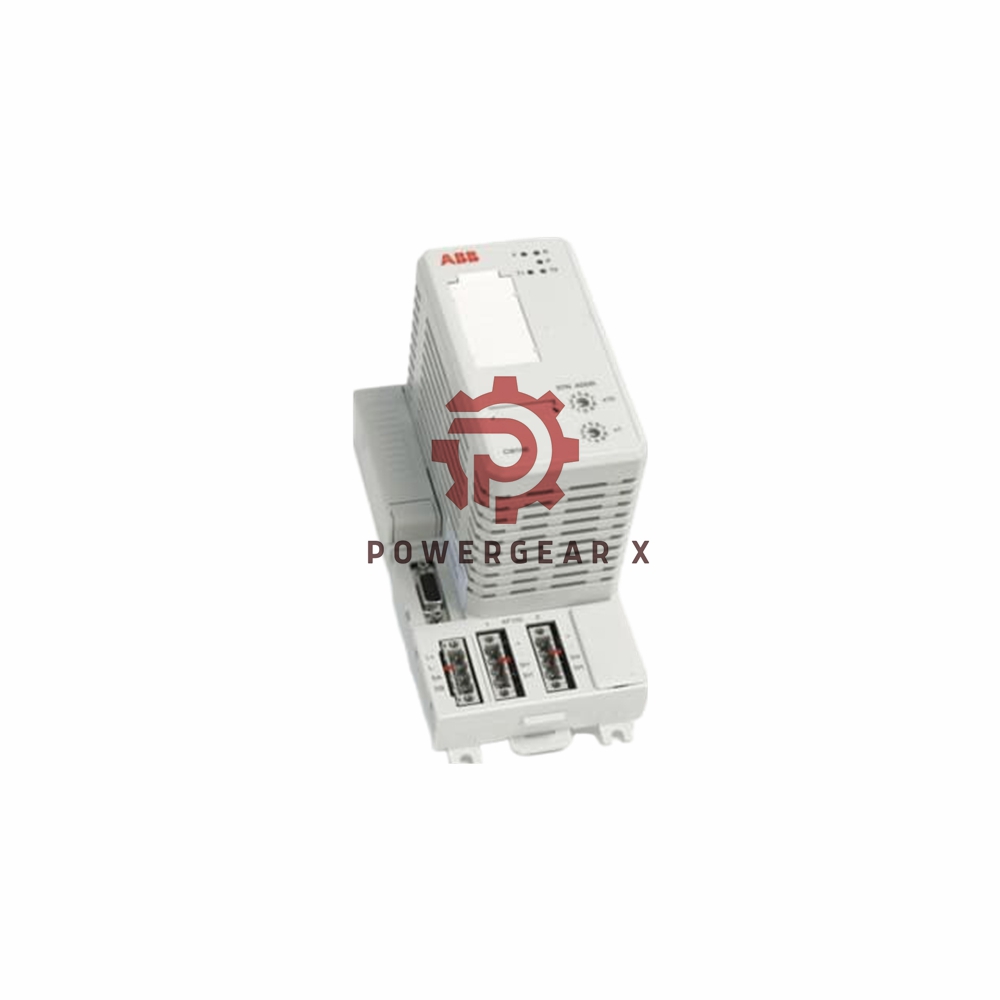

ABB CI810 3BSE008504R1 Fieldbus Communication Interface

Overview:

The ABB CI810 Fieldbus Communication Interface is designed to connect an Advant Controller to the Advant Fieldbus 100 and manage communication with the S800 I/O modules connected to the Modulebus. It provides a seamless interface for efficient data exchange and control in industrial automation systems.

Key Features:

• Connectivity: Establishes communication between Advant Controller and S800 I/O modules.
• Termination Board: Houses external connections, grounded through a metallic spring connector.
• Monitoring: Offers screw terminals for power supply and redundant power supply monitoring.
• Fieldbus Support: Supports Advant Fieldbus 100 twisted-pair communication.

Technical Specifications:

• Product Name: CI810 Fieldbus Communication Interface
• Product ID: 3BSE008504R1
• Brand: ABB
• Termination Board: Metal spring connector for grounding.
• Application: Ideal for integrating Advant Controllers with S800 I/O systems.
• Package Dimensions:
  • Width: 134.62 mm (5.3 in)
  • Height: 93.98 mm (3.7 in)
  • Depth: 154.94 mm (6.1 in)
• Material: Zinc alloy
• Standards: 12798

Common Applications:

• Fieldbus communication for industrial automation.
• Integration of Advant Controllers with I/O systems.
• Redundant power monitoring in field installations.

FAQ:

1. What is the CI810 used for?
2. The CI810 is used to connect Advant Controllers to the S800 I/O modules via the Advant Fieldbus 100.
3. Does it support redundant power supply?
4. Yes, it provides screw terminals for monitoring both primary and redundant power supplies.
5. What is the material used for the termination board?
6. The termination board is made from zinc alloy.

For more detailed information, please check official datasheet: S800_I_O_Modules_and_Termination_Units
