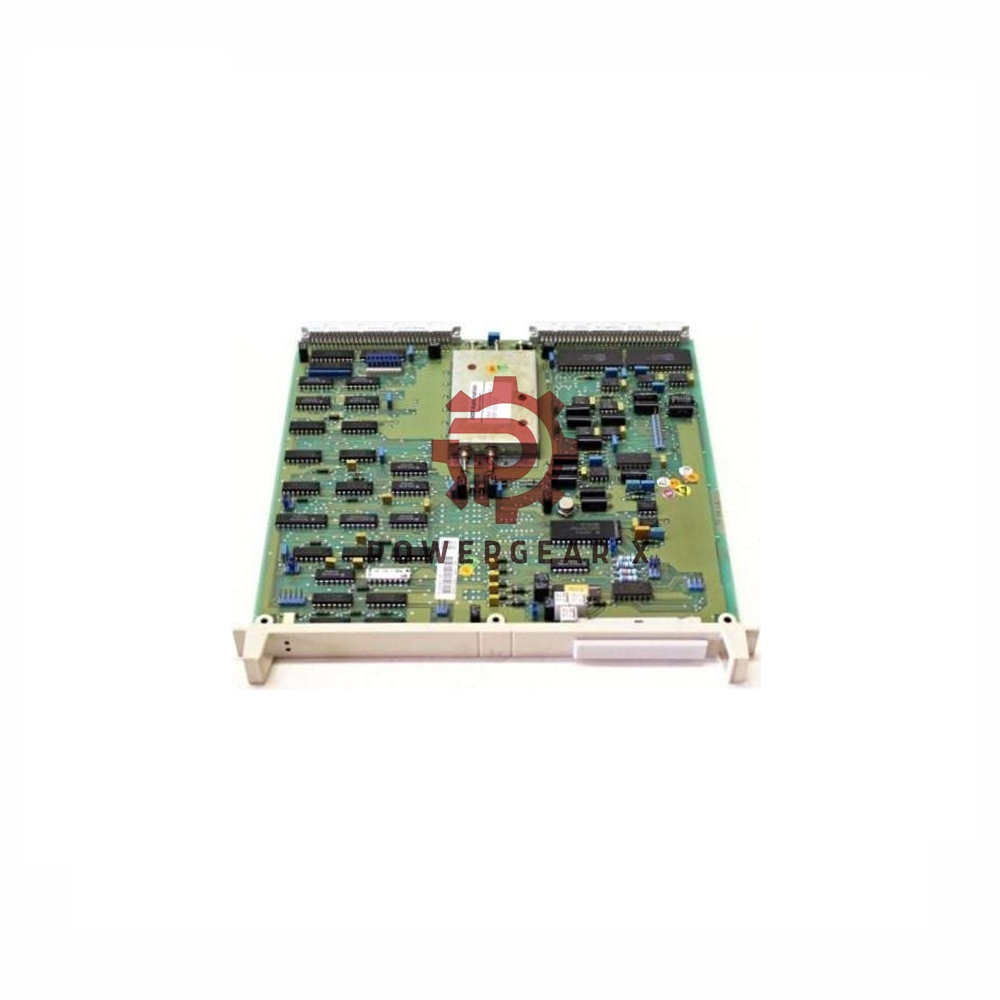

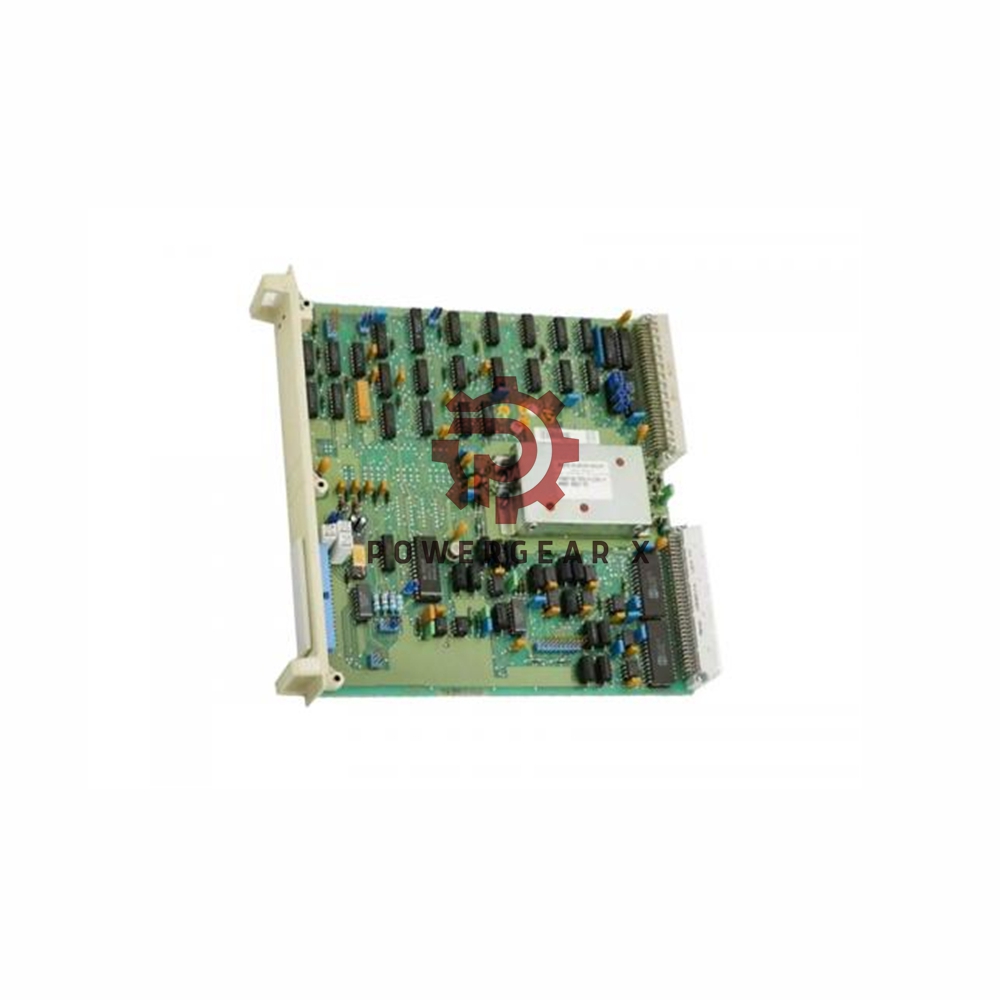

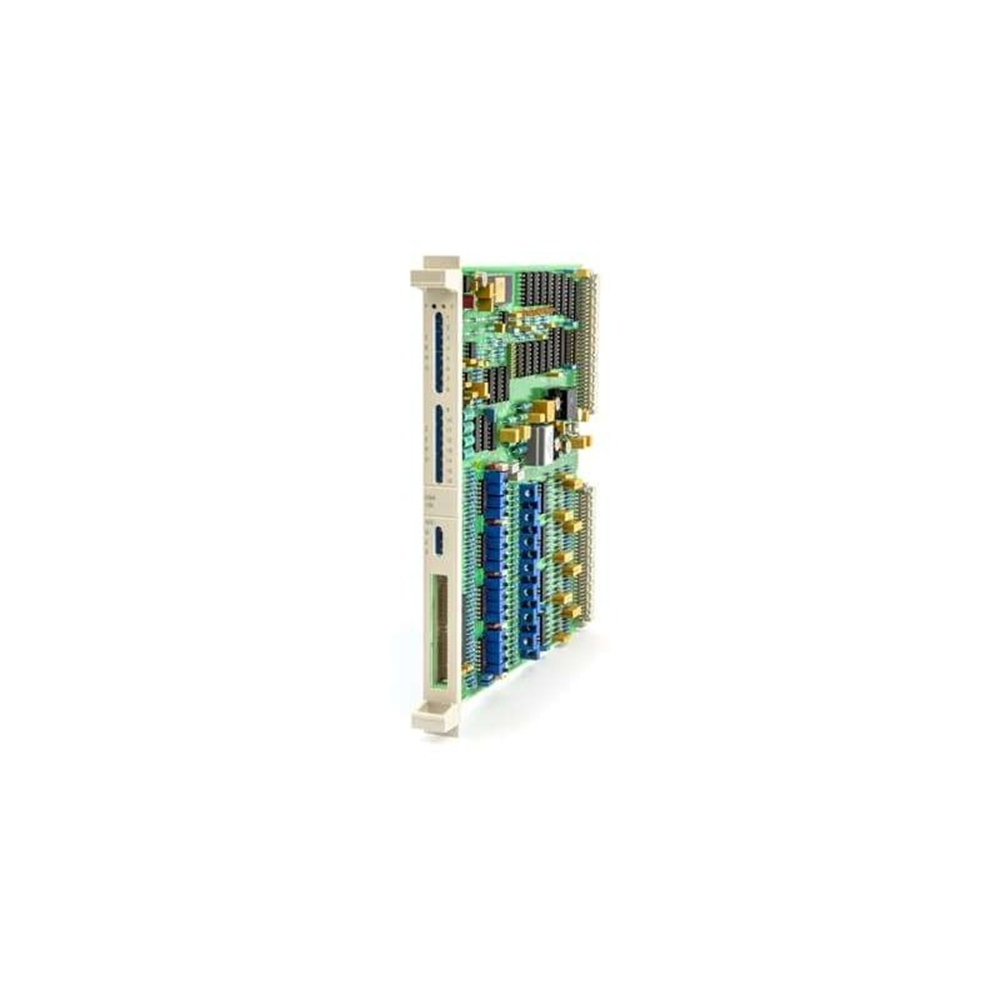

ABB DSAI-130 57120001-P Analog Input Board

 Overview, Features, and Specifications

The ABB DSAI-130 (57120001-P) Analog Input Board is an advanced solution for industrial automation systems, designed specifically for Safeguard safety controllers and MasterPiece 2×0 systems. It provides a robust and highly accurate method of reading analog signals, offering 16 differential input channels with exceptional accuracy of 0.025%. This board is suitable for environments where CMV >50V, and for standard process controllers (MP200/1, AC410/AC450/AC460) with CMV ≤50V, the DSAI 130A (3BSE018292R1) version should be used.

Technical Specifications

• Brand: ABB
• Model: DSAI-130
• Product ID: 57120001-P
• Type: Analog Input Board (I-O_Module)
• Input Types: Differential Input (+/-10V, +/-20mA)
• Channels: 16 AI channels
• Accuracy: 0.025%
• Application: Best suited for safety controllers and process controllers where CMV conditions require high precision.
• RoHS Compliance: Exempt from the scope of EU Directive 2011/65/EU.
• WEEE Category: Small Equipment (No external dimension greater than 50 cm).
• Dimensions:
  • Length: 327.6 mm
  • Width: 236.7 mm
  • Height: 14.4 mm
• Weight: 0.52 kg
• Batteries: None required

FAQs

1. What is the difference between DSAI130 and DSAI130A?
The DSAI130A (3BSE018292R1) is a revitalized version of the DSAI130, specifically designed for standard process controllers like MP200/1, AC410, AC450, and AC460 when CMV ≤50V. The original DSAI130 (57120001-P) is intended for Safeguard safety controllers and systems with CMV >50V.

2. Is the DSAI 130 compliant with RoHS?
The DSAI130 is exempt from the RoHS requirements based on the exemptions provided under Article 2(4)(c), (e), (f), and (j) of the 2011/65/EU directive.

3. What controllers are compatible with the DSAI130?
The DSAI130 is specifically designed for use with Safeguard safety controllers, MasterPiece 2×0 systems, and process controllers with CMV >50V. For systems with CMV ≤50V, the DSAI 130A is recommended.

4. What should I specify when ordering the DSAI130?
When ordering the DSAI130 (57120001-P), the hardware license number of the installed controller must be provided.

For more detailed information, please check official datasheet:abb-dsai-130-57120001-p-analog-input-board
