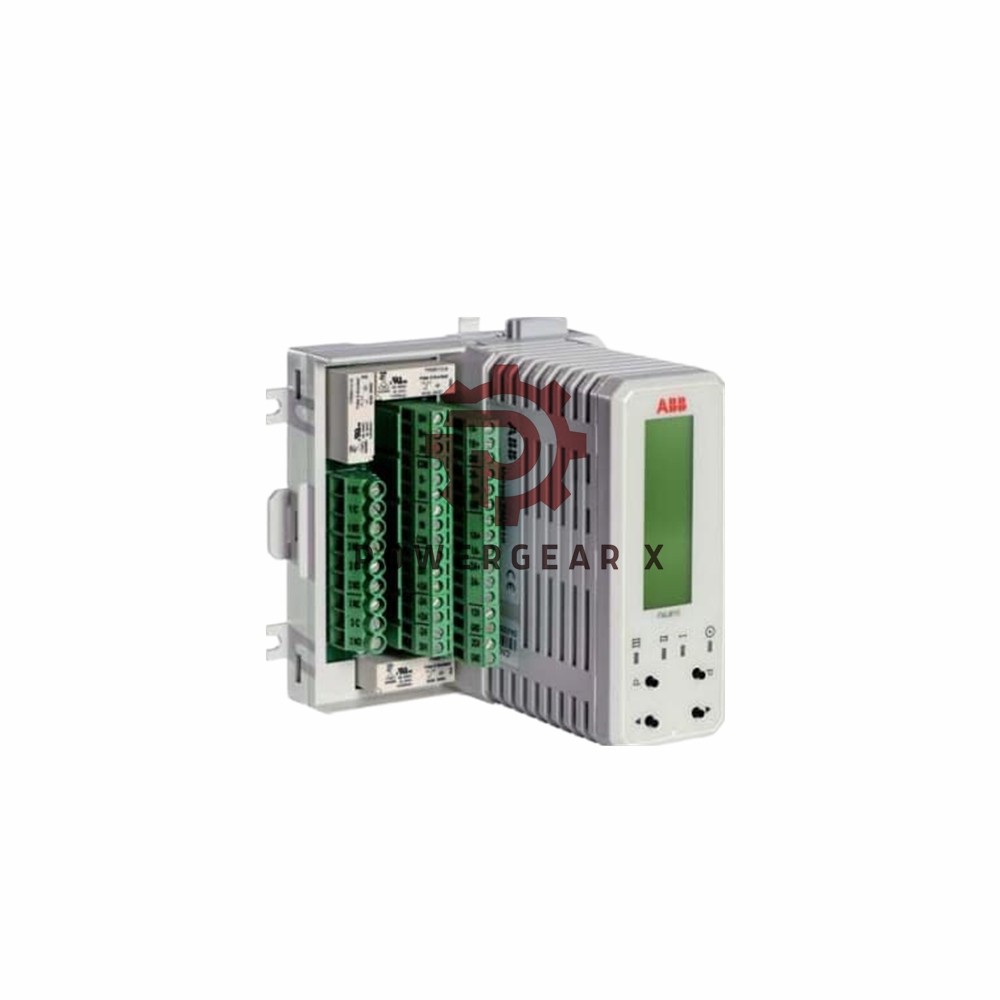

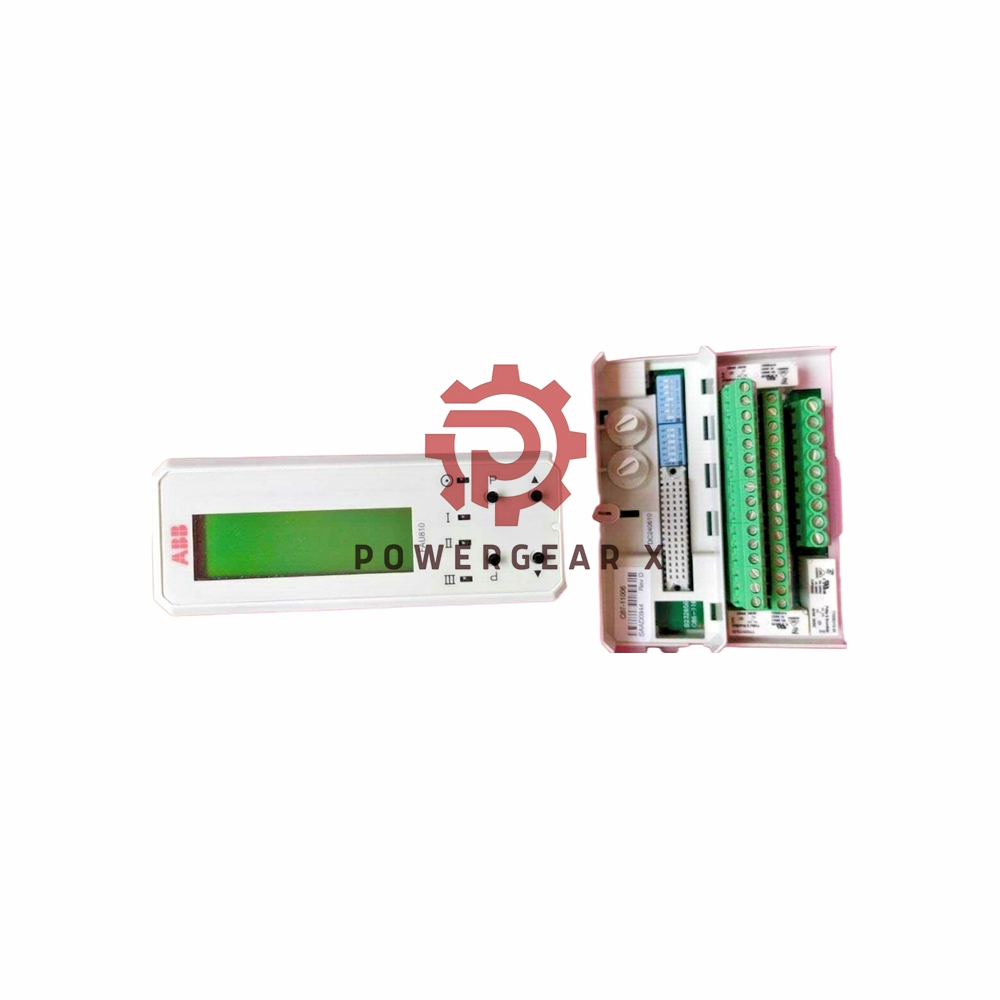

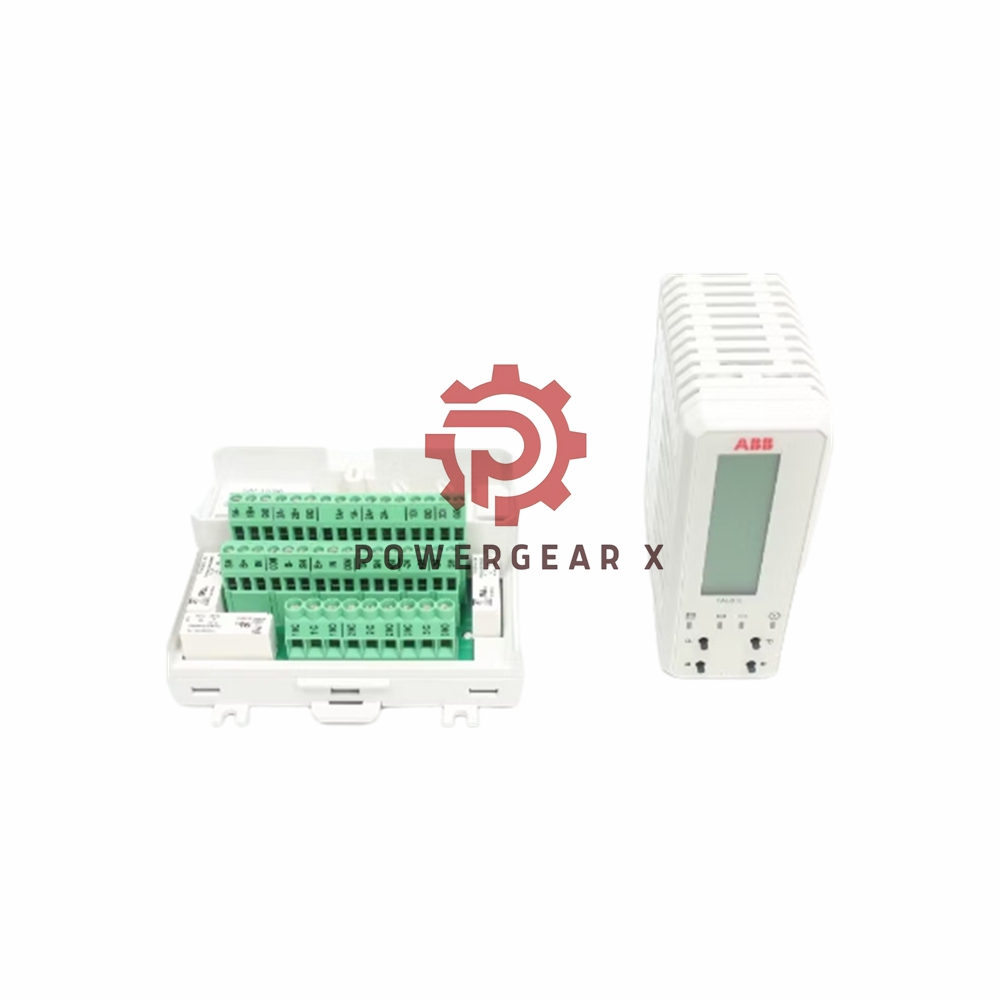

ABB FAU-810 Flame Analysis Unit C10-12010

Overview

The ABB FAU-810 Flame Analysis Unit is a dual-channel system designed to monitor and process signals from various flame detectors. It supports configurations of SF810 flame scanner heads, DFS flame scanner heads, or Flame Rods for ionic flame monitoring. Each channel is independently configurable and can be controlled via its pushbuttons, the Flame Explorer software, or Profibus.

Key Features:

• Dual independent channels for flame detection with versatile detector compatibility.
• Configurable for various types of flame detectors, including SF810 and DFS flame scanners.
• Supports both standard and redundant 24VDC power supply options.
• Built-in diode auctioneering for power isolation.
• Digital input channels for remote parameter switching per sensor.
• Firmware can be upgraded on-site via the proprietary Firmware Download Utility.
• Two 4-20 mA analog outputs for real-time flame monitoring (intensity, frequency, quality, or AC amplitude).

Technical Specifications:

• Brand: ABB
• Model: FAU-810
• Order Code: C10-12010
• Relay Outputs: Three total Form C contacts (Flame #1, Flame #2, Fault)
• Flame Relay Contact Ratings: 250 VAC, 3A, 750 VA; 220VDC, 300mA, 66W
• Fault Relay Contact Ratings: 250 VAC, 3A, 750 VA; 220VDC, 300mA, 66W
• Analog Flame Signal Outputs: Two channels, 4-20 mA each, for intensity, frequency, quality, or AC amplitude
• Communication: Two RS-485 interfaces, galvanically isolated, supporting MODBUS (default) and PROFIBUS DP-V1
• Power Supply: 24 VDC (-25%, +20% = 18-29VDC)
• Power Consumption: Min 4W, Max 10W, Typical 6W
• Ambient Temperature Range: 0°C to 60°C (32°F to 140°F)
• Dimensions: 13 cm height, 12 cm length, 11 cm width
• Mounting: DIN Rail

FAQ:

1. Can the FAU810 be upgraded with new features?
   • Yes, the FAU810 supports on-site firmware upgrades via the Firmware Download Utility.
2. What types of detectors can be used with the FAU810?
   • The FAU810 supports SF810 and DFS flame scanner heads, as well as Flame Rods for ionic flame monitoring.
3. What is the maximum distance between the scanner and the FAU810?
   • The maximum distance is 500 meters (1500 feet) when using SF810 scanners.
4. How is the FAU810 configured?
   • Configuration can be done locally via pushbuttons or remotely via the Flame Explorer software or Profibus.
