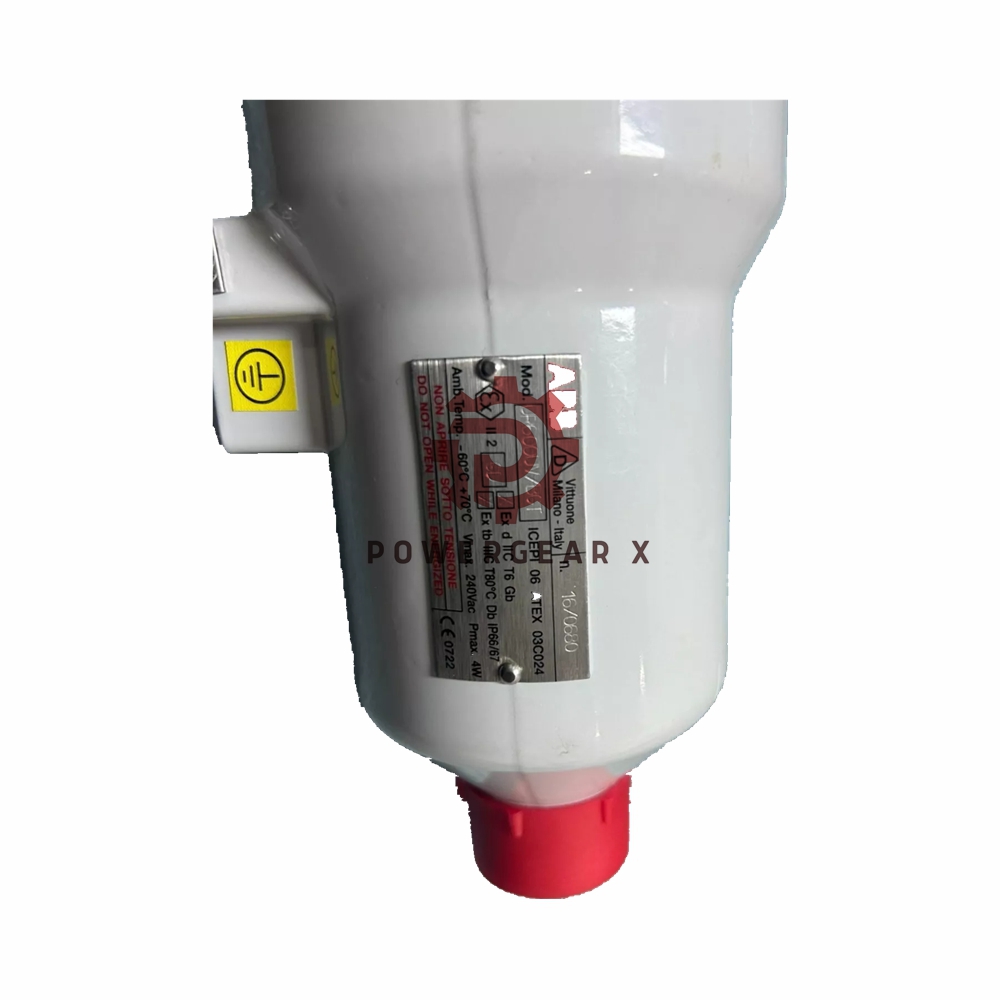

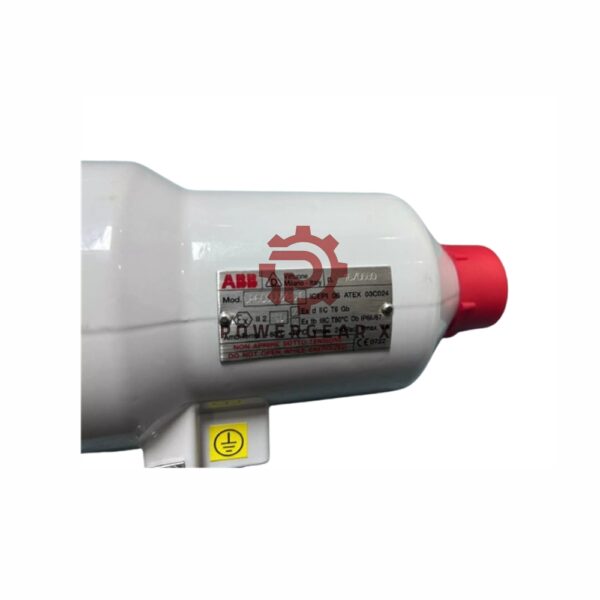

ABB Flame Sensor UR600-IR Mod. 1000

Overview

The ABB Flame Sensor UR600-IR Mod. 1000 is a self-checking flame detector designed for industrial and utility boilers. It excels in detecting flames from atomized oil and pulverized coal, providing robust performance with high sensitivity to the infrared spectrum. Its advanced algorithm ensures precise target flame detection while discriminating against background or adjacent burner flames.

Features

• Advanced Detection: Equipped with PbS (Lead Sulphide) sensors, sensitive to a spectrum range of 0.6 to 3 µm.
• Multiple Configurations: Available for direct view or fiber optic installation with cooling and fitting accessories.
• Durable Construction: IP66 (NEMA 4X) rated enclosure with EEx-d IIC T6 classification for hazardous areas.
• Compatibility: Works seamlessly with ABB Uvisor series amplifier units.
• Lens Cleaning System: Air cleaning options for various applications ensure continuous operation in high-contaminant environments.

Technical Specifications

• Brand: ABB
• Model: UR600 IR Mod. 1000
• Sensor Type: PbS (Lead Sulphide)
• Spectrum Sensitivity: 0.6 to 3 µm
• Power Consumption: 300 mW DC (supplied by Uvisor control units)
• Ambient Temperature:
  • Operating: -10 to 80°C (14 to 176°F)
  • T6 Classified Area: Max 60°C (140°F)
  • Storage: -40 to 100°C (-40 to 212°F)
• Enclosure: IP66, NEMA 4X
• Fiber Optic Max. Operating Temp: 350°C (662°F)
• Lens Cleaning Air Flow:
  • Direct view: 115–400 l/min (4–14 SCFM)
  • Extended probe: 400 l/min (14 SCFM)
• Mounting Connection: 1″ NPT male thread
• Cable Entry: 1/2″ NPT female thread
• Electrical Connections: 4 x 0.55 sq.mm shielded cable, max 300 meters.

FAQ

Q: What type of control unit is compatible with UR600 IR Mod. 1000?
A: It is compatible with ABB Uvisor series amplifier units.

Q: What is the maximum recommended cable length for connection?
A: The recommended cable length is up to 300 meters (1000 feet).

Q: Can it operate in high-temperature environments?
A: Yes, the fiber optic probe can withstand continuous temperatures up to 350°C (662°F).

Q: What approvals does the UR600 IR hold?
A: CE and ATEX certifications, with FM and CSA approvals in progress.

Check official datasheet for more detailed information:UR600 IR Data Sheet EC-DOC-G009DS101-A
