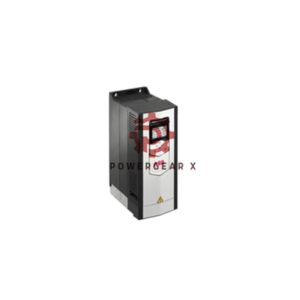

ABB Frequency Converter Inverter ACS880-01-12A6-3

Overview

The ABB ACS880-01-12A6-3 is a robust, wall-mounted low-voltage AC drive designed for industrial applications requiring precise motor control.

Key Features

• Model & Brand: ABB ACS880-01-12A6-3
• Output Power: 5.5 kW (Normal & Light-Overload), 4.0 kW (Heavy-Duty)
• Output Current: Up to 12.9 A (Normal use)
• Voltage Range: 380–415 V (Input)
• Protection Class: IP21 / NEMA Type 1
• Enclosure Options: Wall-mounted or cabinet installation
• Efficiency: High efficiency up to 96.9% at specific load conditions
• Humidity & Temperature: Operates in 5–95% RH and up to 40°C
• Standards: Complies with IEC and ETIM classifications

Technical Details

• Frame Size: R1
• Frequency Range: 47.5–63 Hz
• Digital I/O: 6 inputs, 2 outputs
• Analog I/O: 2 inputs, 2 outputs
• Sound Level: 50 dB(A)
• Battery: Includes 2 x CR2032 lithium batteries

FAQs

1. What is the primary function of the ACS880-01 drive?
It provides precise motor control for various industrial and utility applications.

2. Can it be installed outdoors?
Yes, with an IP55 enclosure option for outdoor use.

3. Is it compatible with custom automation systems?
Yes, it supports protocols like PROFINET IO and can integrate seamlessly into automation networks.

4. What safety features are included?
Functional safety options like safe torque off (STO) are available for enhanced protection.

For more detailed information, please check official datasheet: 3AUA0000107990
